5. ETHERNET CONNECTION
5.4 PLC Side Setting
5 - 21
5
ETHERNET CONNECTION

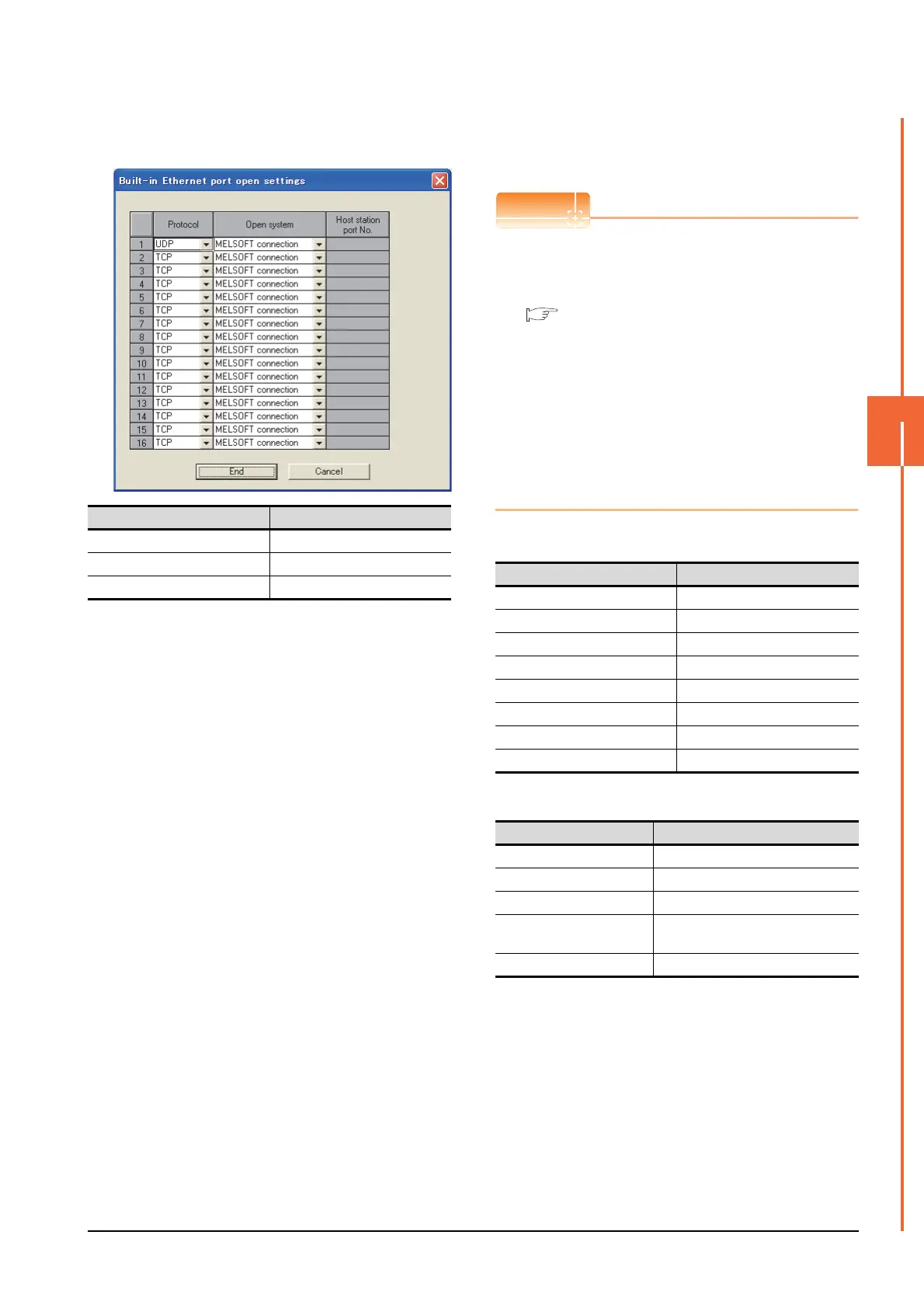

(2) Open settings
The setting is required for all the connected GOTs.
[Controller Setting] and [Ethernet] of GT
Designer3
(3) [Controller Setting] and [Ethernet] of GT
Designer3
For [Controller Setting] and [Ethernet] of GT
Designer3, refer to the following.
5.3.1 Setting communication interface
(Communication settings)
(4) Ethernet setting
When connecting Built-in Ethernet port CPU to a
GOT, the settings items for the network No. and
station No. do not exist at the PLC side. However,
these virtual values must be set on the GOT side.
Therefore, set the network No. and station No.
Set the network No. that is not existed on the
network system and any station No..
(1) Controller setting
(2) GOT Ethernet setting
Item Set value
Protocol UDP (fixed)
Open system MELSOFT connection (fixed)
Host station port No. (Use default value)
Item Set value (Use default value)
GOT Net No. 1
GOT Station 1
GOT Ethernet Setting 192.168.3.18
GOT Communication Port No. 5002
Retry 3times
Startup Time 3sec
Timeout Time 3sec
Delay Time 0ms
Item Set value (Use default value)
GOT IP Address 192.168.3.18
Subnet Mask 255.255.255.0
Default Gateway 0.0.0.0
Peripheral Communication
Port No.
5015
Transparent Port No. 5014
