Mitsubishi GOT2000 Series Connection Manual

5 - 24
5. ETHERNET CONNECTION
5.4 PLC Side Setting

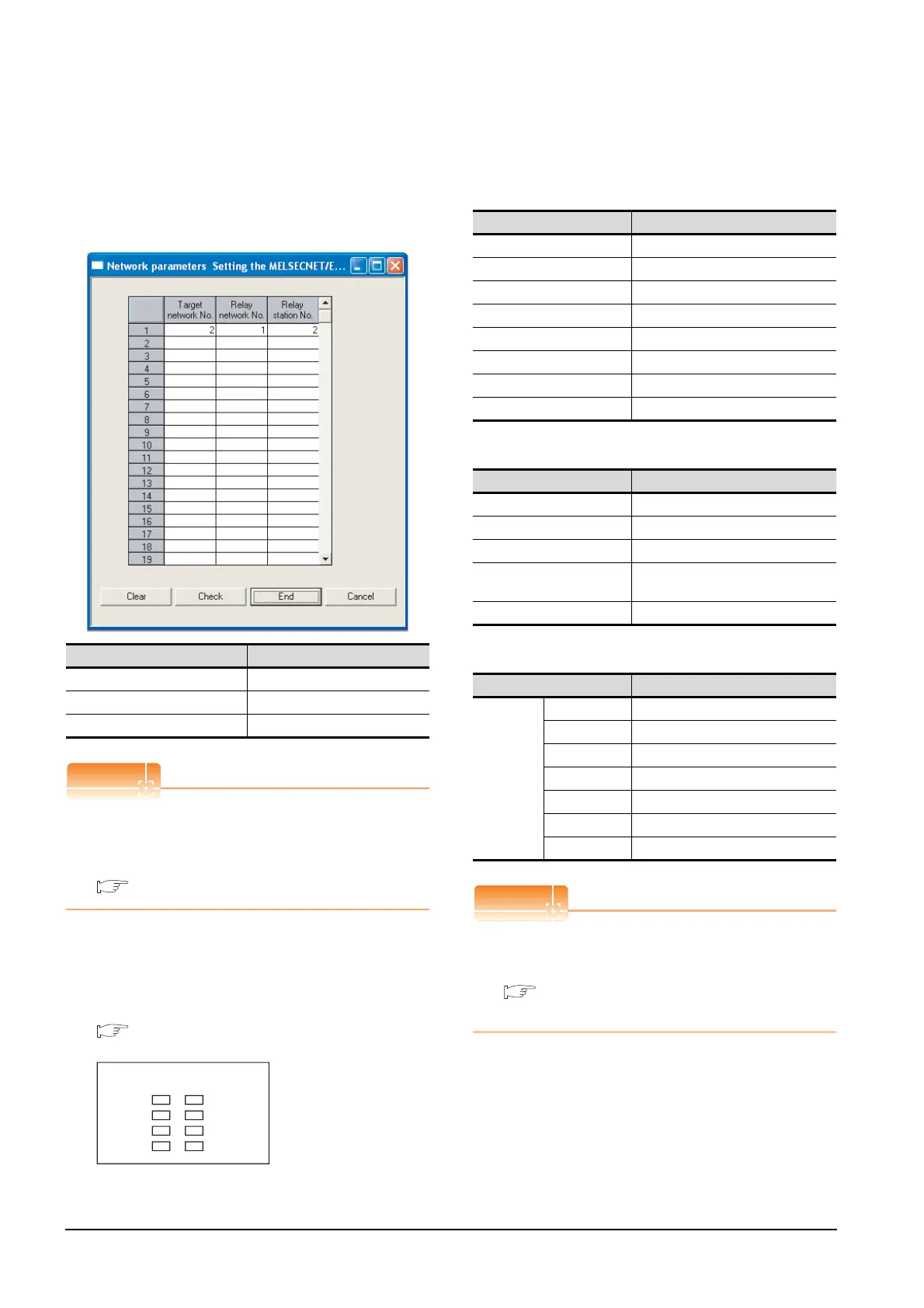

(3) Routing parameter setting
Up to 64 [Transfer Network No.]s can be set.
However, the same transfer network number cannot be
set twice or more (multiple times).
Therefore, the one that can access to other station from
the request source host GOT is 64 kinds of [Transfer
Network No.]s.
POINTPOINTPOINT
Routing parameter setting of request source
Routing parameter setting is also necessary for the
request source GOT.
For the setting, refer to the following.
5.3.5 Routing parameter setting
(4) Communication confirmation
The INIT. LED on the Ethernet module turns on when
the module is ready to communicate.
For confirming the communication state, refer to the
following.
■Confirming the communication state of
Ethernet module
*1 The LEDs layout of QJ71E71-100.
 [Controller Setting] and [Ethernet] of GT
Designer3
(1) Controller setting
(2) GOT Ethernet setting
(3) Ethernet setting
POINTPOINTPOINT
[Controller Setting] and [Ethernet] of GT Designer3
For [Controller Setting] and [Ethernet] of GT
Designer3, refer to the following.
5.3.1 Setting communication interface
(Communication settings)
Item Range
Target network No. 1 to 239
Relay network No. 1 to239
Relay station No. 1 to 64
QJ71E71-100
RUN
INIT.
OPEN
SD
ERR.
COM.ERR.
RD
100M
*1
Item Set value (Use default value)
GOT Net No. 1
GOT Station 1
GOT Ethernet Setting 192.168.3.18
GOT Communication Port No. 5002
Retry 3times
Startup Time 3sec
Timeout Time 3sec
Delay Time 0ms
Item Set value (Use default value)
GOT IP Address 192.168.3.18
Subnet Mask 255.255.255.0
Default Gateway 0.0.0.0
Peripheral Communication
Port No.
5015
Transparent Port No. 5014
Item Set value
Ethernet
setting No.1
Host *
N/W No. 1
PLC No. 2
Type QJ71E71
IP address 192.168.3.39
Port No. 5001 (fixed)
Communication UDP (fixed)
