9. MELSECNET/H CONNECTION (PLC TO PLC NETWORK), MELSECNET/10 CONNECTION (PLC TO
PLC NETWORK)

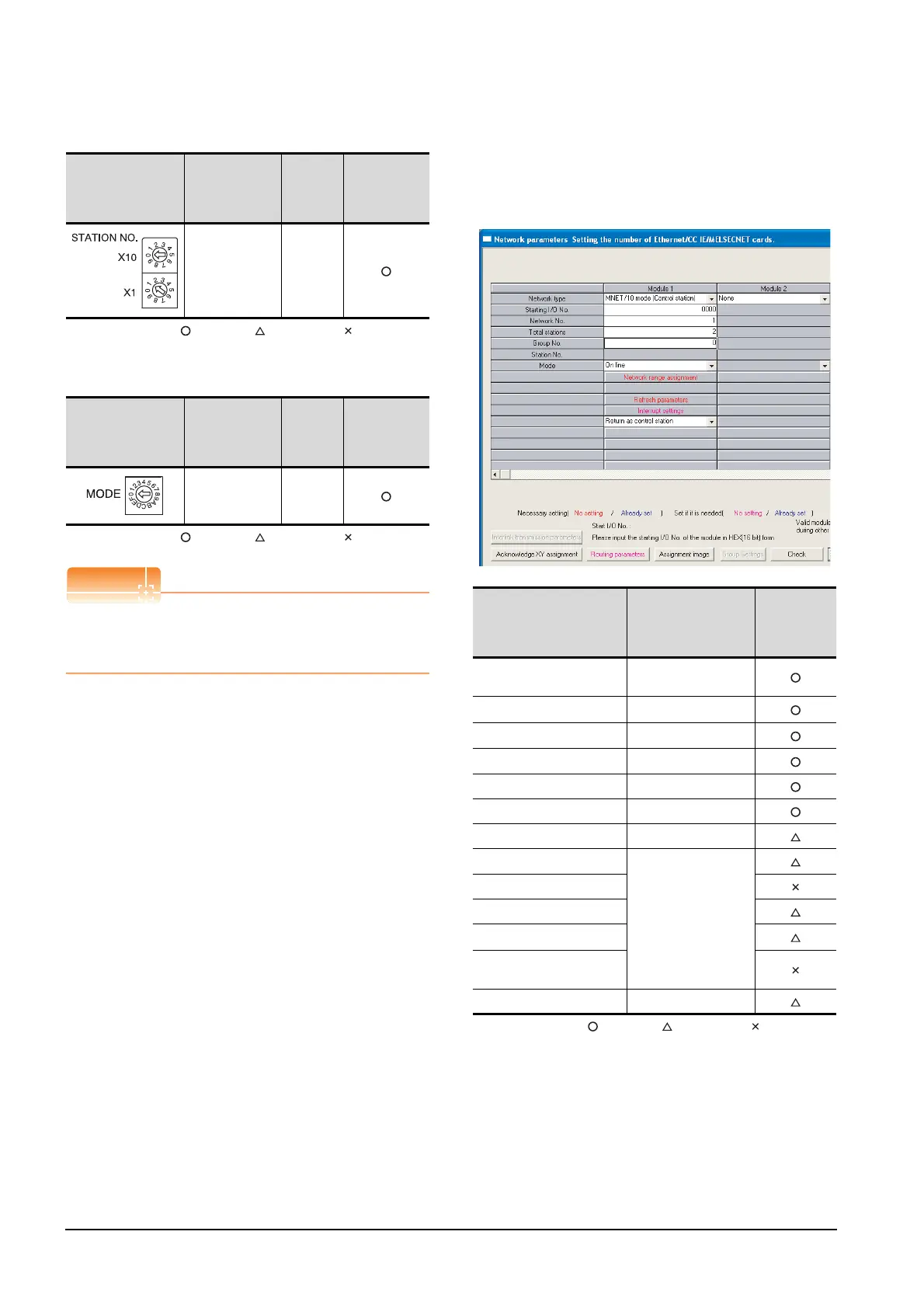

(1) Station number setting switch
: Necessary : As necessary : Not necessary
*1 Do not set the same station No. as that of the GOT.
(2) Mode setting switch
: Necessary : As necessary : Not necessary
When the switch setting has been changed
Turn the PLC CPU OFF then ON again, or reset the
PLC CPU.
Parameter setting (when connecting to
MELSEC-Q or QS series)
(1) [Network parameter] of GX Developer
(a) Network parameter
: Necessary : As necessary : Not necessary
*1 When using Q170MCPU, set it according to the system
configuration.
*2 Specify the same network No. as that of the GOT.
*3 Set it when the MELSECNET/H network module is used in
the redundant QnPRHCPU system.
Station number
setting switch
Description Set value
Setting
necessity
at GOT
connection
Station number
setting
(Station No.1)
*1
1
Mode setting switch Description Set value
Setting
necessity
at GOT
connection
Mode setting
(Online: 10Mbps)
0 (fixed)
Item Set value
Setting
necessity at
GOT
connection
Network type
MNET/10 mode
(Control station) (fixed)
Starting I/O No.
*1
0000H
Network No.
*2
1
Total stations 2
Group No. 0 (fixed)
Mode Online (fixed)
Network range assignment Refer to (b)
Refresh parameters
(Use default value)
Interrupt settings
Control station return setting
Redundant settings
*3
Interlink transmission
parameters
Routing parameters Refer to (c)
