12. CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
12.4 PLC Side Setting
 Parameter setting (when connecting to C
Controller module)
Use SW3PVC-CCPU-E Ver.3.05F or later for the CC-
Link utility.

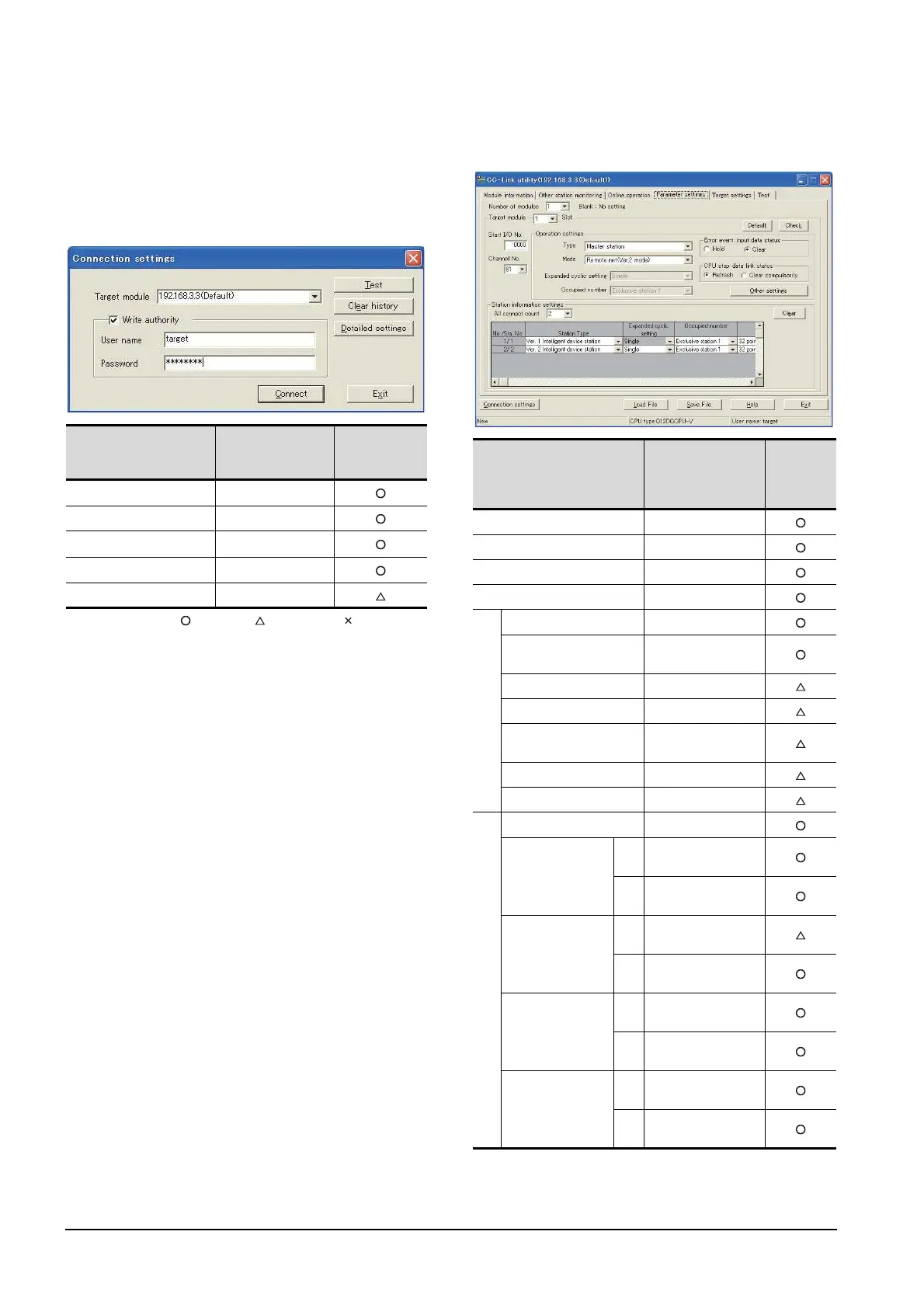

(1) Connection settings
: Necessary : As necessary : Not necessary
*1 If the IP address of the C Controller module has been
changed, input the changed IP address or host name.
*2 If the account of the C Controller module has been changed,
input the changed user name and password.
(2) CC-Link Utility's [Parameter Settings]
(a) Parameter settings
Item Set value
Setting
necessity at
GOT connection
Target module
*1
192.168.3.3 (Default)
Write authority Mark the checkbox
User name
*2
target
Password
*2
password
Detailed settings -
Item
*1
Set value
Setting
necessity at
GOT
connection
Number of modules 1
Target module 1
Start I/O No. 0000
H
Channel No. (Use default value)
Operation settings
Type Master station
Mode
Remote net
(Ver.2 mode)
Expanded cyclic setting Single
Occupied number Exclusive station 1
Error event: input data
status
Clear
CPU stop: data link status Refresh
Other settings (Use default value)
Station information settings
All connect count 2
Station Type
Sta.
No.1
Ver.1 intelligent device
station
Sta.
No.2
Ver.2 intelligent device
station
Expanded cyclic
setting
*2
Sta.
No.1
Single
Sta.
No.2
Single
Occupied number
*2
Sta.
No.1
Exclusive station 1
Sta.
No.2
Exclusive station 1
Remote station points
Sta.
No.1
32 points
Sta.
No.2
32 points
