12. CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
12.4 PLC Side Setting

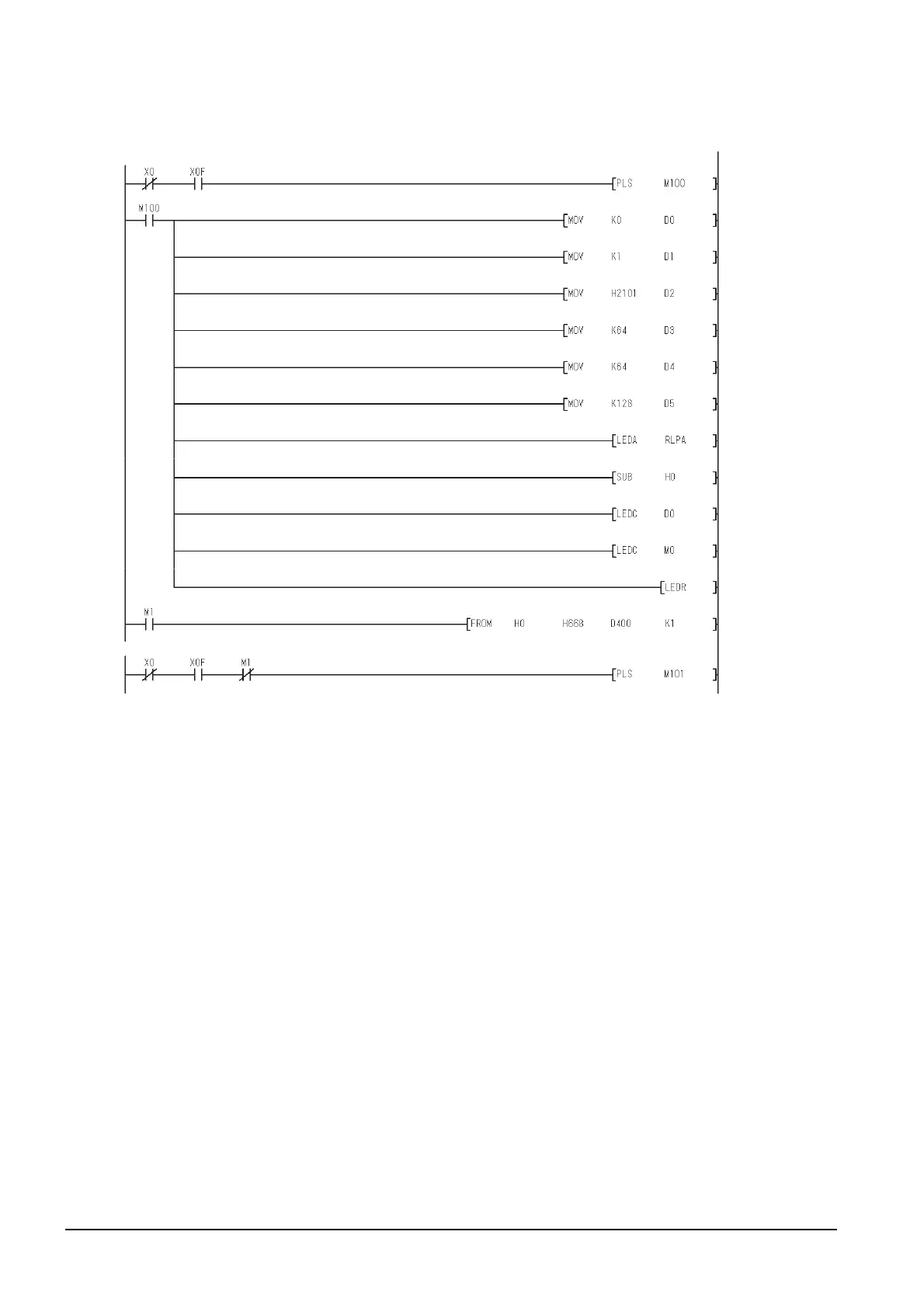

(c) Example of sequence program (CC-Link dedicated instruction)
(Continued to next page)
* Setting of network parameter with dedicated RLPA instruction
* Setting of automatic refresh parameter with dedicated RRPA instruction
Module
ready
Module error
Module
ready
RLPA error
completion
Module
error
RLPA error completion
Synchronous mode
(Invalid)
Number of connected
modules (1 module)
Send buffer size
(64 words)
Receive buffer size
(64 words)
Automatic update buffer
size (128 words)
CC-Link module head
I/O No. (0000
H)
Parameter storage
head device (D0)
Turning on during 1 scan
in the case of instruction
completion ON (M0)
Error code reading
(SW0068)
Dedicated
instruction (RLPA)
Station data (intelligent
device station, exclusive
station 1, station No.1)

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
