1 - 26

1. PREPARATORY PROCEDURES FOR MONITORING

1.6 Checking for Normal Monitoring

 Perform an I/O check

Whether the PLC can communicate with the GOT or not can be checked by the I/O check function.

If this check ends successfully, it means correct communication interface settings and proper cable connection.

Display the I/O check screen by Main Menu.

• Display the I/O check screen by [Maintenance] [I/O check].

For details on the I/O check, refer to the following manual:

GOT2000 Series User's Manual (Utility)

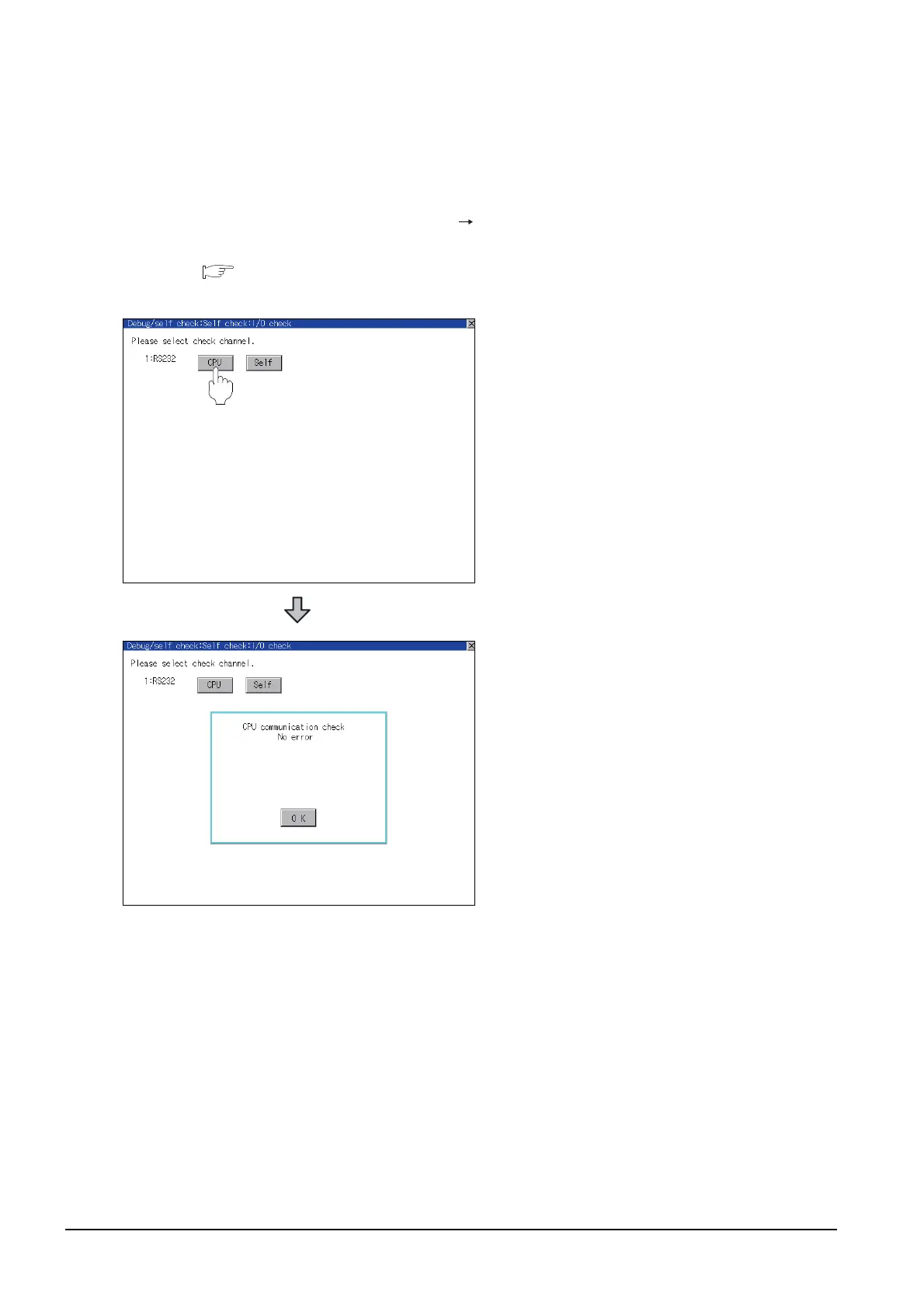

1. Touch [CPU] on the I/O check screen.

Touching [CPU] executes the communication

check with the connected PLC.

2. When the communication screen ends

successfully, the screen on the left is displayed.
