20. FA TRANSPARENT FUNCTION
20.6 Personal Computer Side Setting

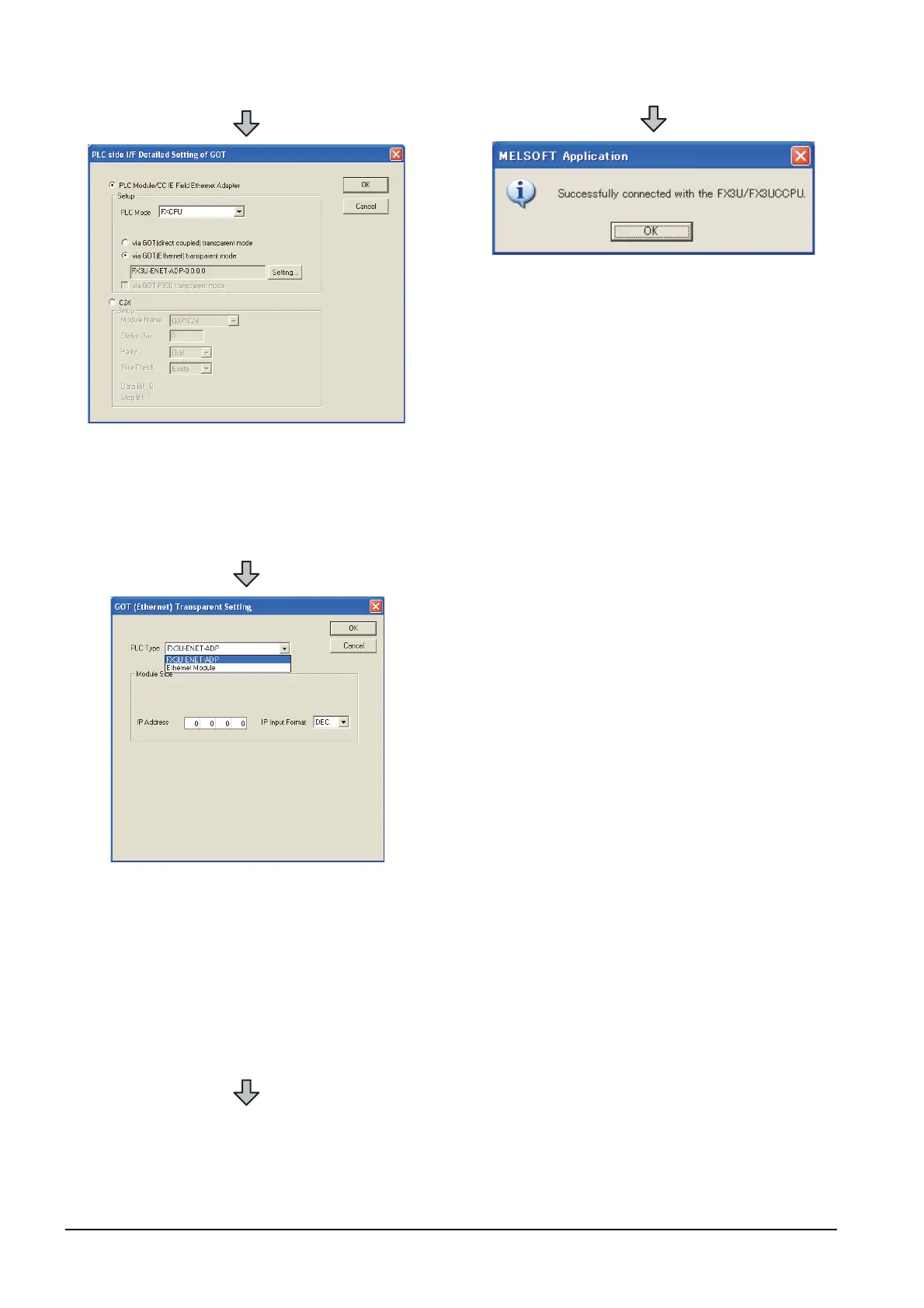

6. Double-click [GOT] of the PLC side I/F to display
[PLC side I/F Detailed Setting of GOT].
7. On the [PLC side I/F Detailed Setting of GOT], mark
the [via GOT(Ethernet) transparent mode] checkbox
and click [Setting...].
8. By clicking [Set], the [GOT (Ethernet) transparent
setting] is displayed.
Here, set the [FX3U-ENET-ADP] or [Ethernet
Module], which is connected via a GOT.
9. Set [FX3U-ENET-ADP] or [Ethernet Module] for [PLC
Type].
10.Specify the IP address for [IP address] same as the
IP address assigned to the [FX3U-ENET-ADP] or
[Ethernet Module].
11. The screen returns to [Transfer Setup]. Click
[Connection Test] to check if GX Works2 has been
connected to the FXCPU.
