3. ACCESS RANGE FOR MONITORING
3.1 Access Range for Monitoring Stations on Network Systems
3 - 7
3
ACCESS RANGE FOR MONITORING
Monitor accessible range of other stations and setting method of monitor devices

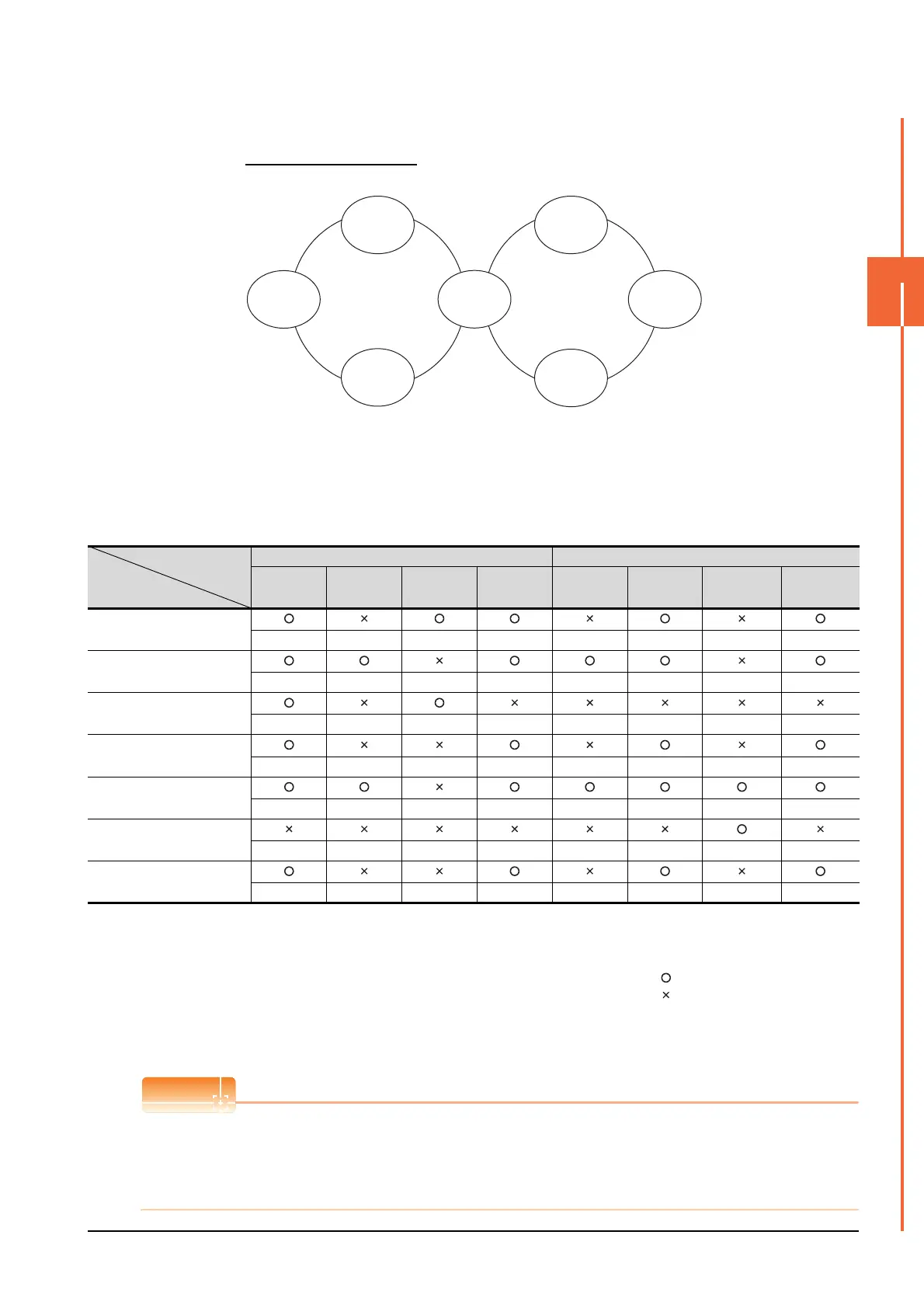

Example 1: When using bus connection
• Monitor accessible range of devices (other than B or W) of other stations or other networks
Specify the accessing network No. or station as shown in the following table.
(1) To monitor B or W of the connected station (host station) assigned with a network parameter, specify the host
station.
(2) To monitor another station (other than B or W) or another network, specify the station (network No. and station
No.).
Monitoring link device B or W
For monitoring devices B and W that are allocated by the link parameter, use the host device number even when
designating devices allocated to another station.
Otherwise, the display speed will be reduced.
Station to be accessed
Station
connected to GOT
Network No.1 Network No.2
AnU (1-1) QnA (1-2) AnA (1-3) AnU (1-4) QnA (2-1) AnU (2-2) AnN (2-3) AnU (2-4)
AnU (1-1)
Host ── Other (1-3) Other (1-4) ── Other (2-2) ── Other (2-4)
QnA (1-2)
Other (1-1) Host ── Other (1-4) Other (2-1) Other (2-2) ── Other (2-4)
AnA (1-3)
Other (0-0) ── Host ── ── ── ── ──
AnU
(1-4)
(2-2) Other (1-1) ── ── Host ── Host ── Other (2-4)
QnA (2-1)
Other (1-1) Other (1-2) ── Other (1-4) Host Other (2-2) Other (2-3) Other (2-4)
AnN (2-3)
── ── ── ── ── ── Host ──
AnU (2-4)
Other (1-1) ── ── Other (1-4) ── Other (2-2) ── Host
How to read the table
Upper line: Accessibility
: Accessible
: Not accessible
Lower line: Network settings
Host
Other (Network No. - Station number)
Control station Control station
AnU
(1-1)
QnA
(2-1)
AnN
(2-3)
AnU
(1-4)
(2-2)
AnA
(1-3)
Network No.1 Network No.2
QnA
(1-2)
(2-4)
AnU
