Mitsubishi GOT2000 Series Connection Manual

3 - 12
3. ACCESS RANGE FOR MONITORING
3.1 Access Range for Monitoring Stations on Network Systems
Example 6: When using CC-Link connection (intelligent device station) /CC-Link connection (via G4)
: Accessible : Not accessible
Station to be accessed
Station
connected to GOT
QnA
(1-1)
Q (Q mode)
(1-2)
AnA
(1-3)
AnN
(1-4)
QnA (1-1)
Q(Q mode) (1-2)
AnA (1-3)
AnN (1-4)
Network module
(1-2)
CC-Link Master
module (0 station)
Network
System
CC-Link System
Q(Q mode
)
(1-2)
A
nA
(1-3)
QnA
(1-1)
AnN
(1-4)
GOTGOT
GOT
GOT

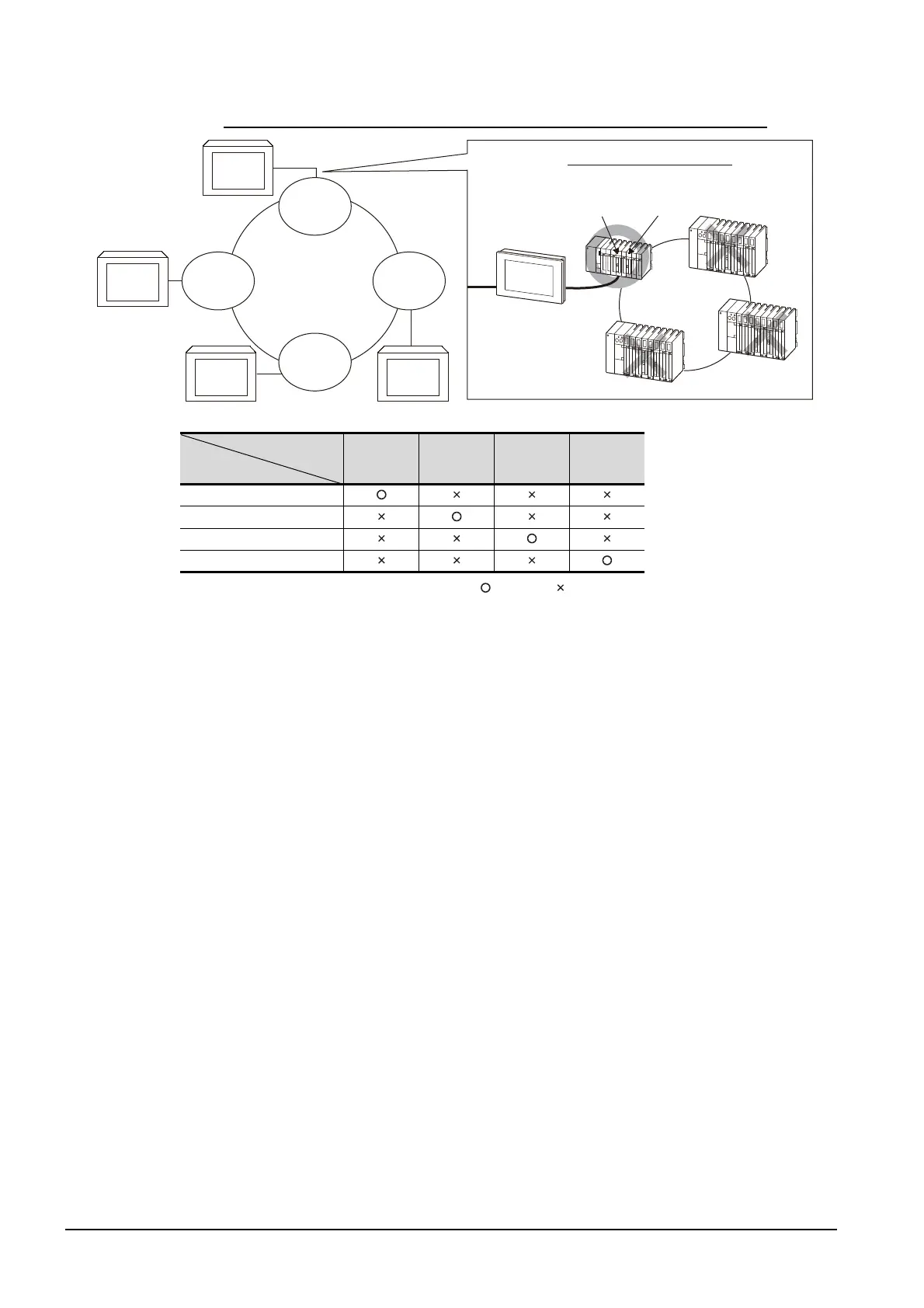

Image of CC-Link Connection

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
