ValueJet 1304　Service manual
AP-74109 Rev 1.1 4-54
2.
Pull out the CR_HP cable assembly connector from the CR_HP sensor.
3. Release the hook retaining the CR_HP sensor, then remove the CR_HP sensor.
4. Replace the CR_HP sensor.
5. To reassemble the unit, reverse the removal procedure.
6. Perform adjustments by following the instructions in "7.2 Adjustment Item" p.7-3.

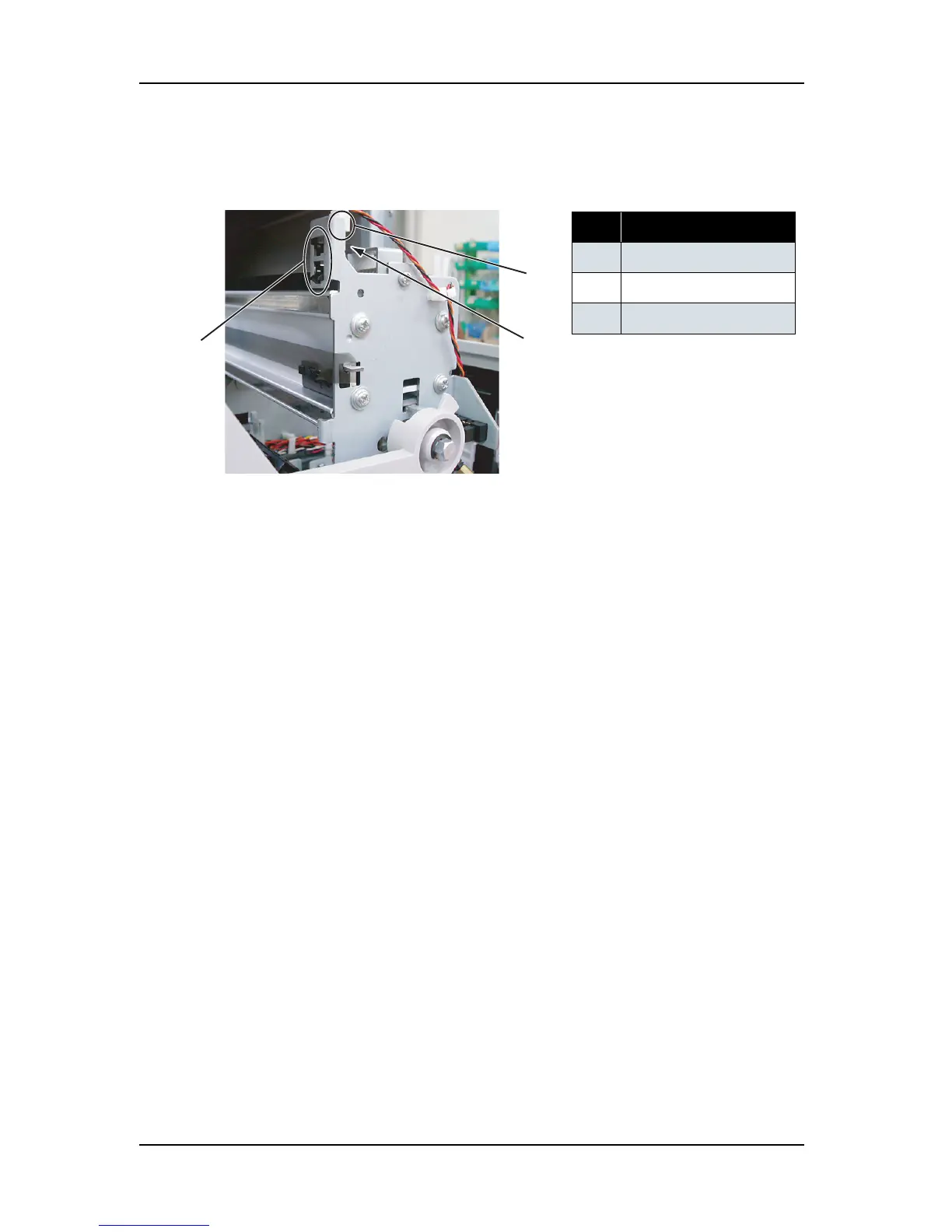

表 4-62
No. Part name
1 Hook
2
CR_HP sensor
3
Connector
1
2
3
