4.3.8 Replacing Inlet Assembly
NOTE
Before replacing the inlet assembly, remove the following parts.
• Media guide R2: "4.2.8 Removing Media Guide R2" p.4-17

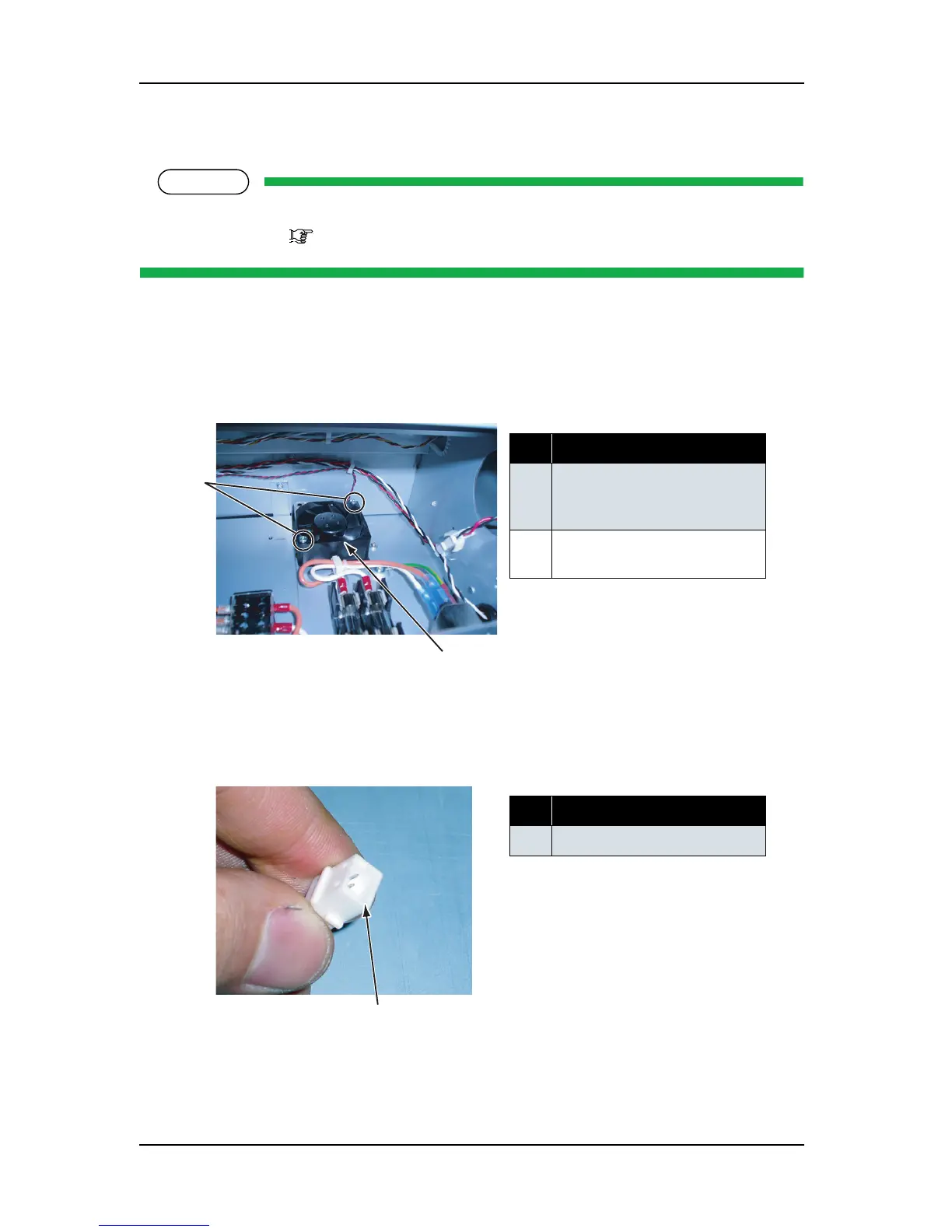

(1) Removing Cooling Fan (24V)
1. Remove the screw retaining the cooling fan (24V) (pan head small screw M 4 × 30: 2).
2. Remove the cooling fan (24V) cable connector.
3. Replace the cooling fan.
4. To reassemble the unit, reverse the removal procedure.
表 4-46
No. Part name
1 Cooling fan (24V) screw
(pan head small screw M 4
×
30)
2
Cooling fan (24V)
表 4-47
No. Part name
1 Cooling fan (24V) connector
1
2
1
