ValueJet 1304 Service manual
4-53 AP-74109 Rev 1.1
6. Remove the screws retaining the CR motor assembly to the CR motor mounting material (cup screw M4
× 8: 4).
7. Replace the CR motor assembly.
8. To reassemble the unit, reverse the removal procedure.
9. Perform adjustments by following the instructions in "7.2 Adjustment Item" p.7-3.
4.5.2 Replacing CR Origin Point Sensor
NOTE
Before replacing parts in the CR_HP sensor assembly, remove the R side cover.
• R side cover: "4.2.1 Removing R Side Cover" p.4-6
1. Release the CR locker by pushing it with your finger, then move the carriage from the capping position
to the left.

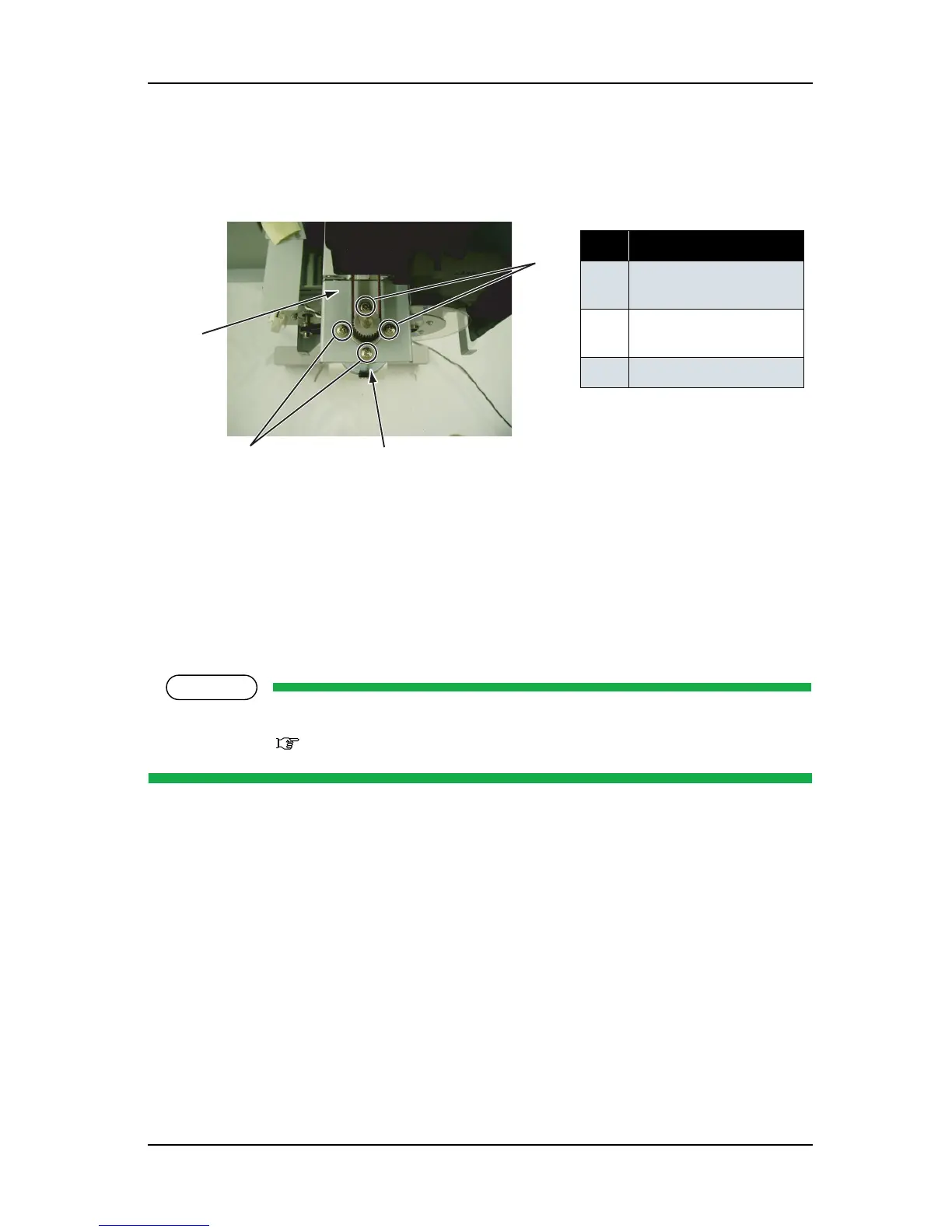

表 4-61
No. Part name
1 CR motor mounting
material
2
CR motor screw
(
cup screw M4 × 8 )
3
CR motor
2
1
2
3
