ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-110

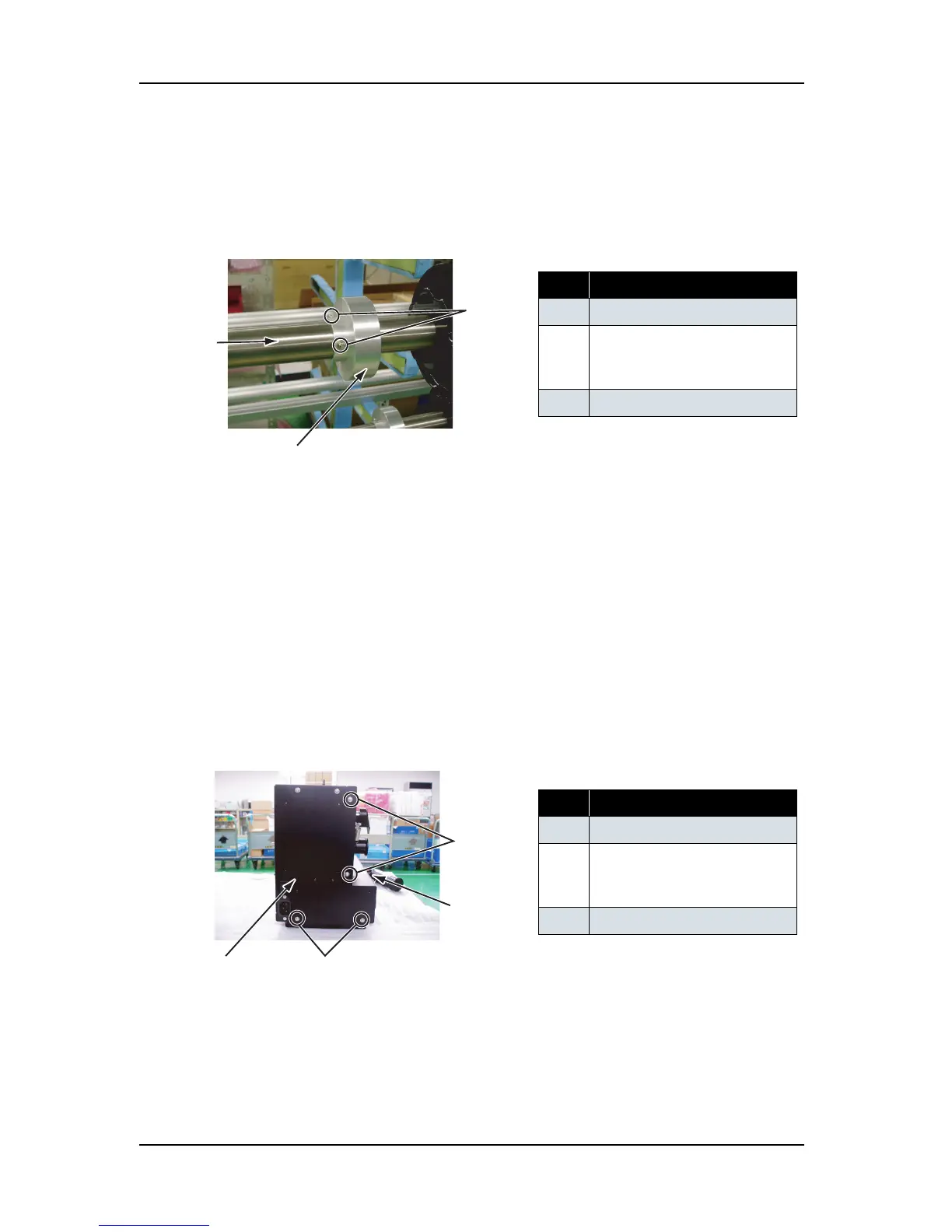

(3) Replacing Drive Collar
1. Remove the screws (round head spring screw M3 × 8: 2 pieces) that retain the drive collar on the take up
unit scroller (left).
2. Remove the drive collar.
3. To reassemble the unit, reverse the removal procedure.
4.12.5 Replacing VJ Take Up Unit CNT Board Assembly
(1) Removing Board Chassis
1. Remove the screws (round head spring screw M3 × 6: 4 pieces) that retain the board chassis on the chassis
(out).
表 4-130
No. Part name
1 Drive collar
2 Screws that retain the drive
collar (round head spring screw
M3
× 8)
3 Take up Unit scroller (left)
表 4-131
No. Part name
1 Board chassis
2 Screws that retain the board
chassis (round head spring
screw M3
× 6)
3 Chassis (out)
1
2
3
1
2
2
3
