ValueJet 1304 Service manual
AP-74109 Rev 1.1 2-6

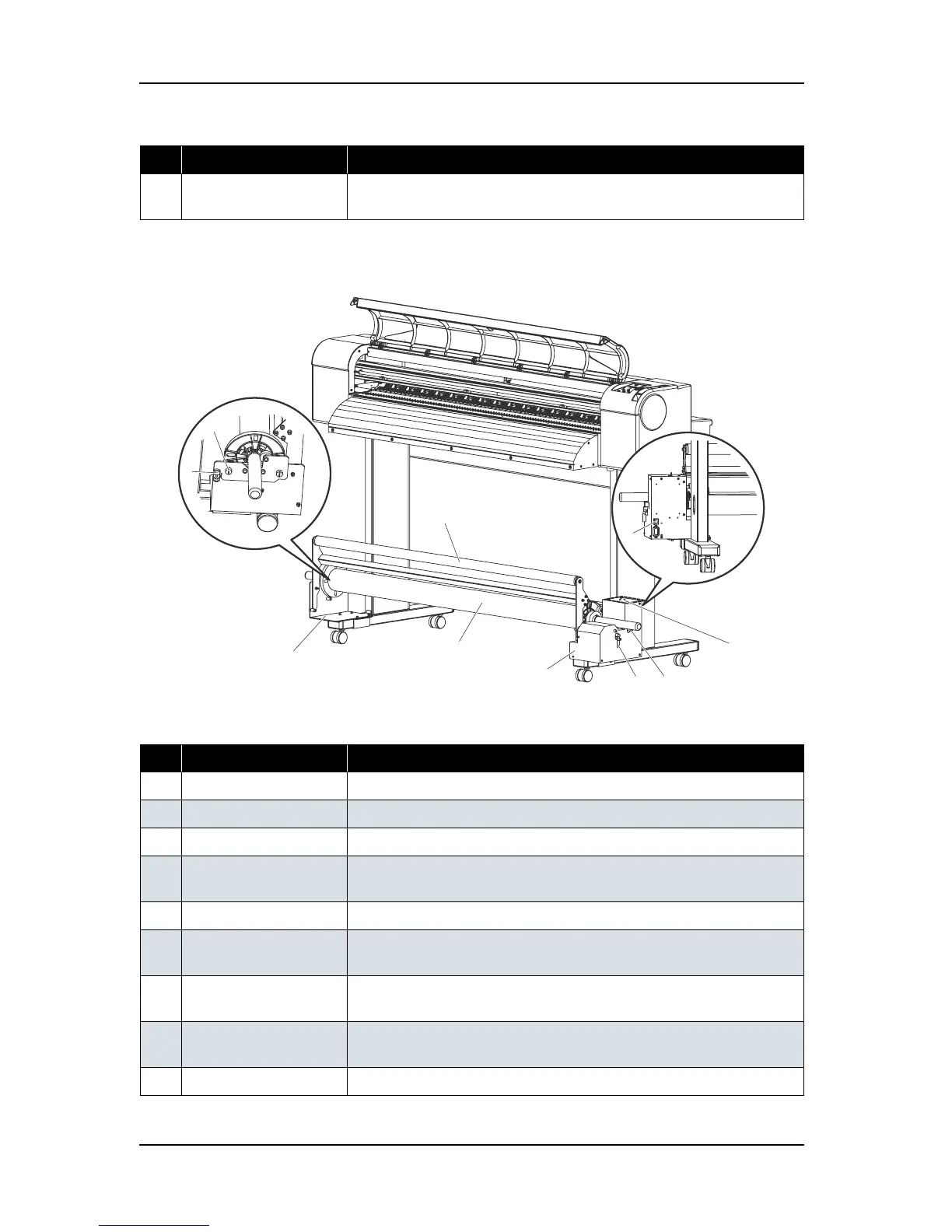

2.3.3 Winding unit
9 Waste fluid valve Open this valve to discharge the waste fluid from the waste fluid tank.
In other case, close the valve.
Table 2-3 Part Names and Functions of Winding Unit
No. Name Function
1 Winding unit Winds the printed media.
2 Cushioning roller Loads the printed media to the winding unit.
3 Scroller receiver Used when setting the scroller of the winding unit.
4 Scroller release lever Releases the scroller from the winding unit, allowing you to turn the
scroller with your hand.
5 Scroller Used when winding the printed media.
6 Scroller height fixing
screw
Fix the height of the scroller receiver.
7 Scroller height
adjustment screw
Adjust the height of the scroller receiver.
8 Horizontal adjustment
screw
Adjust the side position of the scroller.
9 Power switch Used when turning the power ON and OFF.
Table 2-2 Part Names and Functions of Rear Section (Continued)
No. Name Function
48
5
3
2
10
1
7
9
6

MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
