ValueJet 1304 Service manual
4-11 AP-74109 Rev 1.1

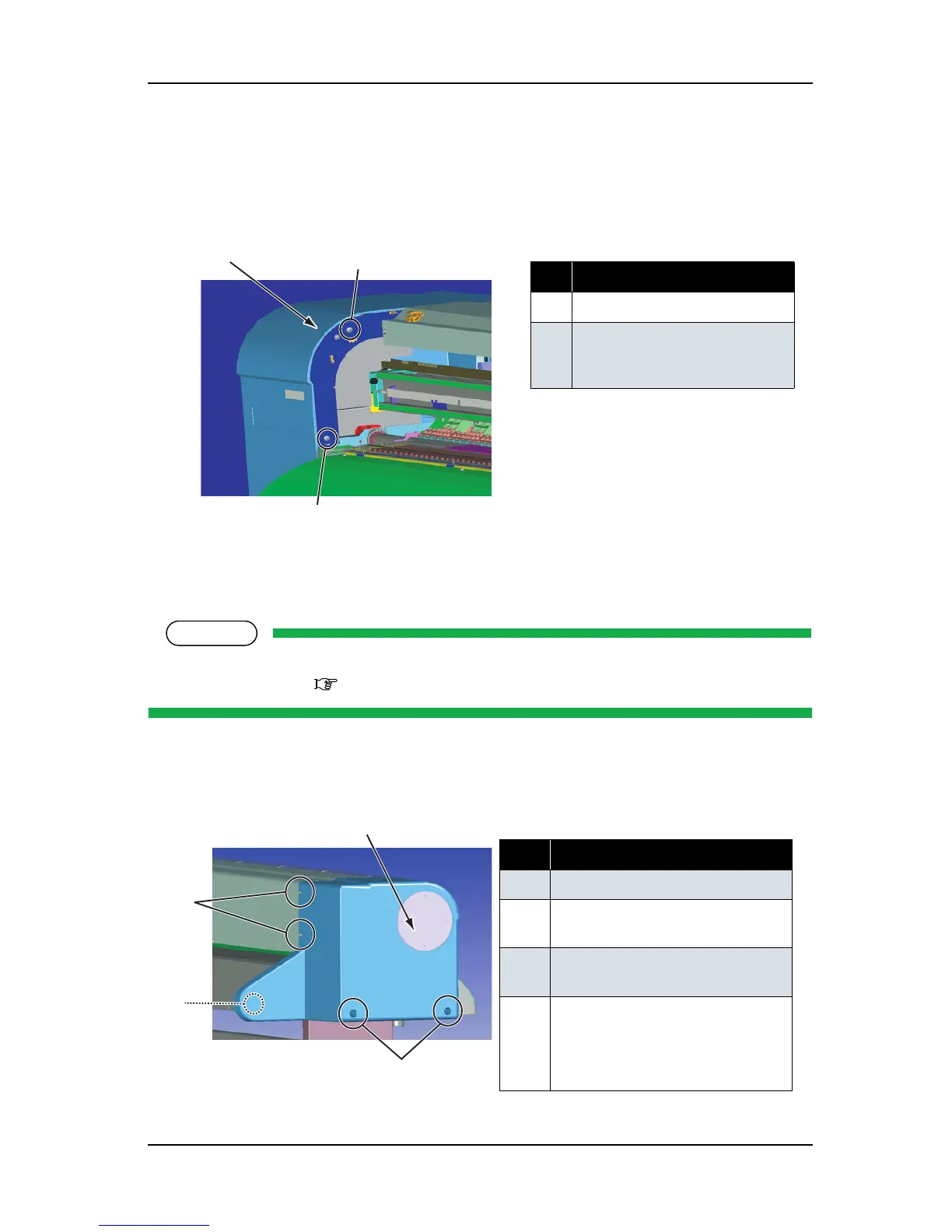

4.2.3 Removing L Side Cover
1. Remove the L side cover front screw (tapping screw M4 × 12, P tight binding black: 2).
2. Remove the L side cover rear screw (tapping screw M4 × 8, S tight cup: 2).
3. Remove the L side cover right screw (tapping screw M4
× 8, S tight cup: 2).
NOTE
Before removing the scroller receiver side screw, remove the following part.
• Scroller receiver L:
"4.2.9 Removing Scroller Receiver (L, R)" p.4-18
4. Remove the L side cover scroller receiver side screw (tapping screw M4 × 12, P tight binding black: 1).
表 4-7
No. Part name
1L side cover
2 L side cover inner screw
(tapping screw M4
× 12, P tight
binding black)
表 4-8
No. Part name
1 L side cover
2 L side cover rear screw
(tapping screw M4
× 8, S tight cup)
3 L side cover right screw
(tapping screw M4
× 8, S tight cup)
4 L side cover scroller receiver side
screw (back side)
(tapping screw M4
× 12, P tight
binding black)
1
2
2
2
4
3
1
