ValueJet 1304 Service manual
AP-74109 Rev 1.1 7-38
7.8 Head Alignment (Vertical Slant)
This section describes the procedure to adjust the head slant in vertical direction.
After operation such as head assembly replacement, adjust the head slant according to the steps below.
Before starting adjustment, remove the following parts.
• CR board cover: "4.6.1 Replacing Print Head" p.4-61
• Cable cover R: "4.6.1 Replacing Print Head" p.4-61
Before aligning print head in vertical direction, perform the alignment in horizontal direction.
"7.7 Head Alignment (Horizontal Height)" p.7-36

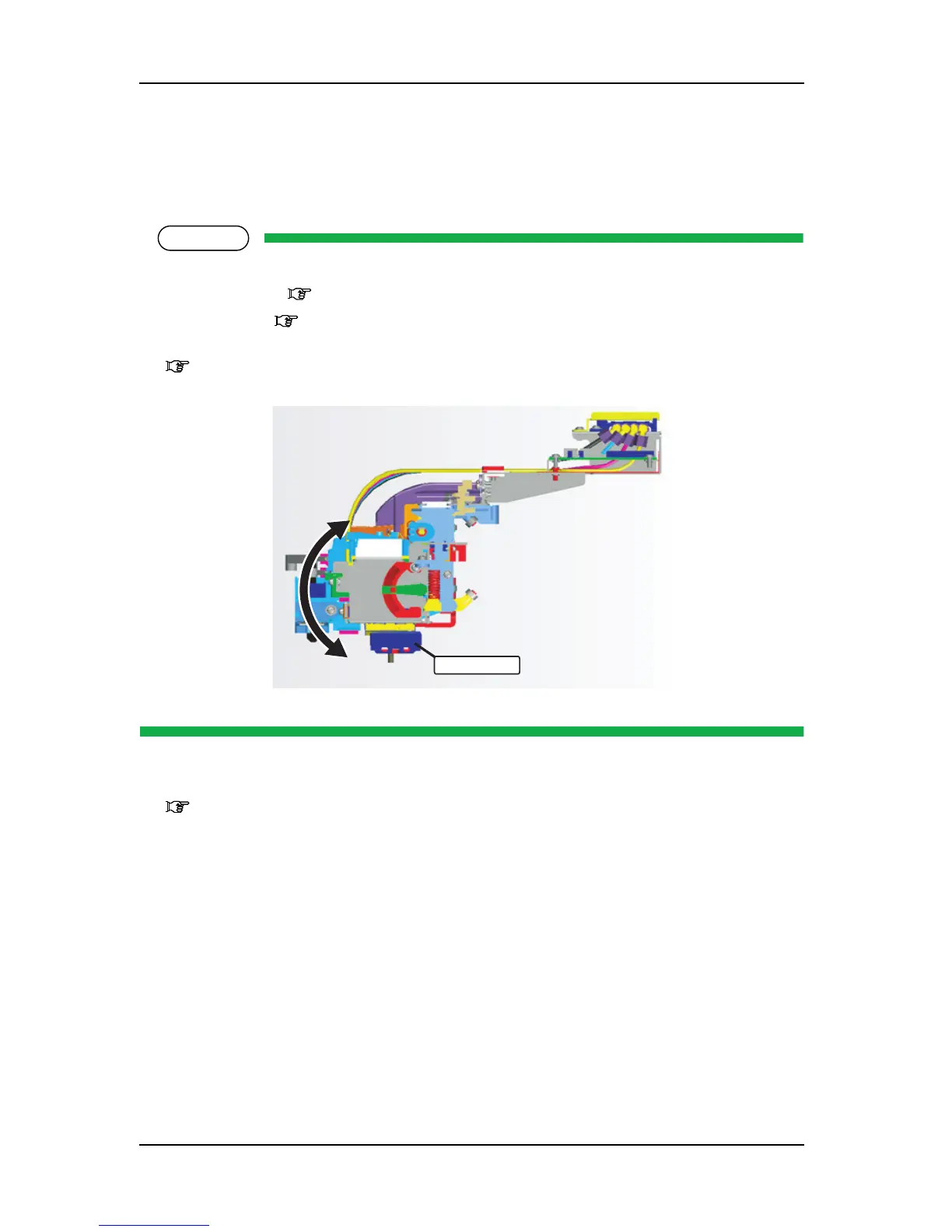

In this procedure, align the print head in the direction shown below.
1. Start the system in self-diagnosis function mode and print the adjustment patterns in “Head Slant Check
Menu 2”.
"5.7.4 Head Slant Check Menu" p.5-29
Print head
Side view
To Next Page
