ValueJet 1304 Service manual
4-45 AP-74109 Rev 1.1

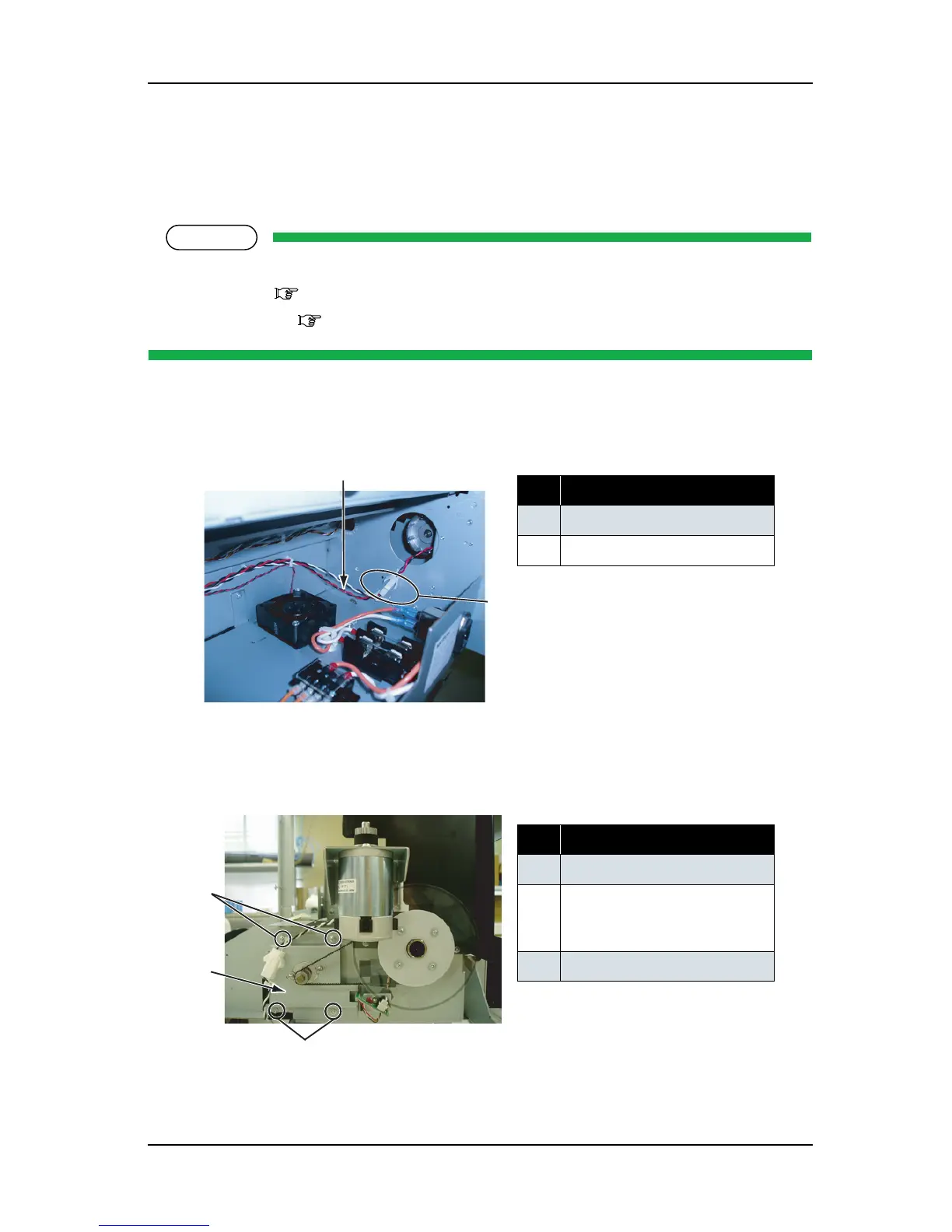

4.4 Replacement of PF Driving Section Components
4.4.1 Replacing PF Motor Assembly
NOTE
Before replacing parts in the PF motor assembly, remove the following covers.
•L side cover: "4.2.3 Removing L Side Cover" p.4-10
• Media guide R2: "4.2.8 Removing Media Guide R2" p.4-17
1. Remove the PF motor assembly connectors out through the PF motor cable assembly.
2. Remove the screw retaining the PF motor to the PF bracket (M4
× 8 round head spring screw: 2).
表 4-51
No. Part name
1 PF motor cable
2
PF motor assembly connector
表 4-52
No. Part name
1 PF bracket:
2
PF motor screw
(round head spring screw M4
×
8)
3 PF speed reduction belt
2
1
1
2
2

MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
