MUTOH ValueJet User Manual

ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-16

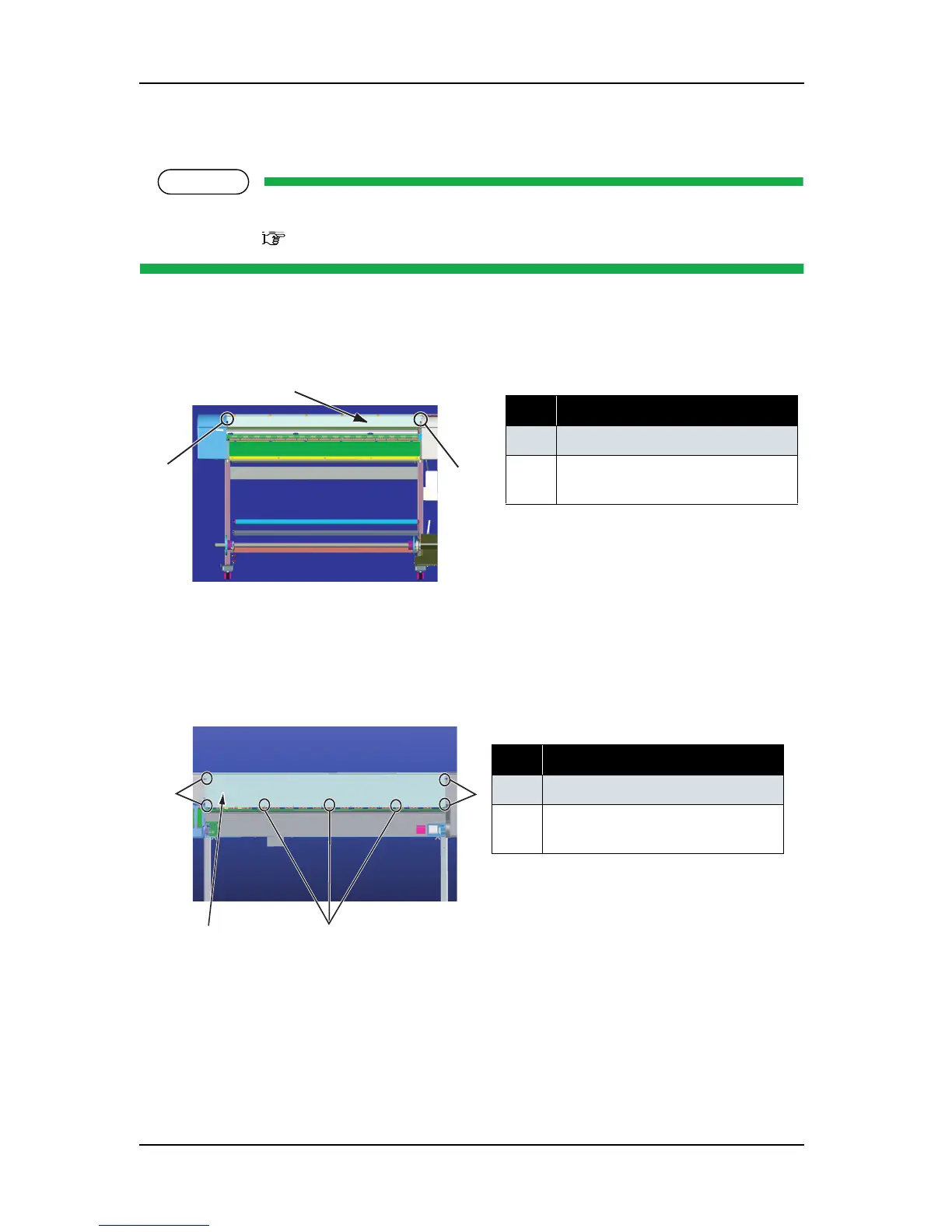

4.2.6 Removing Top Cover
NOTE
Before removing the top cover, remove the following parts.
• Front cover: "4.2.5 Removing Front Cover" p.4-14
1. Remove the top cover front side-retaining screw (round head spring screw M3 × 5: 2).
2. Remove the top cover rear side-retaining screw (round head spring screw M3 × 5: 7).
3. Remove the top cover.
4. Replace the parts inside the product.
5. To reassemble the unit, reverse the removal procedure.
表 4-11
No. Part name
1 Top cover
2 Top cover front side screw
(round head spring screw M3
× 5)
表 4-12
No. Part name
1 Top cover
2
Top cover rear side screw
(round head spring screw M3
× 5)
2
1
2
2
2
1
2

MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
