MUTOH ValueJet User Manual

ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-6
4.2 Removal of Covers
Before replacing any service parts in the machine, you must remove some external covers.
This section describes the procedure to remove covers.

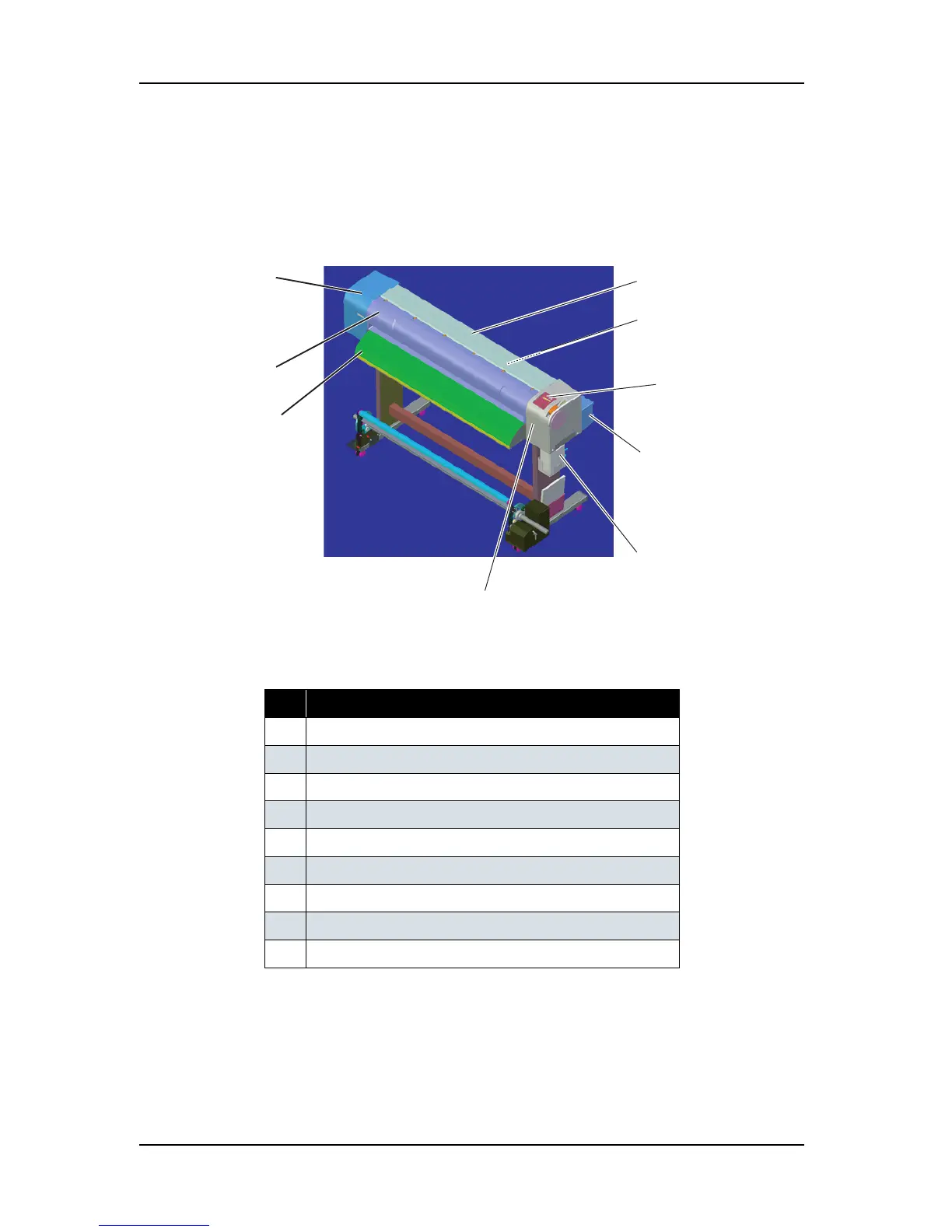

Table 4-1 Cover Component List
No. Part name
1
L side cover
2
Front cover
3
Media guide F
4
R side cover
5
Waste fluid bottle
6
I/H cover
7
Operation panel unit assembly
8
Media guide R2 (rear side)
9
Top cover
1
3
2
4
5
6
7
9
8
(Rear side)

MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
