ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-94

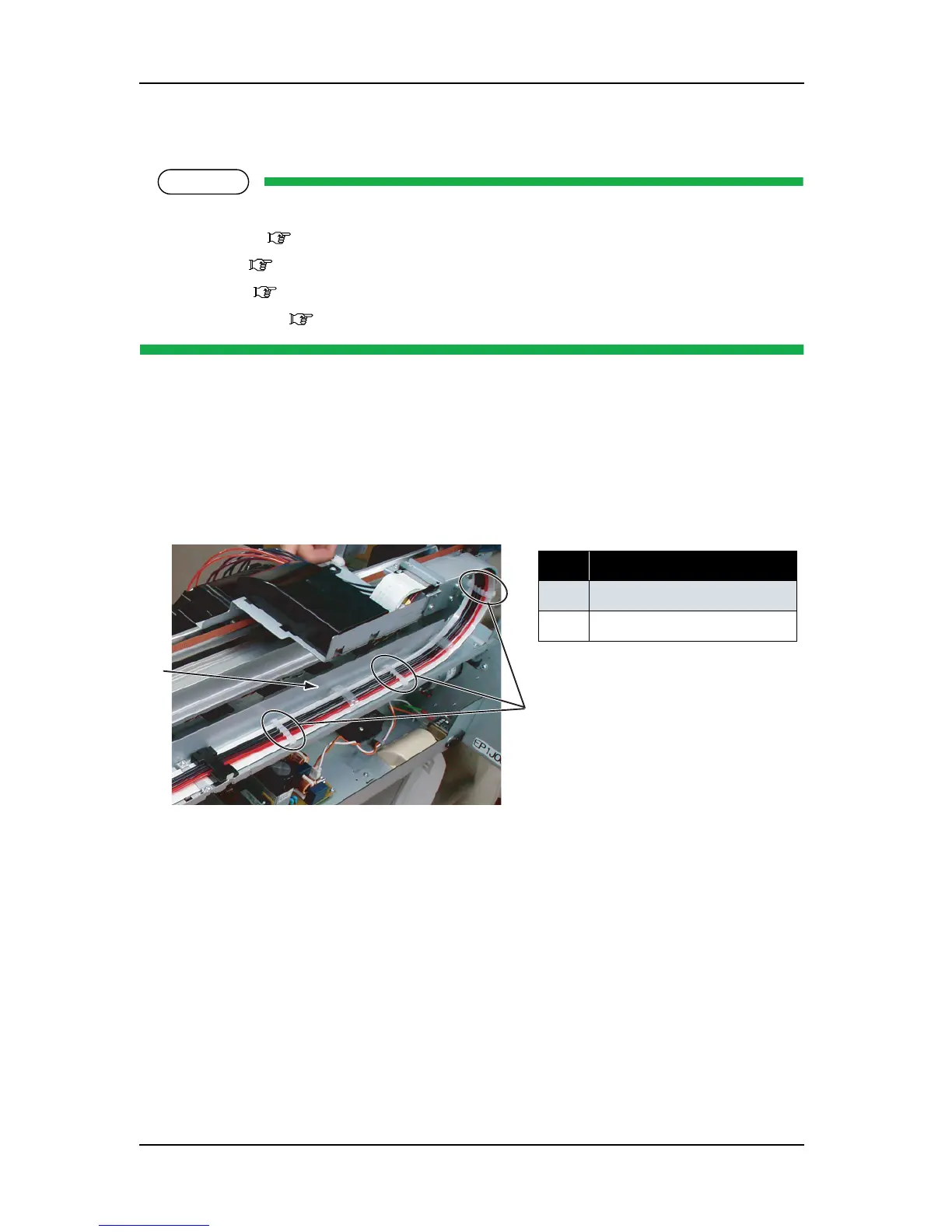

4.10.2 Replacing Ink Tube
NOTE
Before replacing the ink tube, remove the following covers.
• R side cover: "4.2.1 Removing R Side Cover" p.4-6
•I/H cover: "4.2.4 Removing Ink Holder (I/H) Cover" p.4-12
•Top cover: "4.2.6 Removing Top Cover" p.4-15
• Media guide R2: "4.2.8 Removing Media Guide R2" p.4-17
(1) Preparation of Replacing Ink Tube
1. Perform ink discharge operation to discharge ink entirely from the ink paths.
2. Remove the tube clamps (3 points).
3. Remove the tube film guide retainers (3 points).
表 4-108
No. Part name
1 Tube guide
2
Tube clamp
2
1
