ValueJet 1304 Service manual
4-95 AP-74109 Rev 1.1

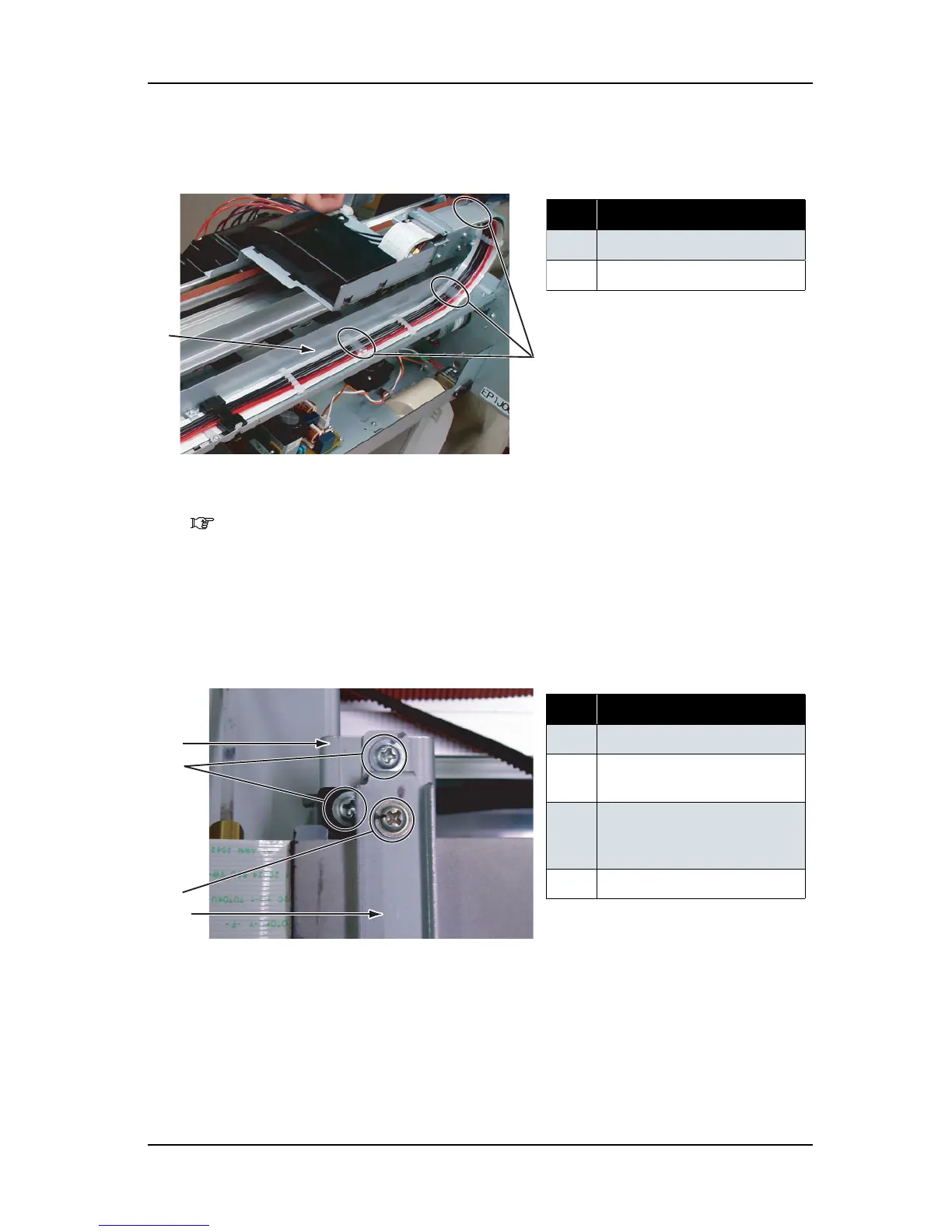

4. Remove the CR board cover.
Up to step 4 in "4.6.1 Replacing Print Head" p.4-61
5. Remove the CR tape wire from the CR board.
6. Remove the screw retaining the bearer mounting material and the bearer fixing material (tapping screw
M 3
× 8, S tight cup: 2) (M3 × 8, P tight cup: 1).
7. Remove the bearer mounting material and the bearer fixing material.
(2) Replacing Ink Tube
1. Loosen the joint screw (M6) connecting the ink tube and the F branch.
表 4-109
No. Part name
1 Tube guide
2
Tube film guide retainer
表 4-110
No. Part name
1 Bearer mounting material
2 Bearer mounting material
screw (M3
× 8, S tight)
3 Screw retaining the bearer
fixing material (M3
× 8, P
tight)
4 Bearer fixing material
2
1
1
2
3
4
