ValueJet 1304　Service manual
AP-74109 Rev 1.1 4-102
4.11 Replacing Accessory Unit
4.11.1 Replacing Level Switch (Waste Fluid)
1. Remove the level switch (waste fluid) from connector.
2. Remove the level switch (waste fluid) from the cap of the waste fluid bottle assembly.
3. Remove the level switch (waste fluid).
4. To reassemble the unit, reverse the removal procedure.

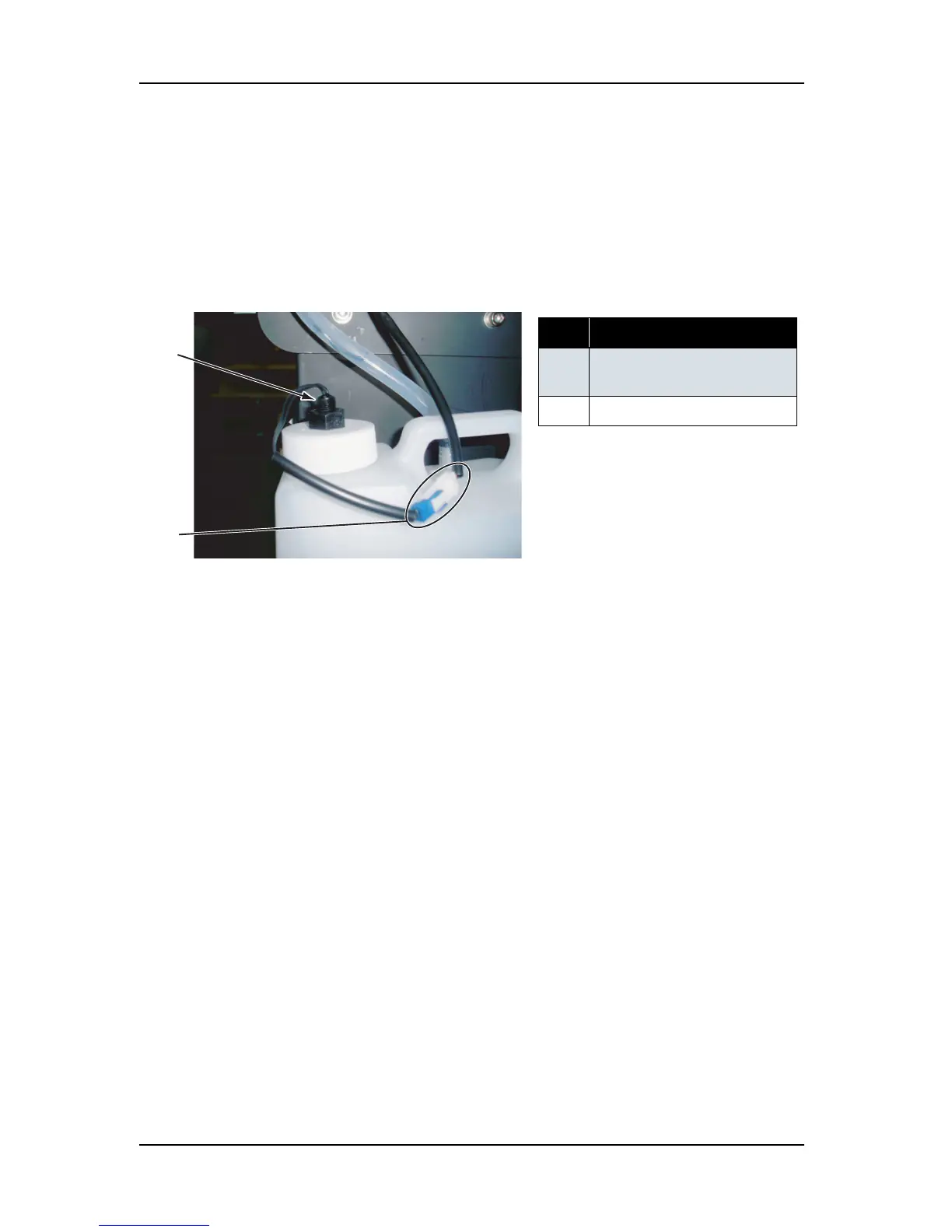

表 4-118
No. Part name
1 Level switch (waste fluid)
VJ16
2 Connector
1
2
