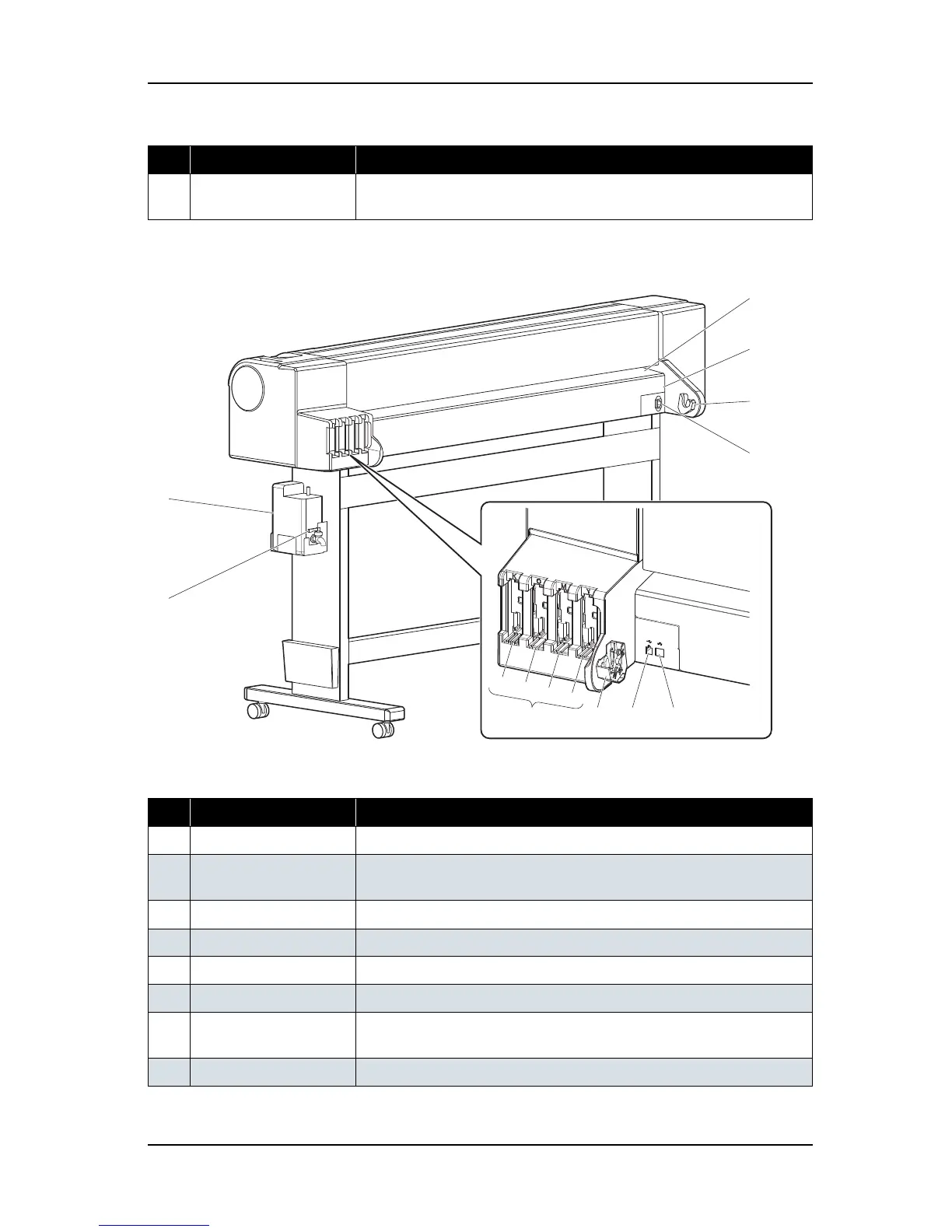

2.3.2 Rear Section
9 Platen This is inside the front cover.
There are heaters (platen heater) inside to dry ink.
Table 2-2 Part Names and Functions of Rear Section
No. Name Function
1 AC inlet For inserting the power cable plug.
2 Network interface
connector
Connector to connect a network interface cable.
3
USB connector This printer does not support the connector.
4 Scroller receiver The scroller is set here when using roll media.
5 Media feed slot Insert media from here when feeding media.
6 Ink cartridge slot This holds the ink cartridge.
7 Media guide Supports the media to be feed smoothly when media setting and printing.
There are pre heaters inside to warm the media.
8 Waste fluid tank This is a tank that contains the waste ink.
Table 2-1 Part Names and Functions of Front Section (Continued)
No. Name Function
1
4
23
K
C
6
M
Y
5
7
4
8
9
