MUTOH ValueJet User Manual

ValueJet 1304 Service manual
4-19 AP-74109 Rev 1.1

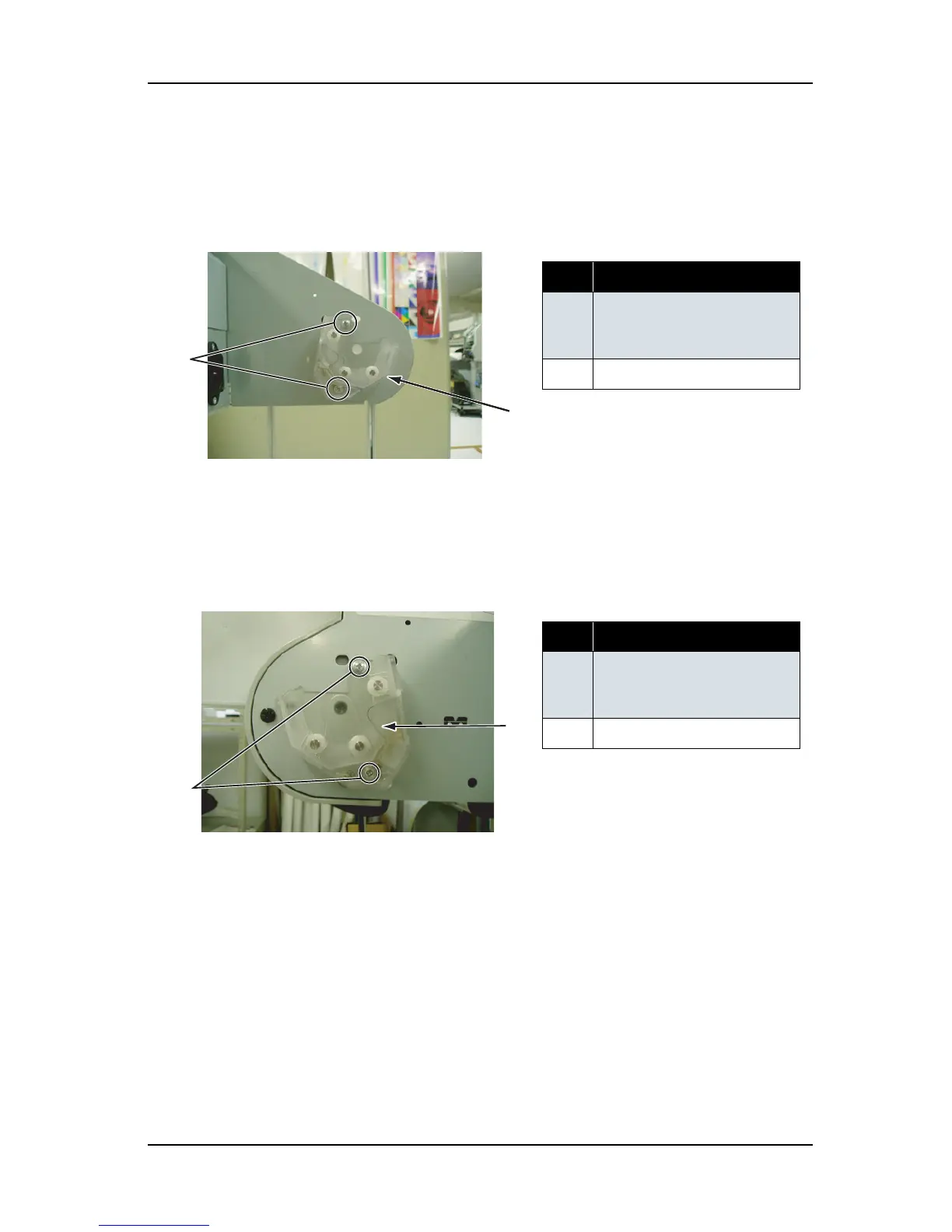

4.2.9 Removing Scroller Receiver (L, R)
1. Remove the scroller receiver L-retaining screw (tapping screw M3 × 6, S tight cup: 2).
2. Remove the scroller receiver L.
3. Remove the scroller receiver L-retaining screw (tapping screw M3
× 6, S tight cup: 2).
4. Remove the scroller receiver R.
5. To reassemble the unit, reverse the removal procedure.
表 4-16
No. Part name
1 Scroller receiver L screw
(tapping screw M3
× 6, S tight
cup)
2
Scroller receiver L
表 4-17
No. Part name
1 Scroller receiver R screw
(tapping screw M3
× 6, S tight
cup)
2
Scroller receiver R
1
2
1
2
