ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-56

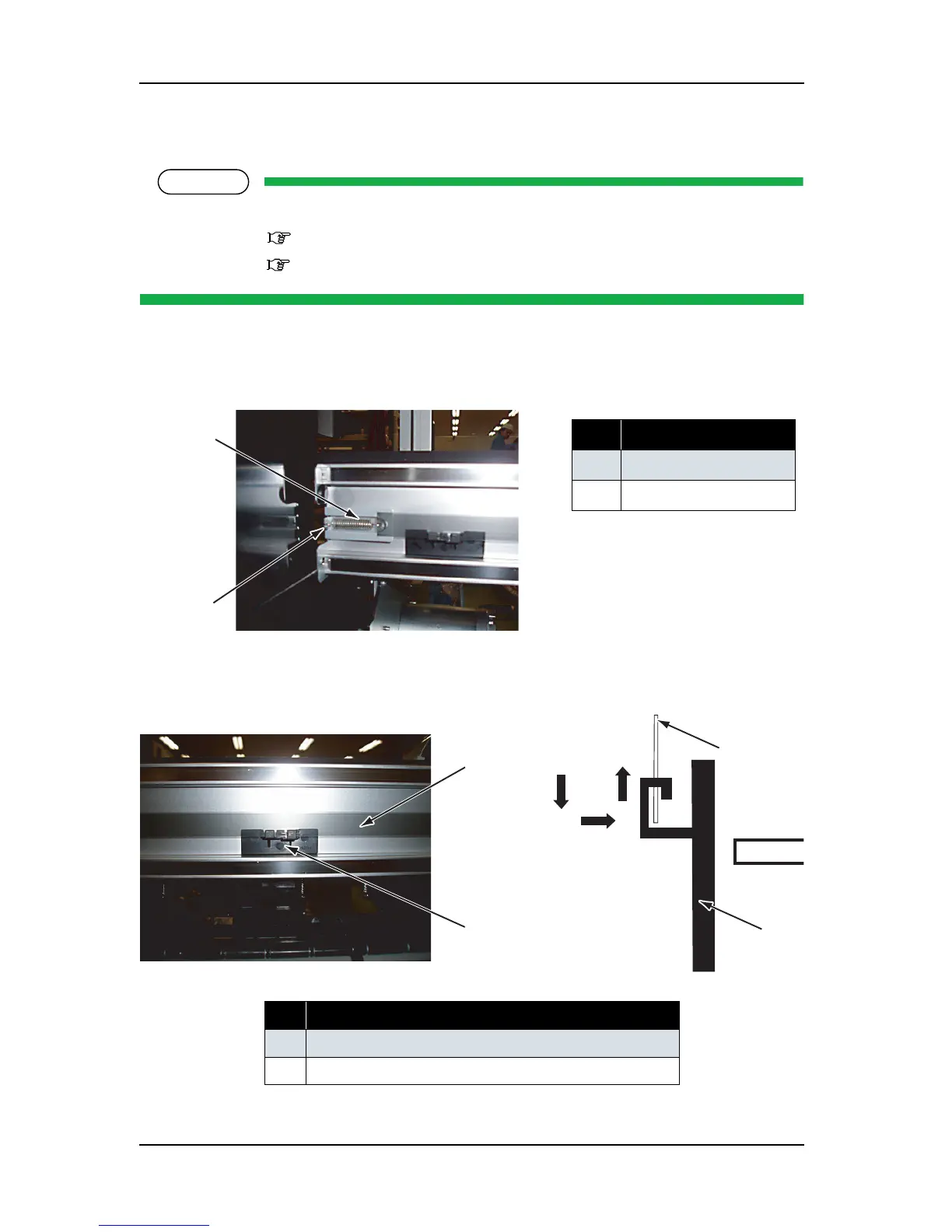

4.5.4 Replacing T Fence
NOTE
Before replacing the T fence, remove the following covers.
• R side cover: "4.2.1 Removing R Side Cover" p.4-6
•L side cover: "4.2.3 Removing L Side Cover" p.4-10
1. Remove the T fence spring from T fence spring hook on the L frame side.
2. From the three fence guides, remove the T fences by following instructions in the diagram below.
表 4-63
No. Part name
1 T fence spring
2
T fence spring hook
No. Part name
1 T fence
2 Fence guide
1
2
1
2
side view
Fence guide
Ԙ
ԙ
Ԛ
T fence
Slide the T fence in the order
of arrows shown above to detach.
