ValueJet 1304　Service manual
5-29 AP-74109 Rev 1.1
5.7.4 Head Slant Check Menu
(1) Horizontal Direction Checking
This menu prints out a sample printing to check for head slant in the horizontal direction.
To perform head slant check, follow the steps below.
1. Set media as necessary.
2. After media is set, the printer prints out head slant check patterns in the following modes.
• 1 pass Uni-D
• PF: 360 dpi, CR: 360 dpi

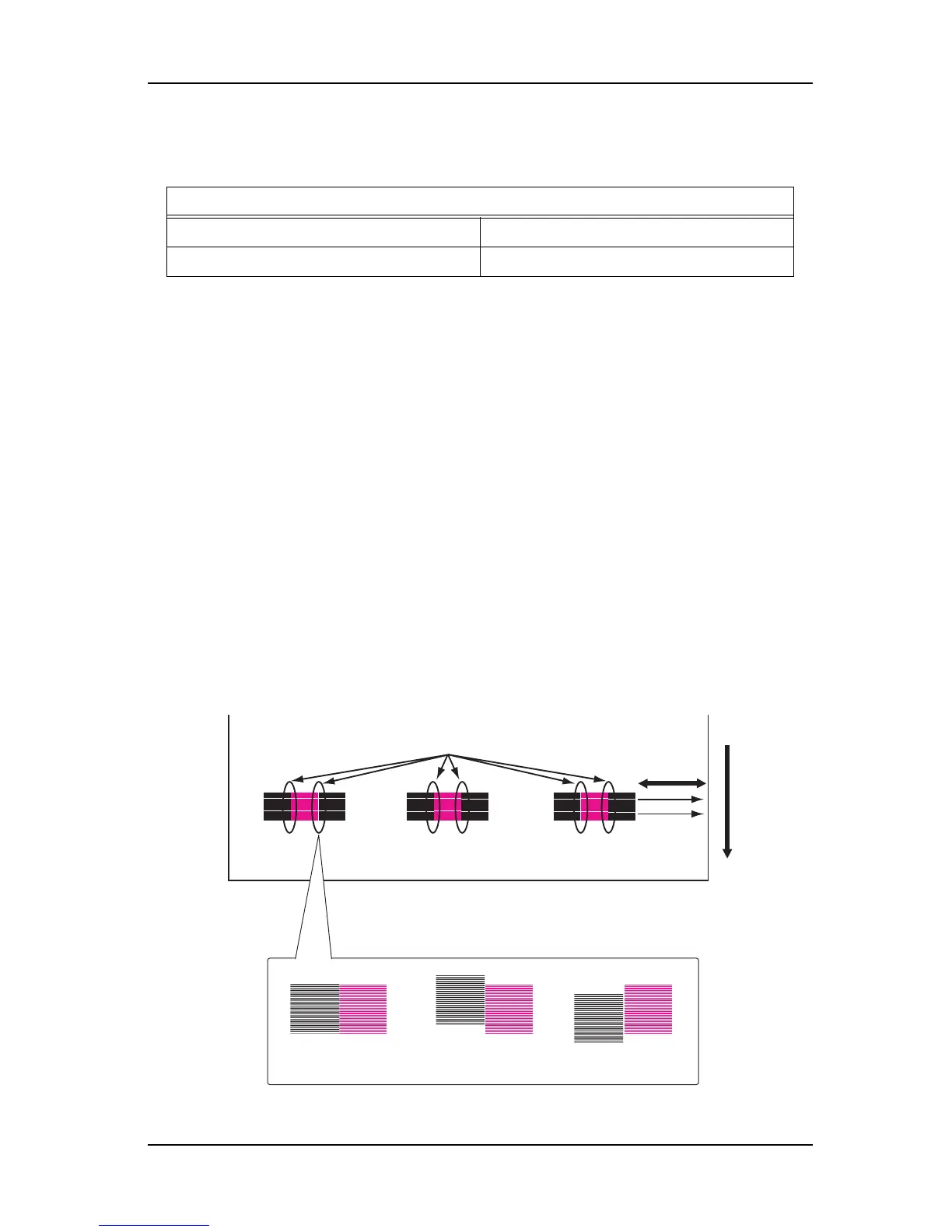

3. Check the printed head slant check patterns. Checking items are as follows:
• Head slant
A: Check the point to check the slant.
B: Media feed direction
C: OK
D: Move the head adjusting cam upward.
E: Move the head adjusting cam downward.
Table 5-6 Head Slant Items
Items Contents
Head slant: slant Head slant check: horizontal direction
Head slant: vertical Head slant check: vertical direction
$
#
%
'
&
OO
