ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-86

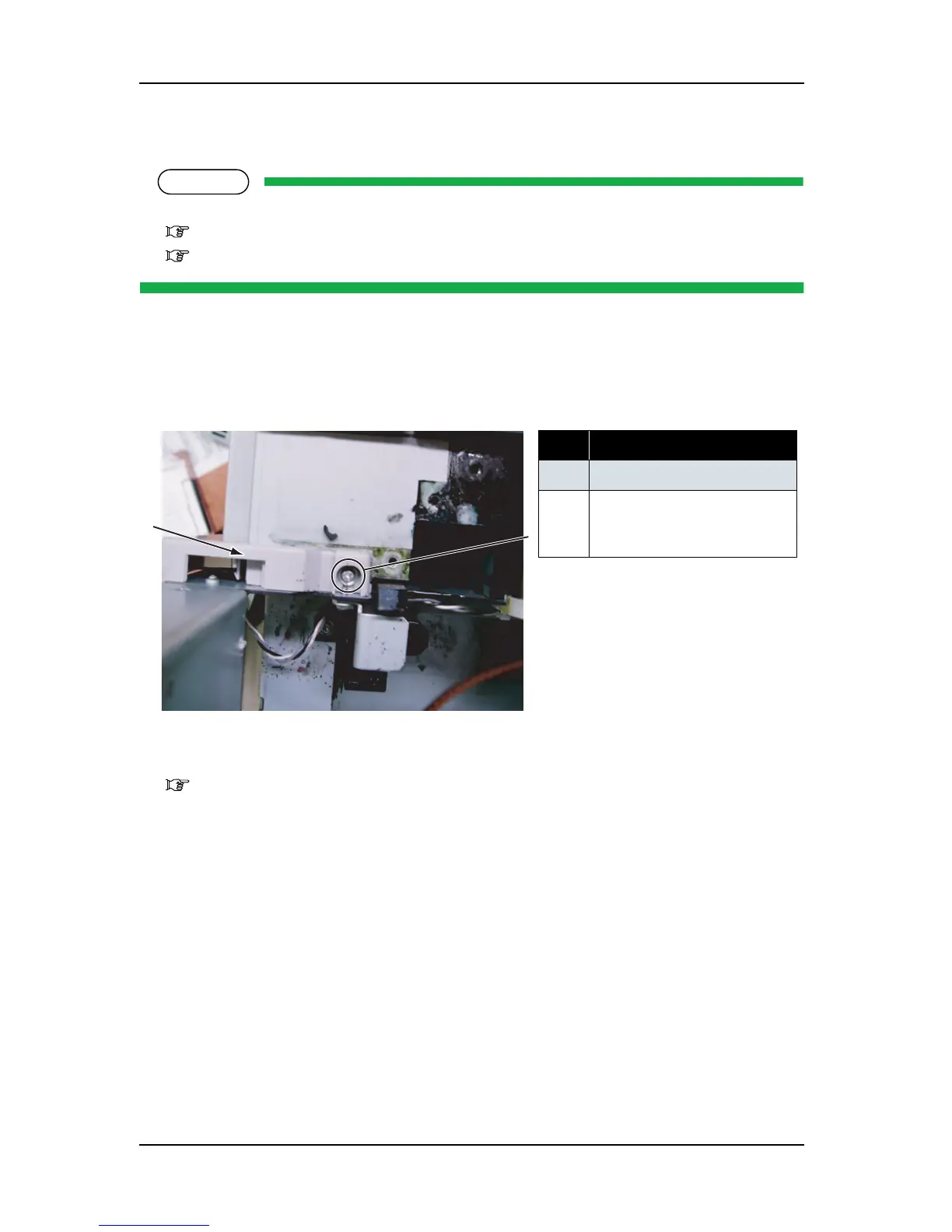

4.8.3 Replacing Cover Sensor Assembly
NOTE
Before replacing the cover sensor assembly, remove the parts as follows.
"4.2.1 Removing R Side Cover" p.4-6
"4.2.3 Removing L Side Cover" p.4-10
1. Remove the screw retaining the sensor cover (L/R) to the frame (tapping screw M3 × 6, S tight cup: 1 per
cover). (The diagram below shows the sensor cover R).
2. Remove the cover sensor connector from the main board.
"4.3.2 Removing Main Board Bracket" p.4-24
表 4-98
No. Part name
1 Sensor cover R
2
Sensor cover R screw
(tapping screw M3
× 6, S tight
cup)
1
2
