MUTOH ValueJet - Replacing PF_ENC Assembly

ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-48
4.4.2 Replacing PF_ENC Assembly
NOTE
Before replacing parts in the PF_ENC assembly, remove the following covers.
•L side cover: "4.2.3 Removing L Side Cover" p.4-10
• Rear cover: "4.2.8 Removing Media Guide R2" p.4-17
1. Remove the PF_ENC assembly connectors from the main board assembly.
"4.3.3 Replacing Main Board Assembly" p.4-29
2. Take the PF_ENC assembly cable off the clamp, then pull it out through the L frame cable inlet.
3. Remove the PF_ENC assembly-retaining screw (tapping screw M2 × 5: 2).
NOTE
Do not damage, bend the PF scale, or touch the outer edge of the scale.
4. Replace the PF_ENC assembly.
5. To reassemble the unit, reverse the removal procedure.
6. Perform adjustments by following the instructions in "7.2 Adjustment Item" p.7-3.

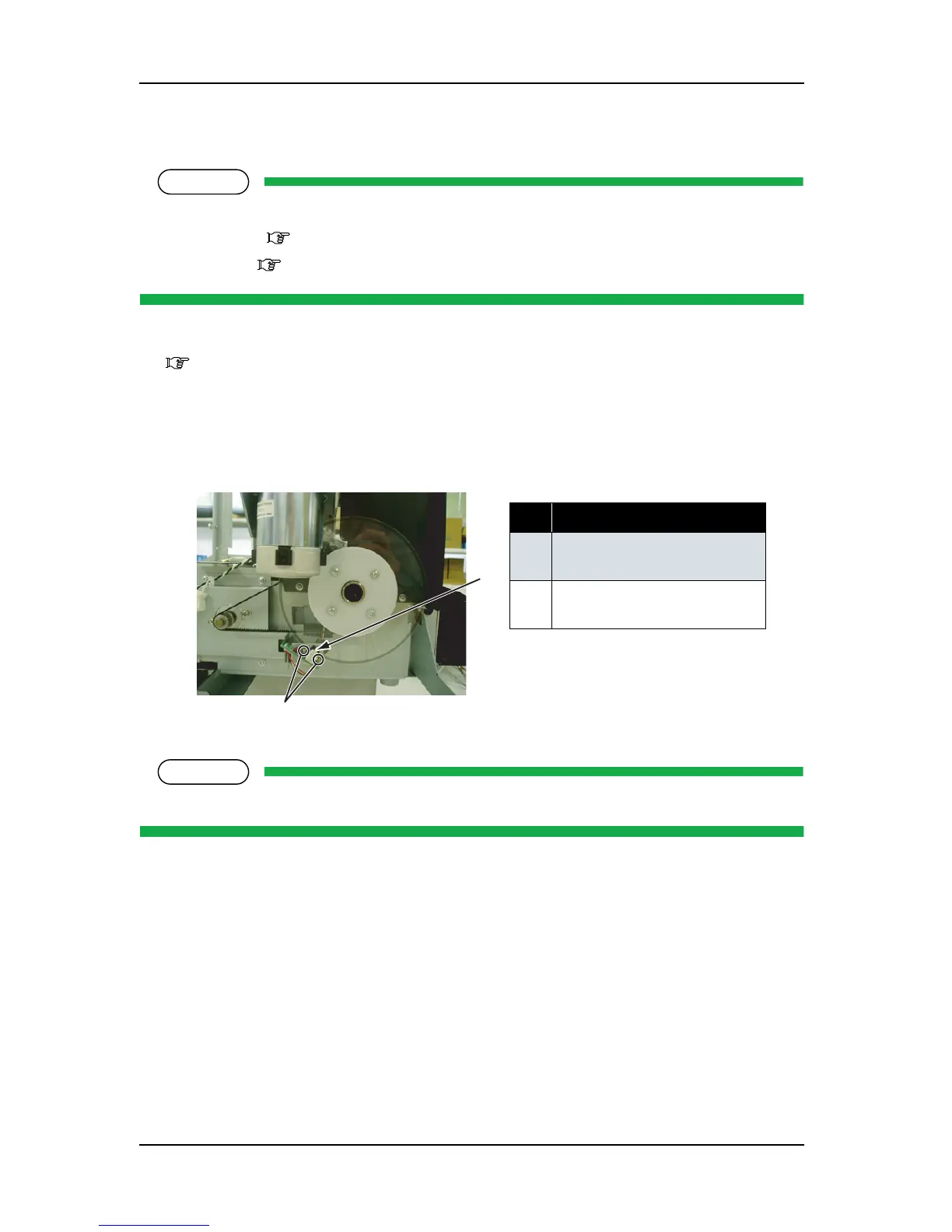

表 4-55
No. Part name
1 PF_ENC assembly screw
(tapping screw M2
× 5)
2
PF_ENC assembly
1
2
