ValueJet 1304 Service manual
4-21 AP-74109 Rev 1.1

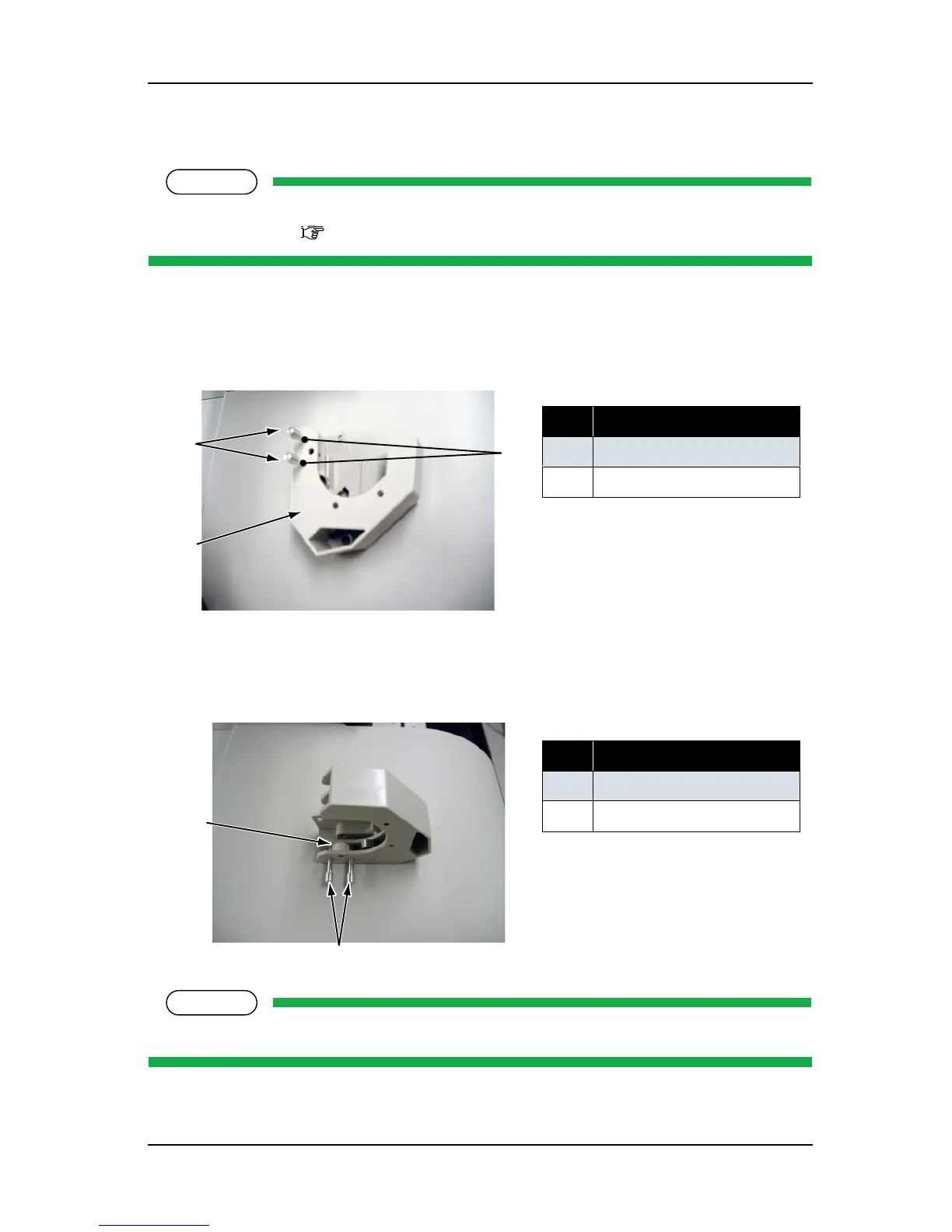

4.2.10 Assembling of Scroller Receiver L and R
NOTE
Before assembling scroller receiver, remove the following part.
• Scroller receiver:
"4.2.9 Removing Scroller Receiver (L, R)" p.4-18
1. Attach the two position adjustment scroller roller shafts to the part A shown below of scroller receiver L
(or R). Make sure that the attachment direction is the same in the figure below.
2. Put the scroller receiver roller on the scroller roller shafts R.
NOTE
Scroller roller shaft R is easy-to-fall. Do not let the shaft fall by pressing or slanting it with a finger.
表 4-18
No. Part name
1 Scroller roller shaft R
2
Scroller receiver L
表 4-19
No. Part name
1 Scroller receiver roller
2
Scroller roller shaft R
A
1
2
1
2
