ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-22

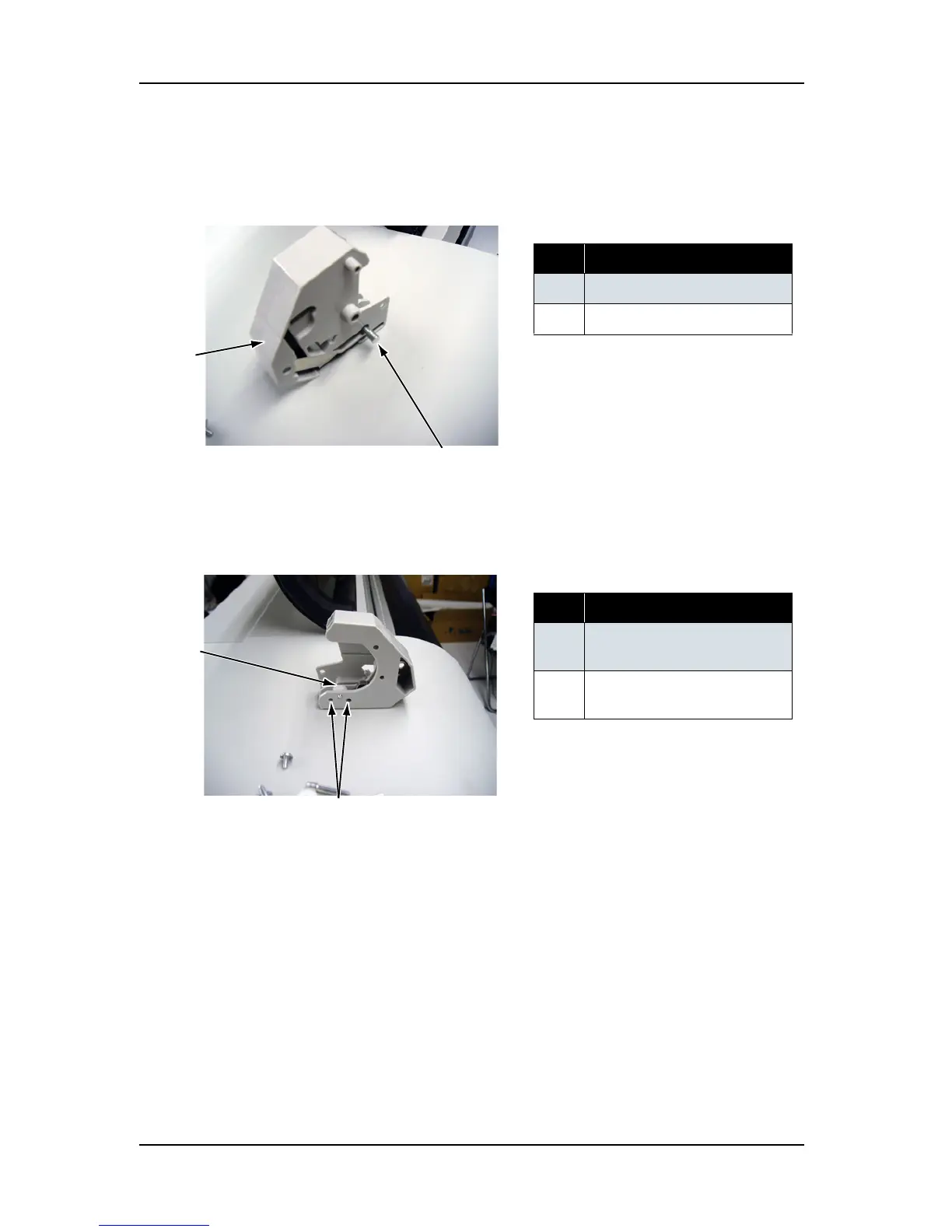

3. From the other side of scroller receiver L (or R) explained in step 1 and 2, insert the scroller receiver R
and fix the scroll receiver roller set in step 2.
4. Remove the position adjustment scroller roller shaft R set in step 1.
表 4-20
No. Part name
1 Scroller roller shaft R
2
Scroller receiver L
表 4-21
No. Part name
1 Remove the scroller roller
shaft R in this position.
2
Attached scroller receiver
roller
1
2
1
2
