ValueJet 1304 Service manual
4-59 AP-74109 Rev 1.1

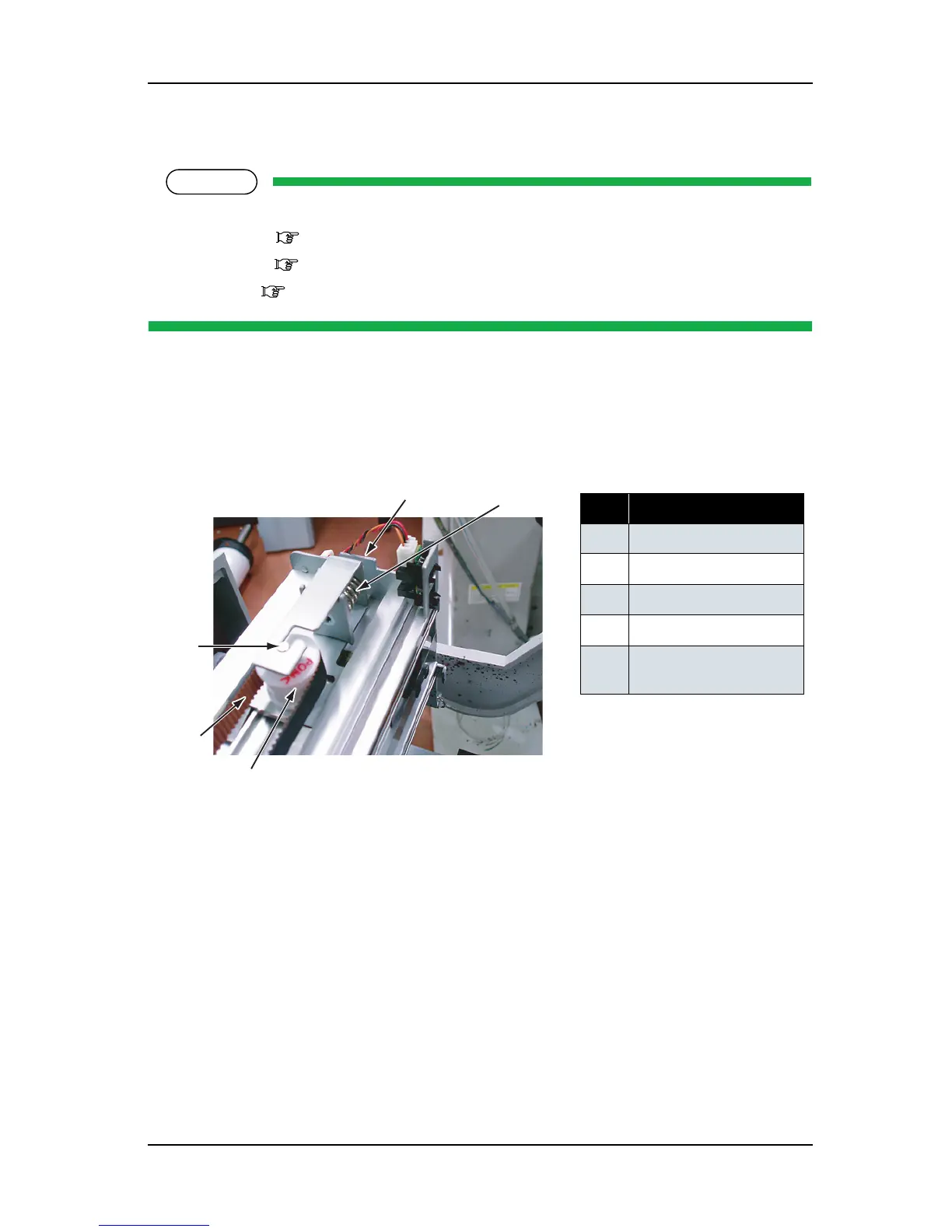

4.5.5 Replacing CR Driven Pulley and CR belt
NOTE
Before replacing CR driven pulley assembly and CR belt, remove the following covers.
• R side cover: "4.2.1 Removing R Side Cover" p.4-6
•L side cover: "4.2.3 Removing L Side Cover" p.4-10
• Top cover: "4.2.6 Removing Top Cover" p.4-15
1. Release the CR locker by pushing it with your finger, then move the carriage from the capping position
to the left.
2. Loosen the CR tension mounting shaft on the R side frame, then release the CR belt tension.
3. Take the CR belt off the CR motor assembly pulley on the L frame side.
4. Replace the CR belt.
5. Remove the CR driven pulley.
6. Remove the CR driven pulley shaft from the CR driven pulley.
7. To reassemble the unit, reverse the removal procedure.
表 4-67
No. Part name
1 Driven pulley shaft
2
CR belt
3
CR driven pulley
4
Tension spring
5
CR tension mounting
shaft
3
2
4
5
1
back-side㧕
