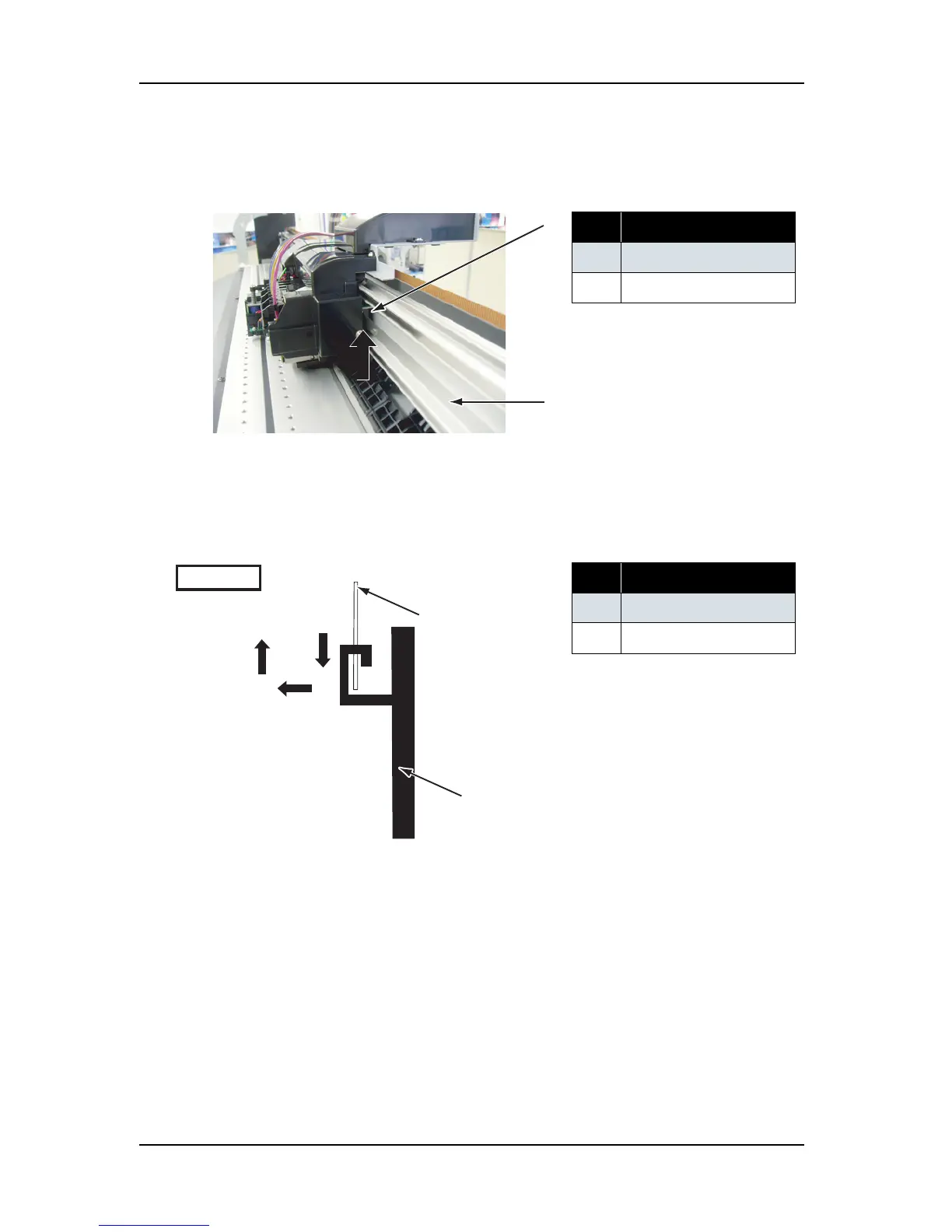

6. Insert the T fence into the CR encoder assembly.
7. Install the T fence to the fence guide.
8. Install the T fence spring to the T fence spring hook on the L frame side.
9. Perform adjustments by following the instructions in "7.2 Adjustment Item" p.7-3.
表 4-65
No. Part name
1 T fence
2
CR encoder assembly
表 4-66
No. Part name
1 T fence
2
Fence guide
1
2

Ԙ
ԙ
Ԛ

side view
Slide the T fence in the order
of arrows shown above to install.
