ValueJet 1304 Service manual
AP-74109 Rev 1.1 7-40

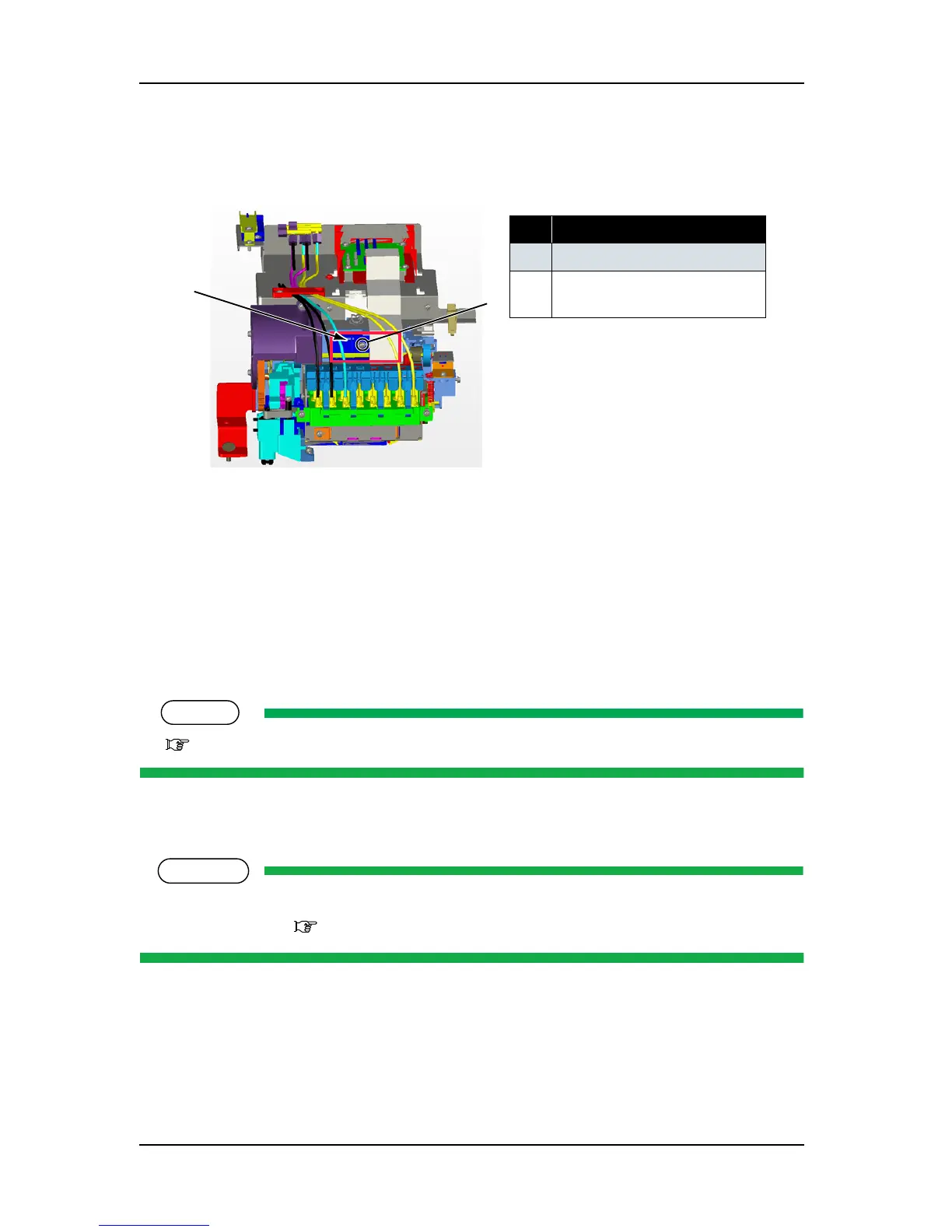

3. Loosen the vertical-slant adjusting tab screw and move the tab left and right to adjust the head vertical
angle.
7.9 Cutter Holder Height Adjustment
This section describes the procedure to adjust the cutter holder height.
7.9.1 Jigs and Tools
The following jigs and tools are required for cutter holder height adjustment.
• Cutter holder jig (VJ): JD-42804
TIP
"10.3 Jigs and Tools" p.10-3
7.9.2 Adjustment Procedure
NOTE
Before starting adjustment, remove the following parts.
• Cable cover L "4.6.1 Replacing Print Head" p.4-61
To make adjustment, follow the steps below.
No. Part name
1
Vertical-slant adjusting tab
2
Vertical-slant adjusting tab
screw



MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
