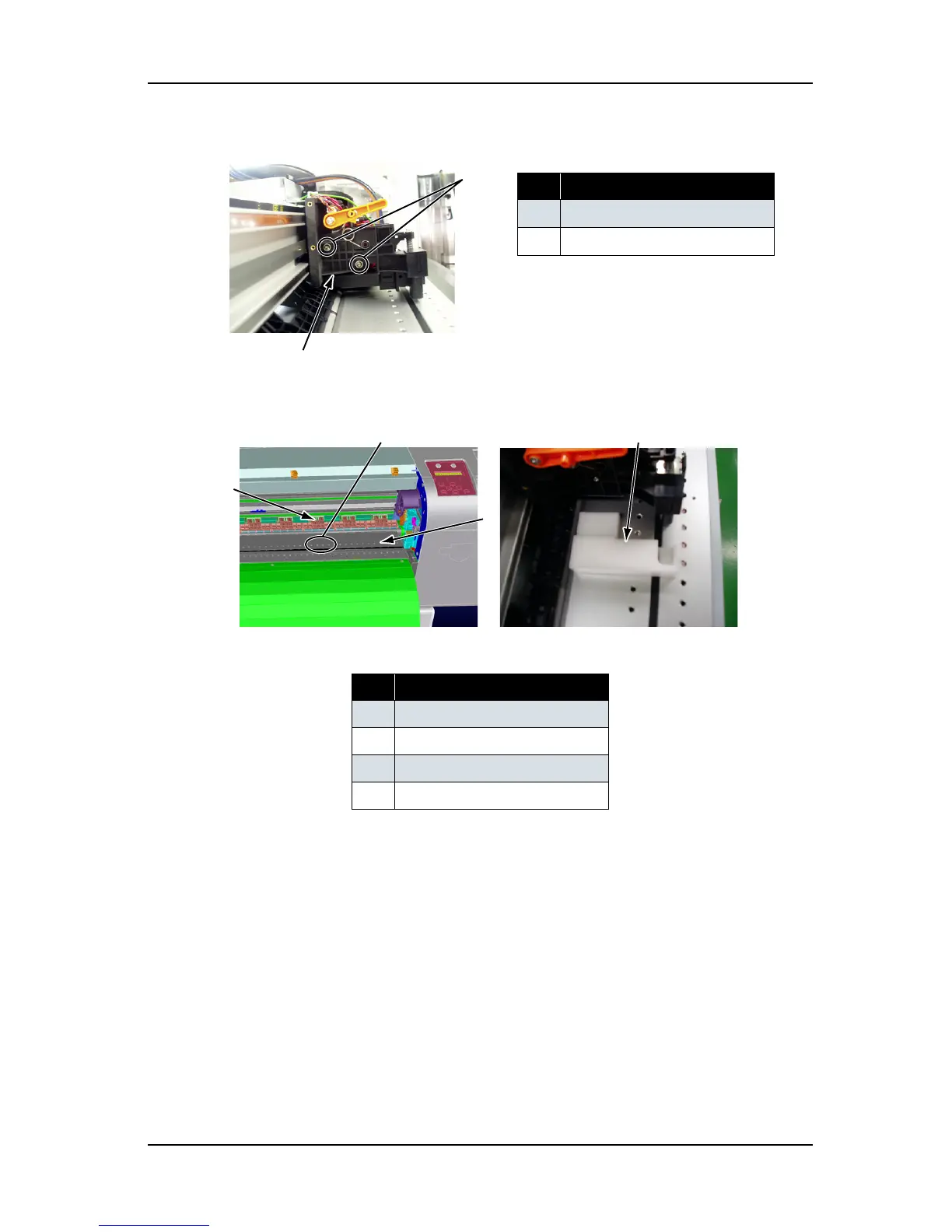

1. Loosen the screws (× 2) which fix cutter holder.
2. Place the jig cutter holder (VJ) on the front of pressure arm, which is the third one from the origin.
No. Part name
1
Cutter holder
2
Screws fixing cutter holder
No. Part name
1 Pressure arm
2Platen
3 Jig set position
4 Cutter holder jig (VJ)






