5.15.2 Sensor
The status of the following sensors on the controller board is displayed.
• Pre-heater thermistor sensor
• Platen heater thermistor sensor 1 and 2
• After-thermistor sensor
• Ink ID for each ink sensor
• Ink NOT sensor for each ink cartridge
• Ink END sensor for each ink
[<] key
[<] key
[>] key
[<] key
[<] key
[>] key
[>] key
[>] key
[<] key
[<] key
[>] key
[>] key
[<] key
[>] key
[<] key
[>] key
[<] key
[>] key
[>] key

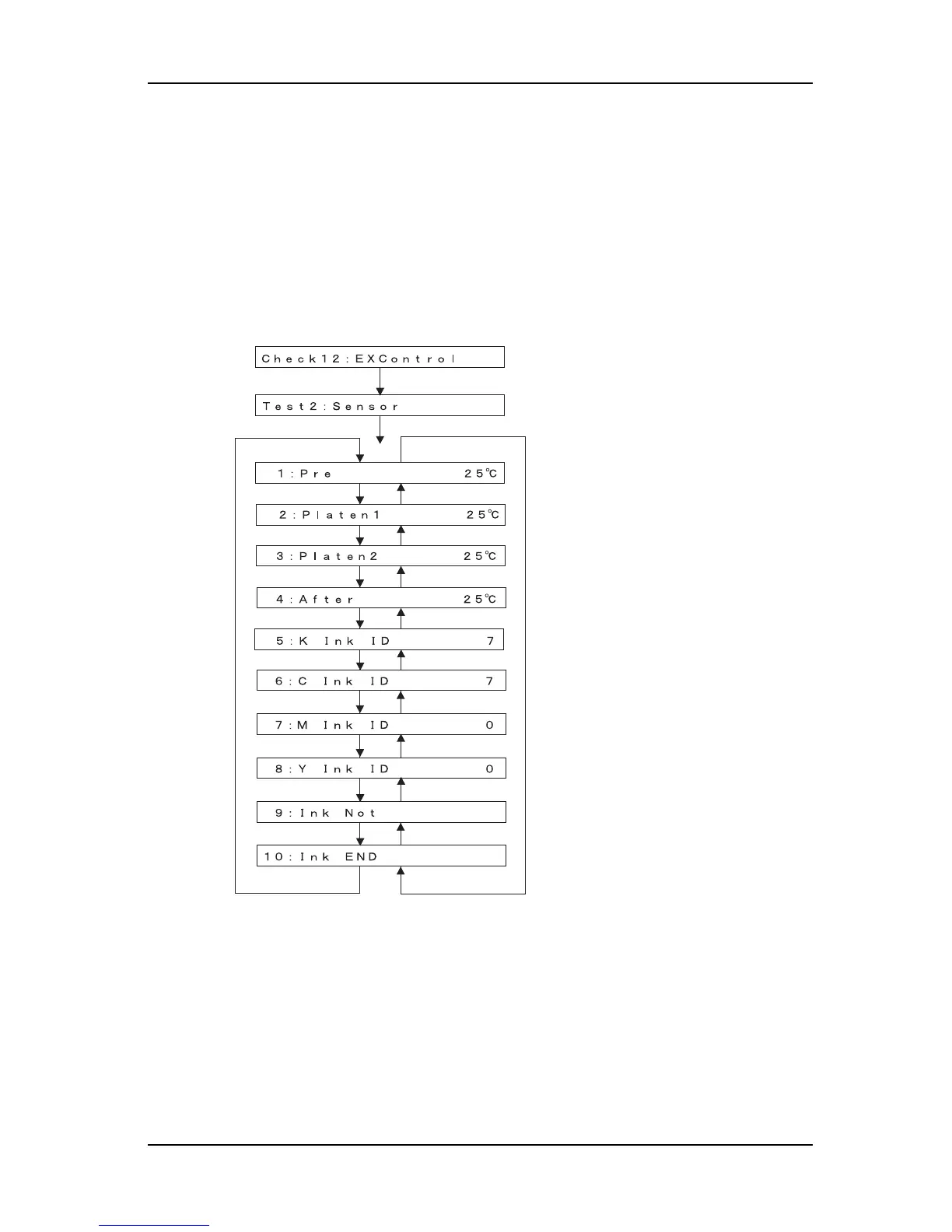

Pre-heater condition display
Platen Heater1 condition display
Platen Heater2 condition display
After Dryer heater condition display
K Ink ID condition display
C Ink ID condition display
M Ink ID condition display
Y Ink ID condition display
Ink NOT sensor condition display
Ink END sensor condition display
