ValueJet 1304 Service manual
4-109 AP-74109 Rev 1.1

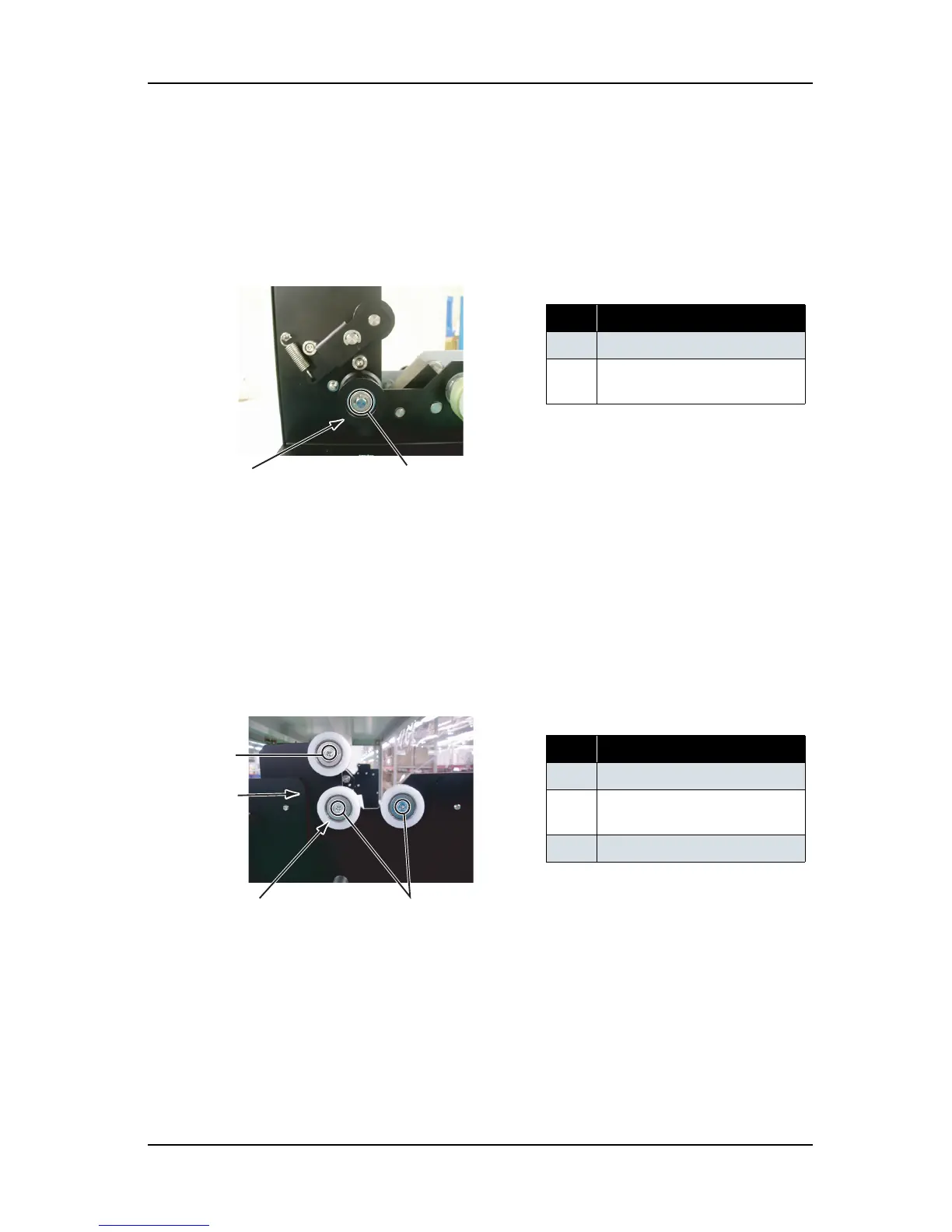

4.12.4 Replacing Scroller
(1) Replacing Holding Roller
1. Remove the E ring (E-6) that retains the holding roller using a driver.
2. Remove the holding roller and the bearing.
3. Fit the E ring (E-6) to the holding axis using a long-nose pliers.
(2) Replacing Holding Roller L
1. Remove the screw that retains the holding roller L on the scroller receiver (left).
2. Remove the scroller receiver (left).
3. To reassemble the unit, reverse the removal procedure.
表 4-128
No. Part name
1 holding roller
2 E ring that retains the holding
roller (E-6)
表 4-129
No. Part name
1 Holding roller L
2 Screws that retain the holding
roller L
3 Scroller receiver (left)
1
2
1
2
2
3
