ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-18

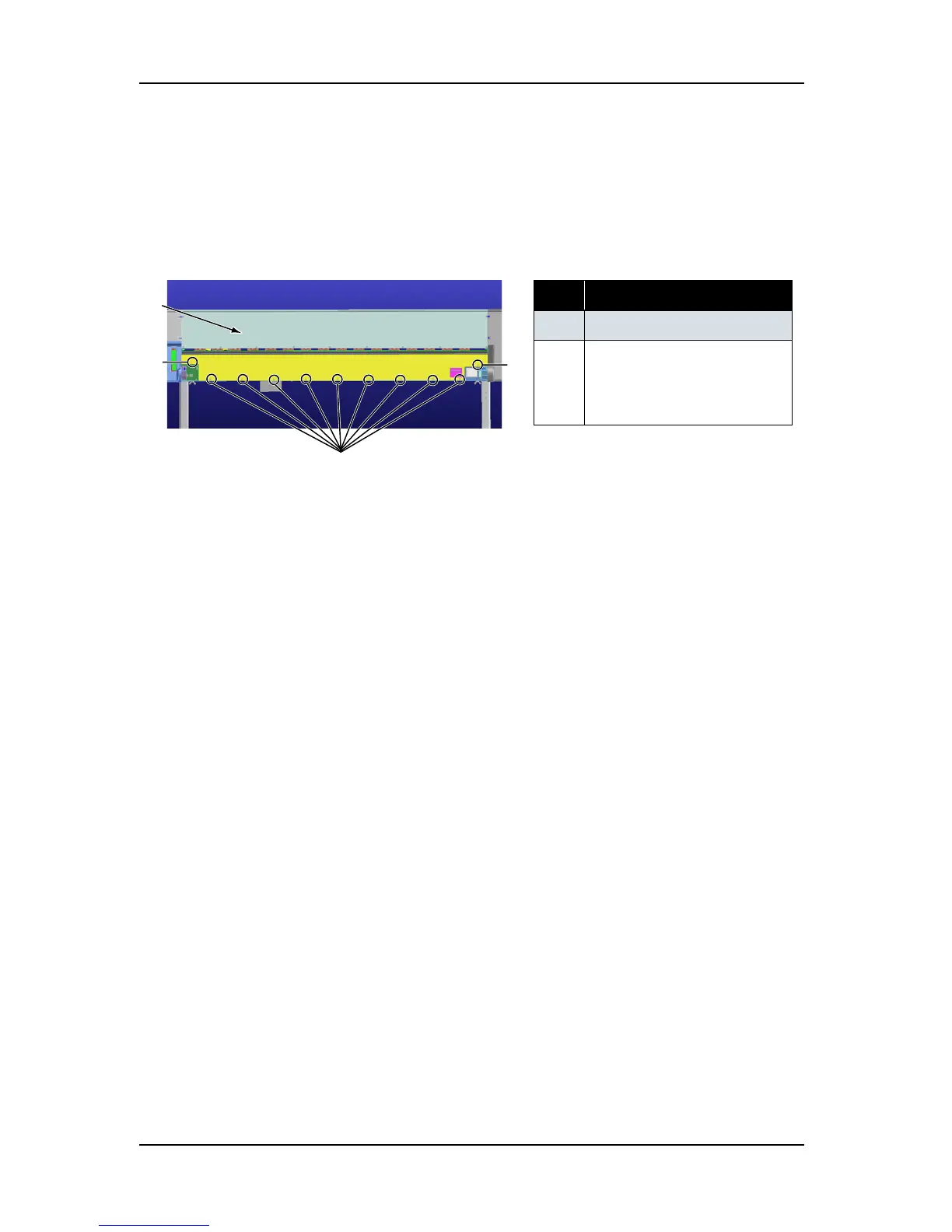

4.2.8 Removing Media Guide R2
1. Remove the media guide R2-retaining screw (tapping screw M3 × 6, S tight cup: 11). The number of
screws varies depending on models.
2. Remove the media guide R2 by pulling it backward.
3. Replace the parts inside the product.
4. To reassemble the unit, reverse the removal procedure.
表 4-15
No. Part name
1 Rear cover
2
Media guide R2-retaining
screw
(tapping screw M3
× 6, S tight
cup)
1
2
2
2
