MUTOH ValueJet User Manual

ValueJet 1304 Service manual
AP-74109 Rev 1.1 7-36

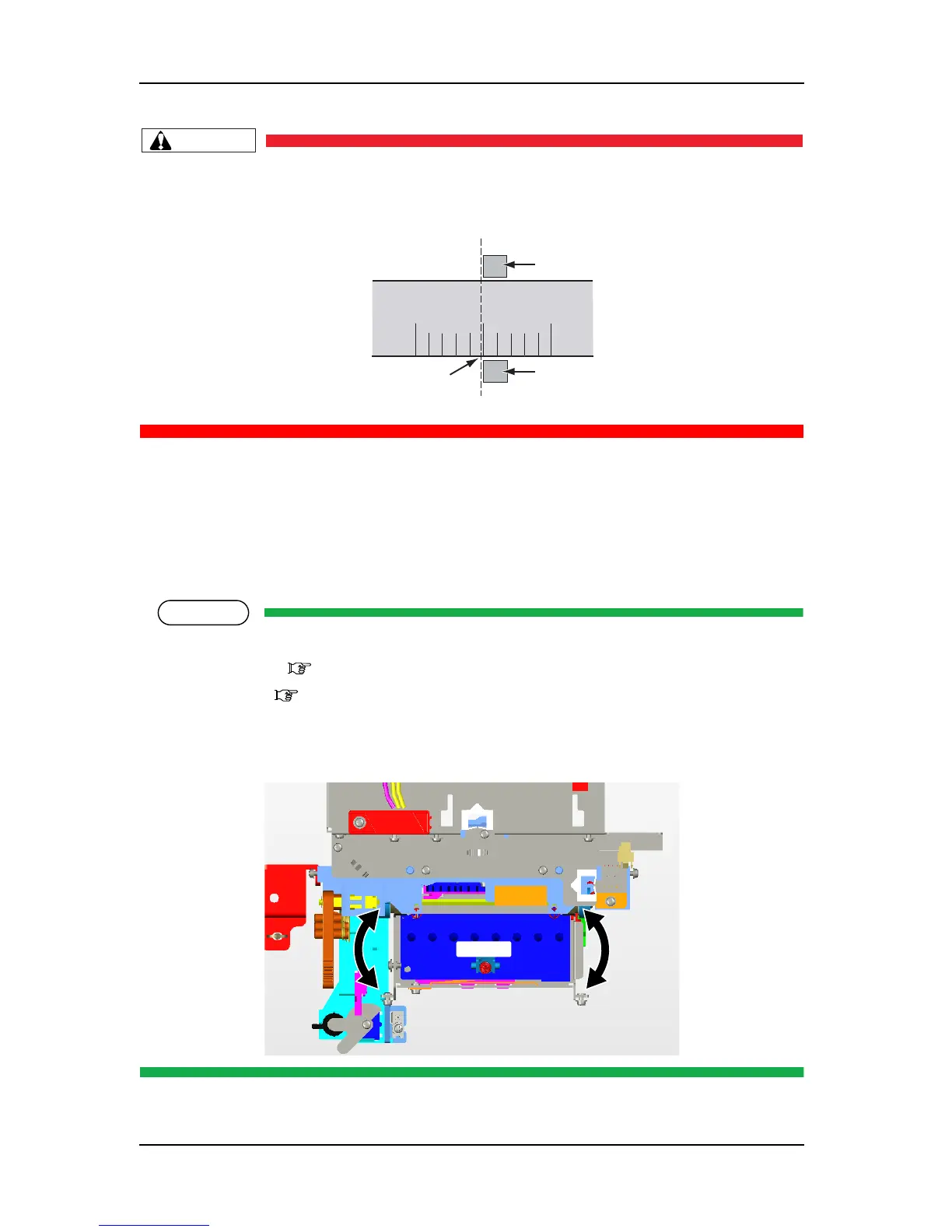

CAUTION
To align the graduation alignment pointer with the center line of driven pulley base, align the
left side (viewed from the front of the printer) of the pointer with the center line as shown
below.
7.7 Head Alignment (Horizontal Height)
This section describes the procedure to adjust the head slant in horizontal direction.
When you have removed and installed the head assembly, such as for head assembly replacement, always
adjust the head slant and depth following the steps below.
NOTE
Before starting adjustment, remove the following parts.
• CR board cover: "4.6.1 Replacing Print Head" p.4-61
• Cable cover R: "4.6.1 Replacing Print Head" p.4-61
Adjust the horizontal height of the head alignment before adjusting the vertical alignment slant of
head alignment.
In this procedure, align the print head in the direction shown below.
Align them like this.
Alignment pointer
Alignment pointer
L side R side
Print head

MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
