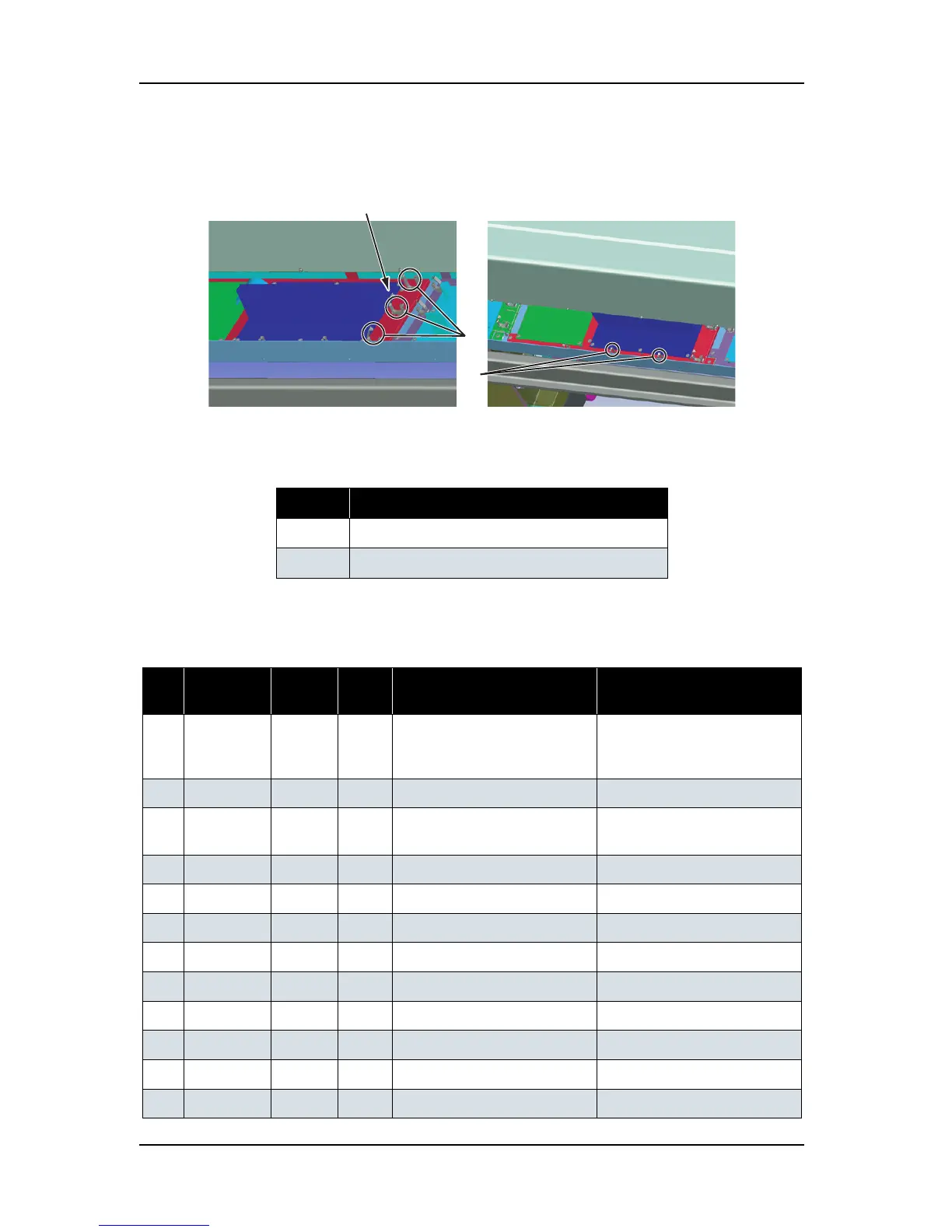

4.3.5 Replacing HEATER RELAY board assembly
1. Remove the cable from the five clamps on the top of HEATER CONT board bracket.
2. Remove the following connectors from the HEATER RELAY board assembly.
表 4-33
No. Part name
1 HEATER CONT board bracket
2 Clamp
Table 4-34 Connectors to HEATER RELAY board assembly
No. Connector
No.
# of
pins
Color Connect to Remarks
1 J1 2 White HEATER CONT board Connected to J23 by using AC
cable assembly between CNT -
RLY.
2 J2 7 White Platen heater 1
3 J3 FFC - HEATER CONT board
assembly
Connected to J6 by using tape
wire between CNT - RLY.
4 J4 2 White AC-IN
5 J5 7 White Platen heater
6 J6 2 White AC-OUT
7 J7 3 White Pre-heater 1
8 J8 3 White Pre-heater 2
9 J9 4 White After-heater
10 J10 2 Blue Cooling fan
11 J12 2 White Platen thermistor 1
12 J13 2 Black Platen thermistor 2
2
2
1
