MUTOH ValueJet User Manual

ValueJet 1304 Service manual
4-35 AP-74109 Rev 1.1

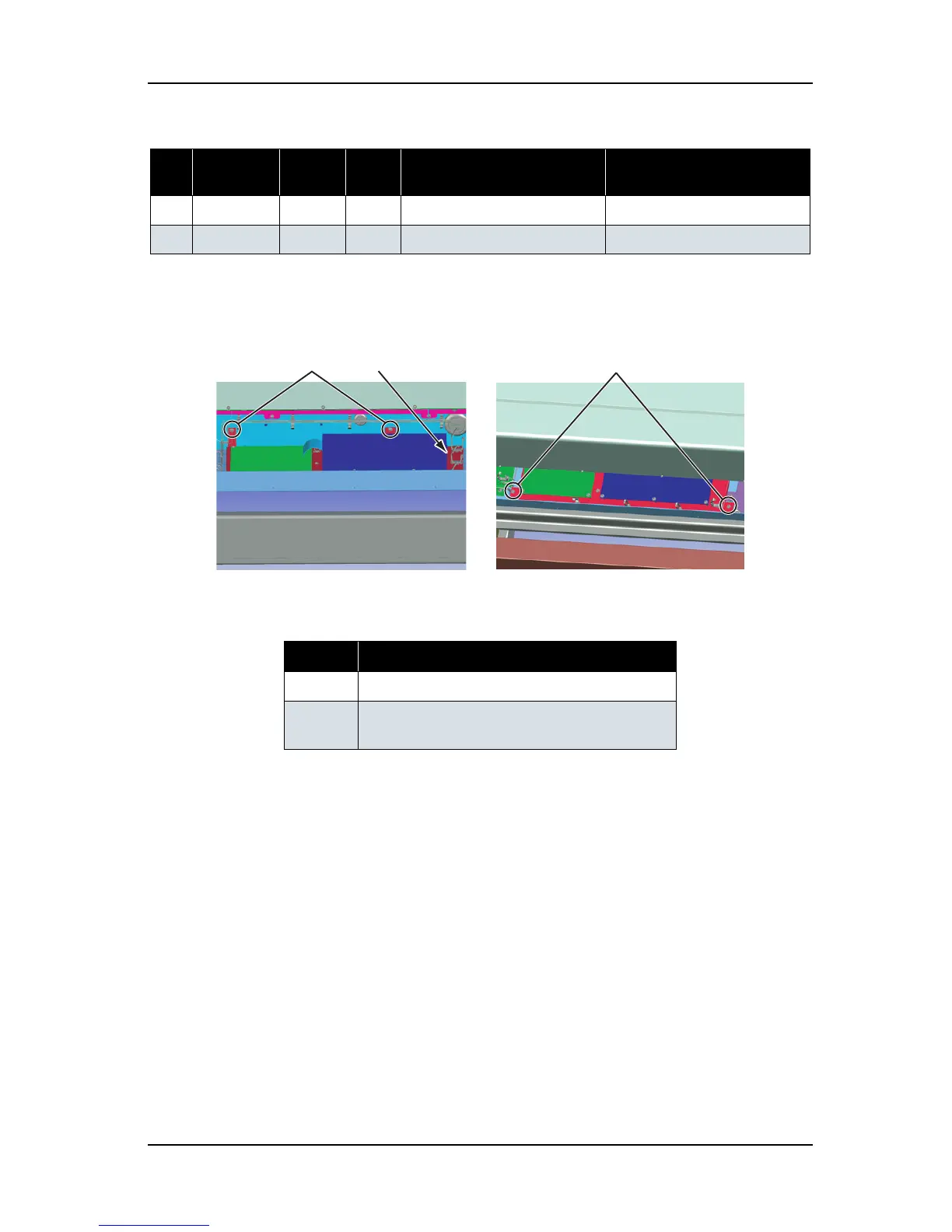

3. Replace the AC cable assembly between CNT-RLY, and RLY_AC cable assembly.
4. Remove the HEATER CONT board bracket-retaining screws (tapping screw M3
× 6 tight cup: 4), and
remove the board bracket.
13 J15 2 Red Pre-thermistor
14 J17 3 White After-thermistor
表 4-35
No. Part name
1 HEATER CONT board bracket
2 HEATER CONT board bracket-retaining screw
(tapping screw M3
× 6 tight cup: 4)
Table 4-34 Connectors to HEATER RELAY board assembly
No. Connector
No.
# of
pins
Color Connect to Remarks
2
2
1

MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
