MUTOH ValueJet User Manual

ValueJet 1304 Service manual
4-39 AP-74109 Rev 1.1

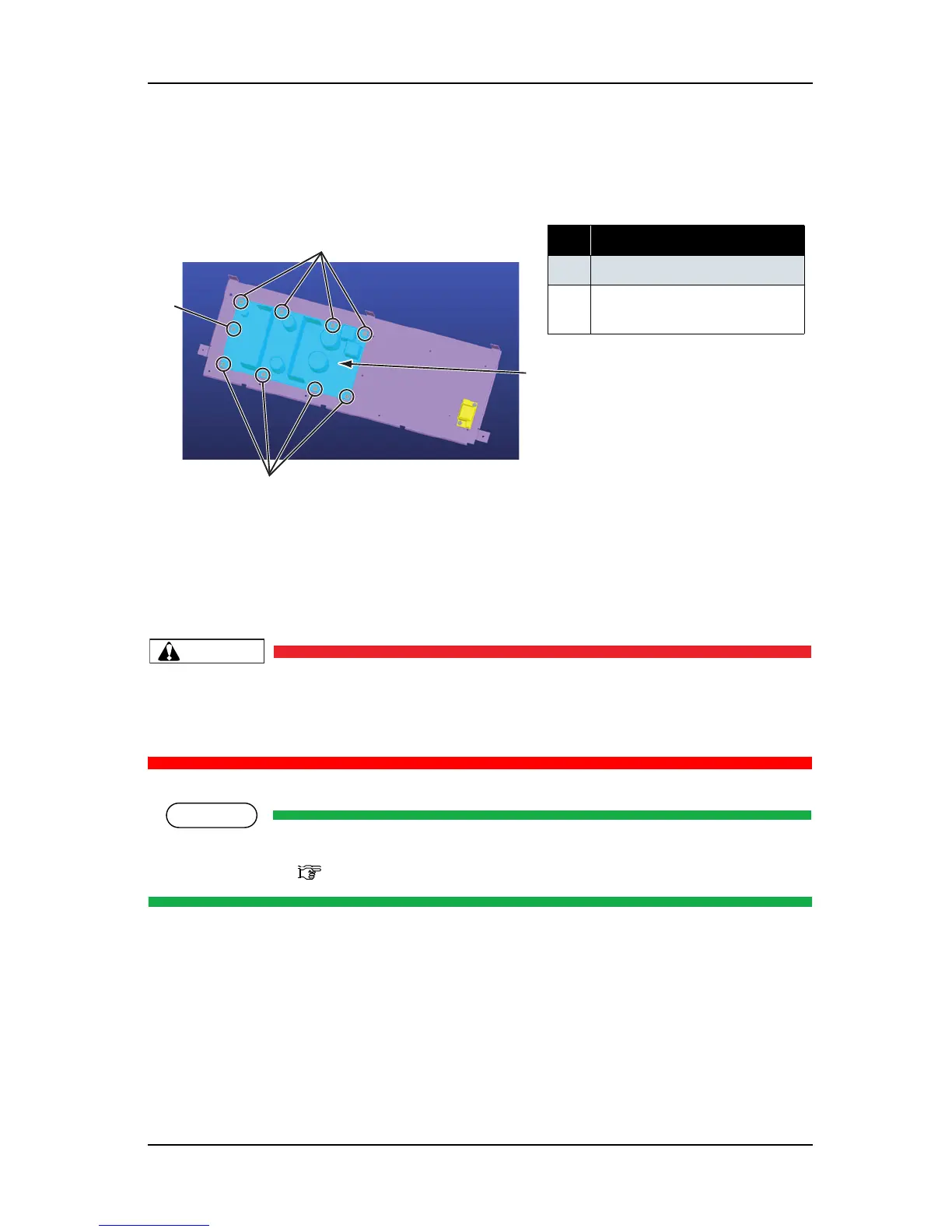

6. Remove the power board assembly-retaining screw (cup screw M3 × 6 white: 9).
7. Replace the power board assembly.
8. To reassemble the unit, reverse the removal procedure.
4.3.7 Replacing Fuse
CAUTION
Use the Fuse which specification matches as follows.
• Specification: 250V 15A, φ10.31mm
× 38.1mm
• Double pole/ Neutral Fusing
NOTE
Before replacing fuse, remove the following parts.
• Media guide R2:
"4.2.8 Removing Media Guide R2" p.4-17
表 4-42
No. Part name
1 Power board assembly
2
Power board screw
(cup screw M3
× 6 white)
1
2
2
2
