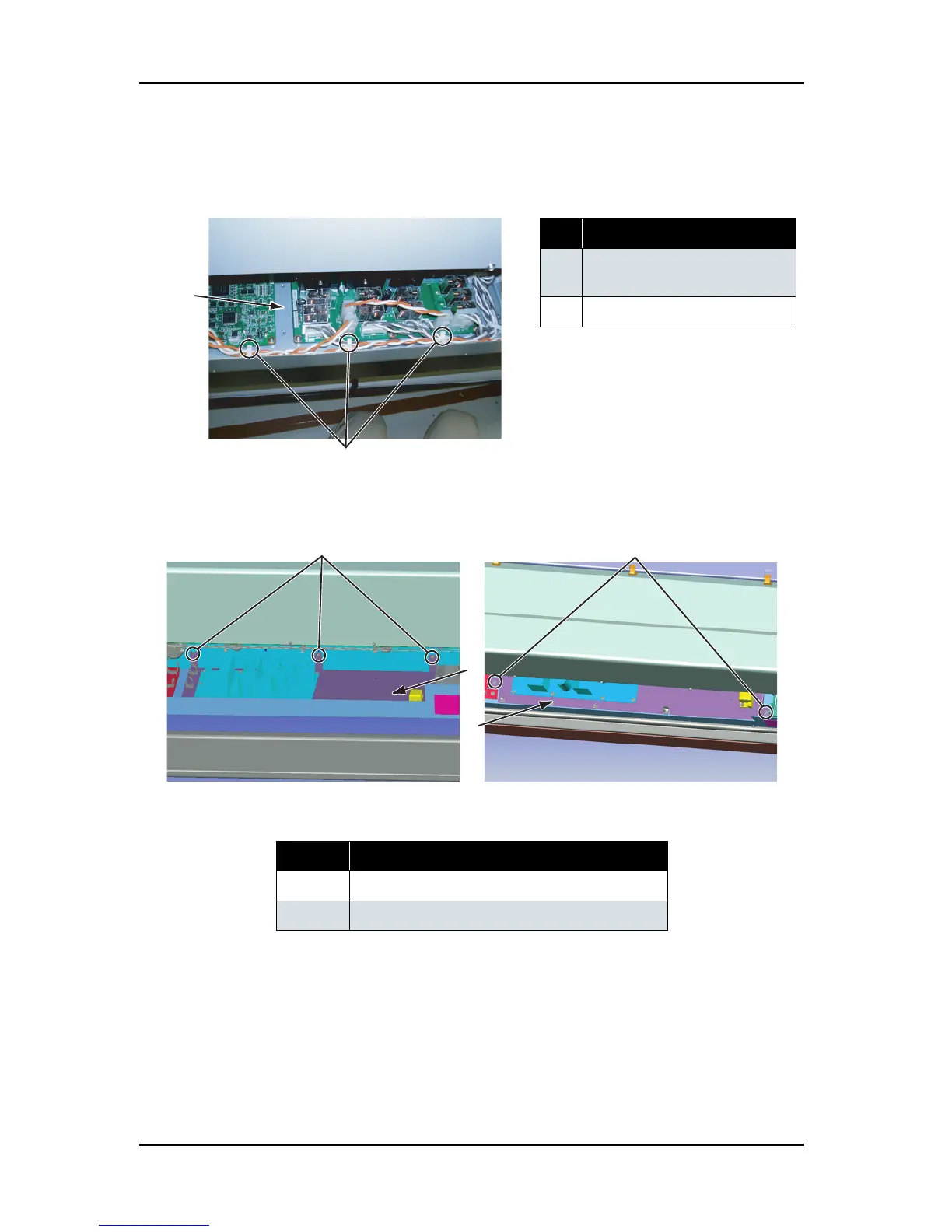

4. Remove the three cables from clamp of the front side of HEATER-RELAY board bracket.
5. Remove the power board bracket-retaining screw (tapping screw M3
× 6 S tight cup).
表 4-40
No. Part name
1 HEATER-RELAY board
bracket
2
Clamp
表 4-41
No. Part name
1 Power board bracket
2 Screw retaining power board bracket
2
1
1
1
2
2
