ValueJet 1304 Service manual
4-105 AP-74109 Rev 1.1

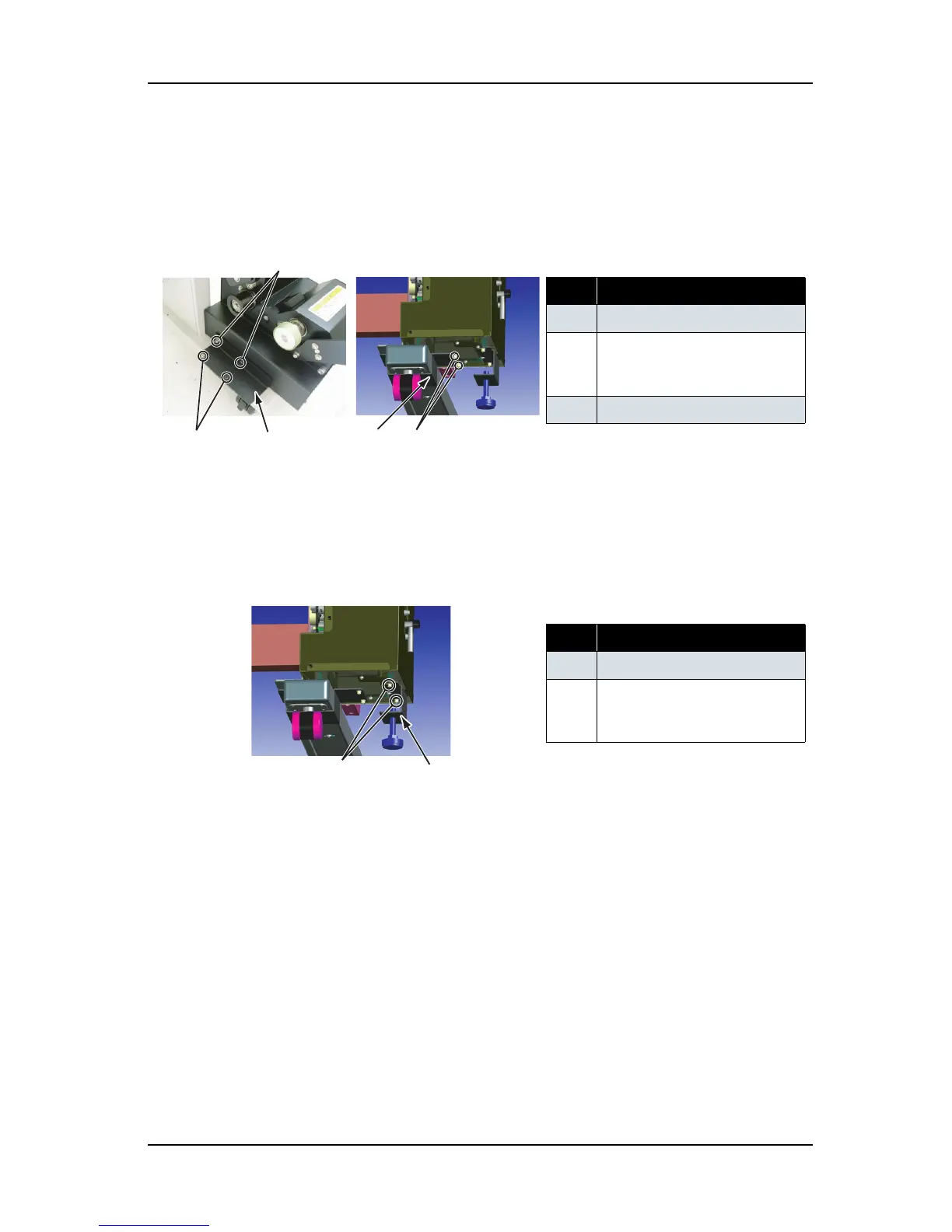

4.12.2 Removing Take Up Unit Fixing Plate
1. Remove the screws (hexagon socket head bolt M4 × 10: 4 pieces) that retain the take up unit fixing plate
on the origin side.
2. Remove the take up unit fixing plate.
3. Remove the screws (hexagon socket head bolt M4
× 10: 4 pieces) that retain the adjuster attachment hook.
4. Remove the adjuster attachment hook.
表 4-121
No. Part name
1
Take up fixing bracket
2 Screw that retains the take up
unit fixing plate (hexagon socket
head bolt M4
× 10)
3
Take up unit fixing plate
表 4-122
No. Part name
1
Take up unit fixing plate
2 Screw that retains the take up
unit fixing plate (hexagon socket
head bolt M4
× 10)
1
2
3
2
2
1
2
