MUTOH ValueJet User Manual

ValueJet 1304 Service manual
5-25 AP-74109 Rev 1.1

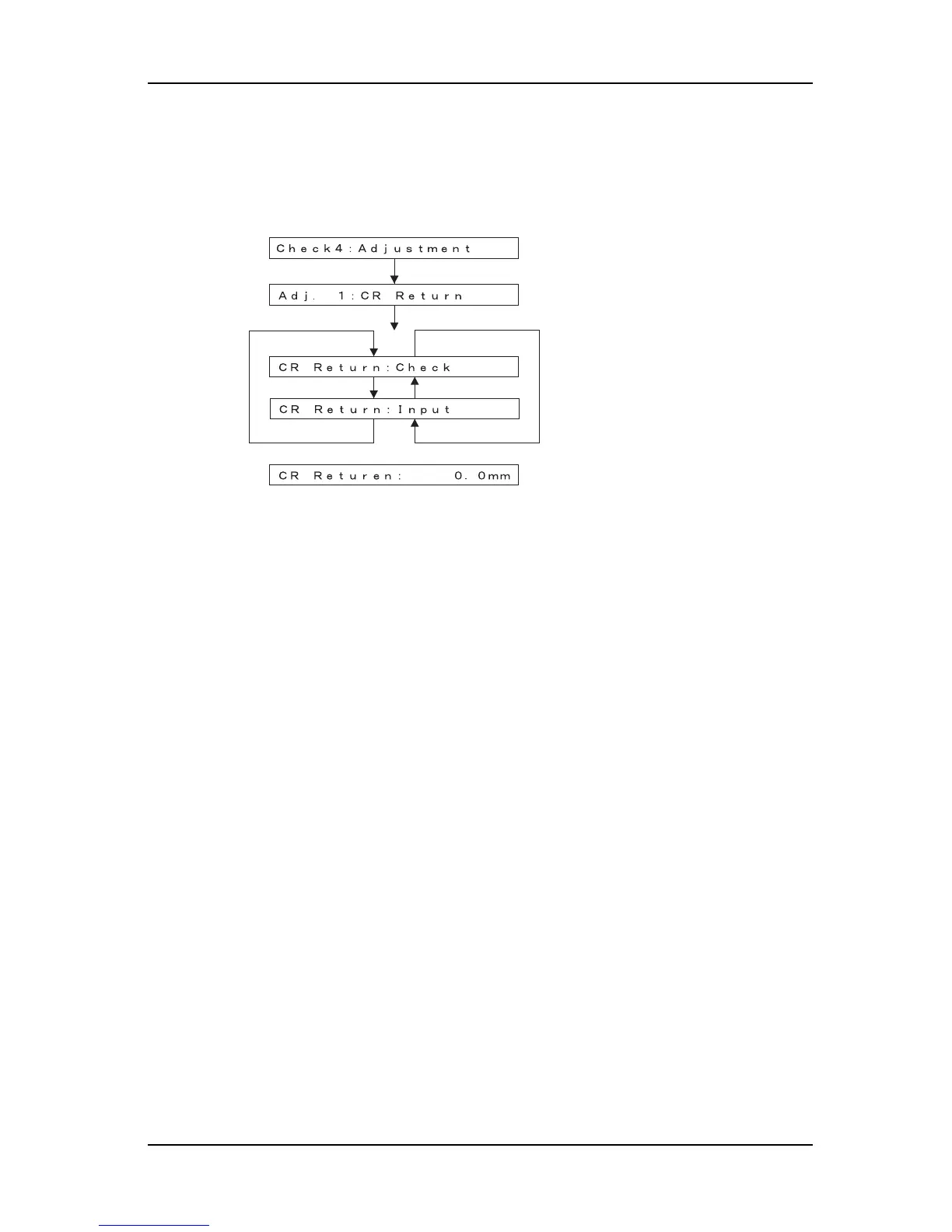

5.7.1 CR Return Position Adjustment Menu
In this menu, you can adjust the CR return position (near end position of the carriage) on the origin side.
“CR Return: Check” moves the carriage three times..
“CR Return: Input” adjusts the return position of the carriage.
Confirms CR return position
Adjusts CR return position
Press [Setting/value +] or [Setting/value -]
to change the setting value.
(Range: -1.0 - 1.0mm, 0.1mm increment)
[<] key
[<] key
[>] key
[>] key

MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
