MUTOH ValueJet User Manual

ValueJet 1304 Service manual
5-33 AP-74109 Rev 1.1
5.7.5 Voltage Adjustment

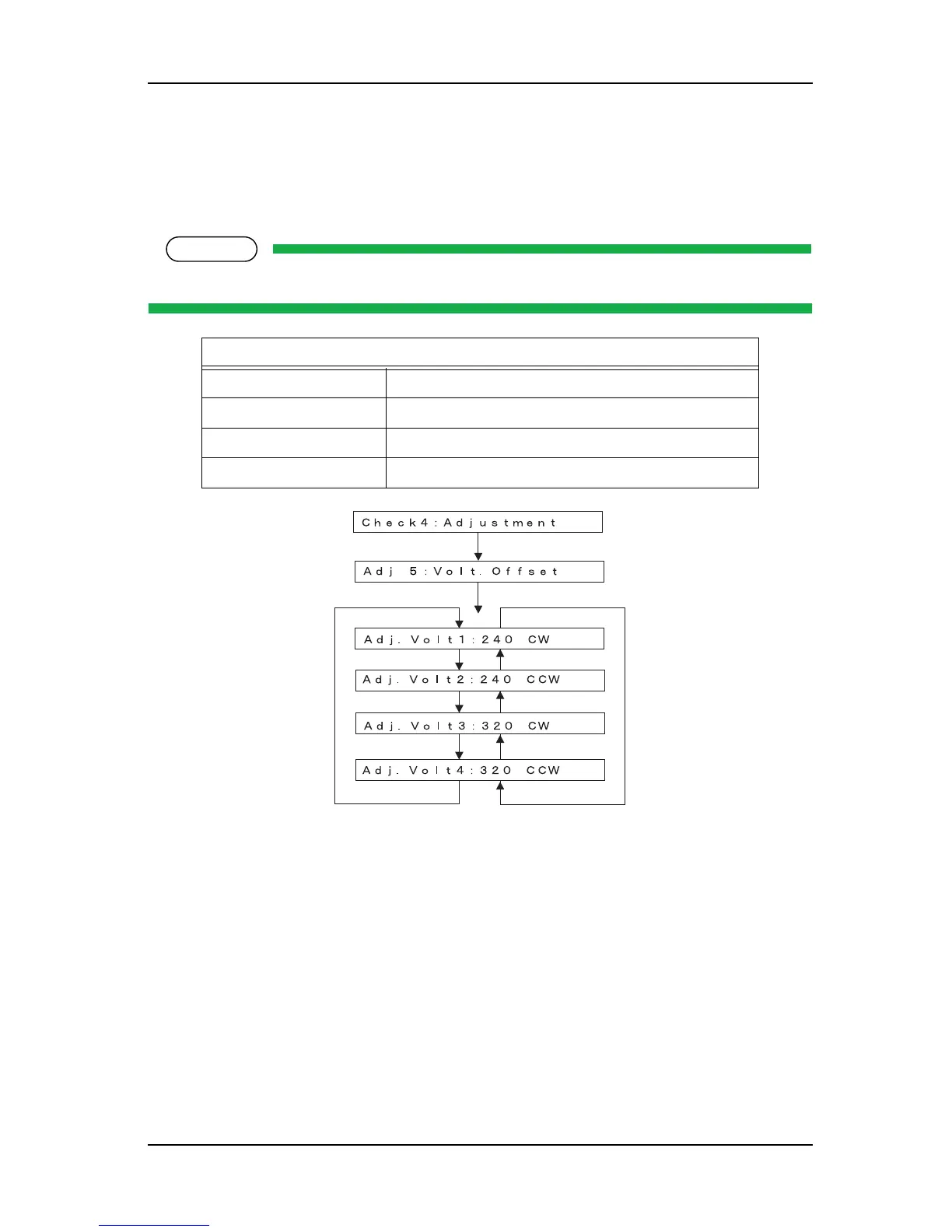

This menu is used to adjust the voltage of VSD 3 small dot so that the print position will be corrected.
Check the small dot is on the center of the middle dots in the CR direction.
When adjusting, change the voltage up to 5V (0.1V increment) considering the current voltage as a basis.
NOTE
The default value is set a proper one so that genuine ink works fine.
Items Contents
240 CW Adjusts the VSD 3-S at 240 cps / CW printing.
240 CCW Adjusts the VSD 3-S at 240 cps / CCW printing.
320 CW Adjusts the VSD 3-S at 320 cps / CW printing.
320 CCW Adjusts the VSD 3-S at 320 cps / CCW printing.
[<] key
[>] key
[<] key
[>] key
[<] key
[<] key
[>] key
[>] key
