MUTOH ValueJet User Manual

ValueJet 1304 Service manual
AP-74109 Rev 1.1 5-34

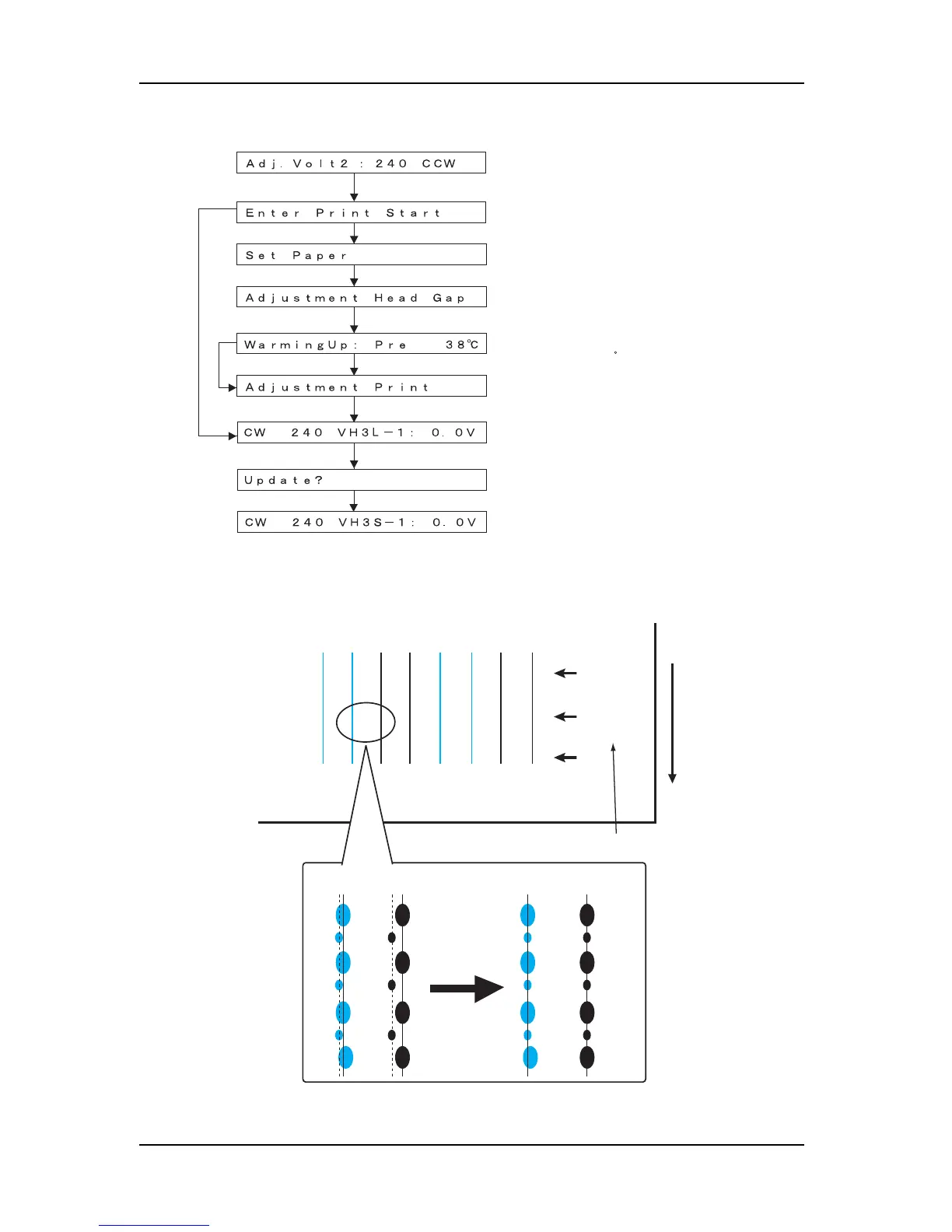

The following figure shows a case for 240 CW.
Print pattern: 240 CW
[Enter] key
If media is not set
If head gap is PG-Low
Display during adjustment printing
Press [Setting/Value+] or [Setting/Value-] key
to change unit to pulse
Volt range: -5V to 5V (0.1V)
VH3L-1 to VH3L-4
Press [Setting/Value+] or [Setting/Value-] key
to change unit to pulse
Volt range: -5V to 5V (0.1V)
VH3S-1 to VH3S-4
Media set
Change head gap (to PG-Low)
If the temperature of the pre-heater and
platen heater is below 42 C
* Pressing [Cancel] key stops control and start printing
Finish warm-up
Finish printing
CW
240CPS
2B 2A 1B
1A
2B 2A
1B 1A
C
B
A
