MUTOH ValueJet - Replacement of Maintenance Section Components; Removing Maintenance Base Assembly

ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-72
4.7 Replacement of Maintenance Section Components
4.7.1 Removing Maintenance Base Assembly
NOTE
• When replacing the parts inside the maintenance assembly, make sure to clear the following
counter parameters.
• “Waste Ink” or “Cleaning”: "6.3.1 Counter Display Menu" p.6-4
• Before replacing the parts in the pump cap assembly, remove the following parts.
• R side cover: "4.2.1 Removing R Side Cover" p.4-6
• Ink holder cover: "4.2.4 Removing Ink Holder (I/H) Cover" p.4-12
• Scroller receiver: "4.2.9 Removing Scroller Receiver (L, R)" p.4-18

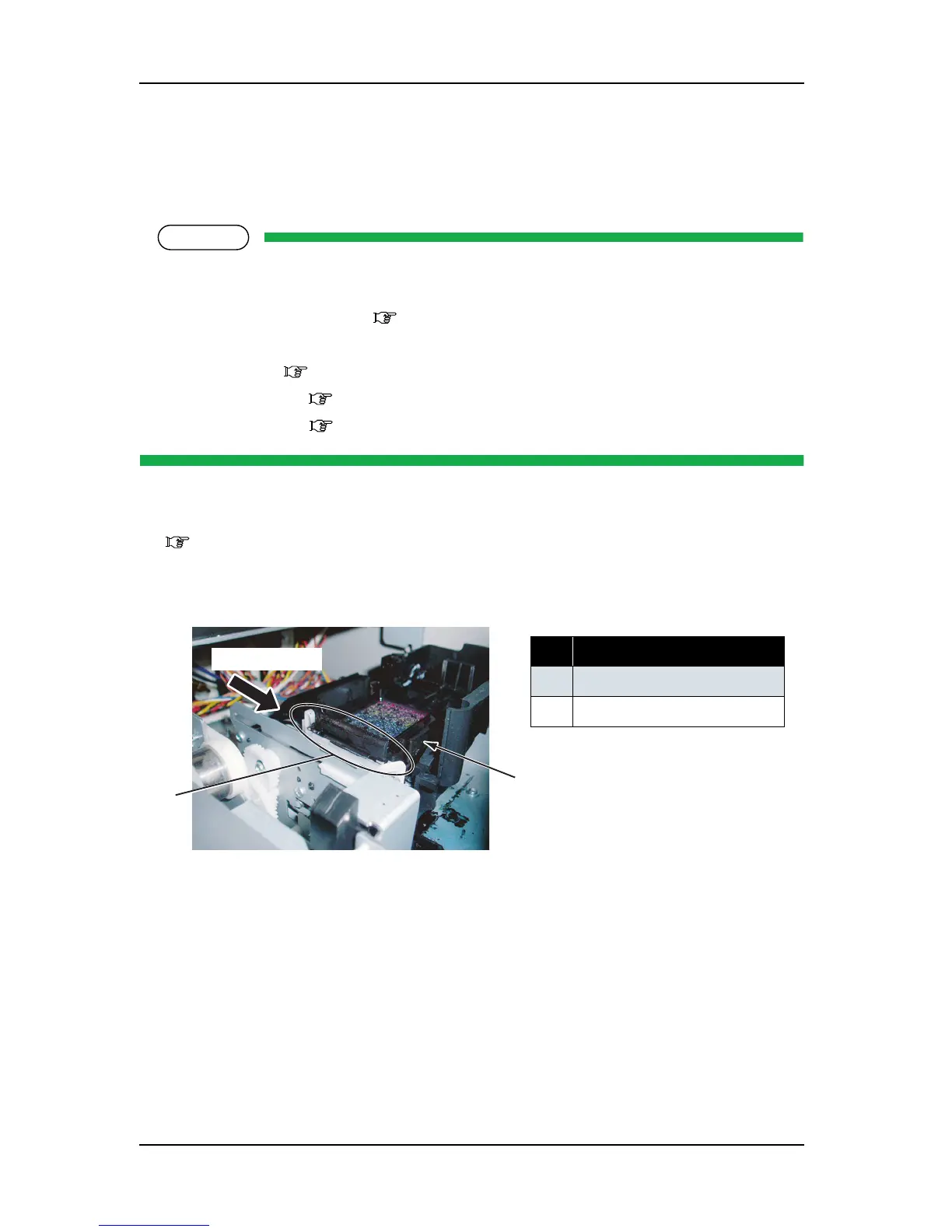

1. Enter “CR maintenance confirmation” mode using operation panel, then turn the printer power off.
Confirm that the cleaner head is positioned in the front side.
"Operation Manual"
表 4-81
No. Part name
1 Pump cap assembly
2
Cleaner head
1
2
Pull near side
