ValueJet 1304 Service manual
4-103 AP-74109 Rev 1.1

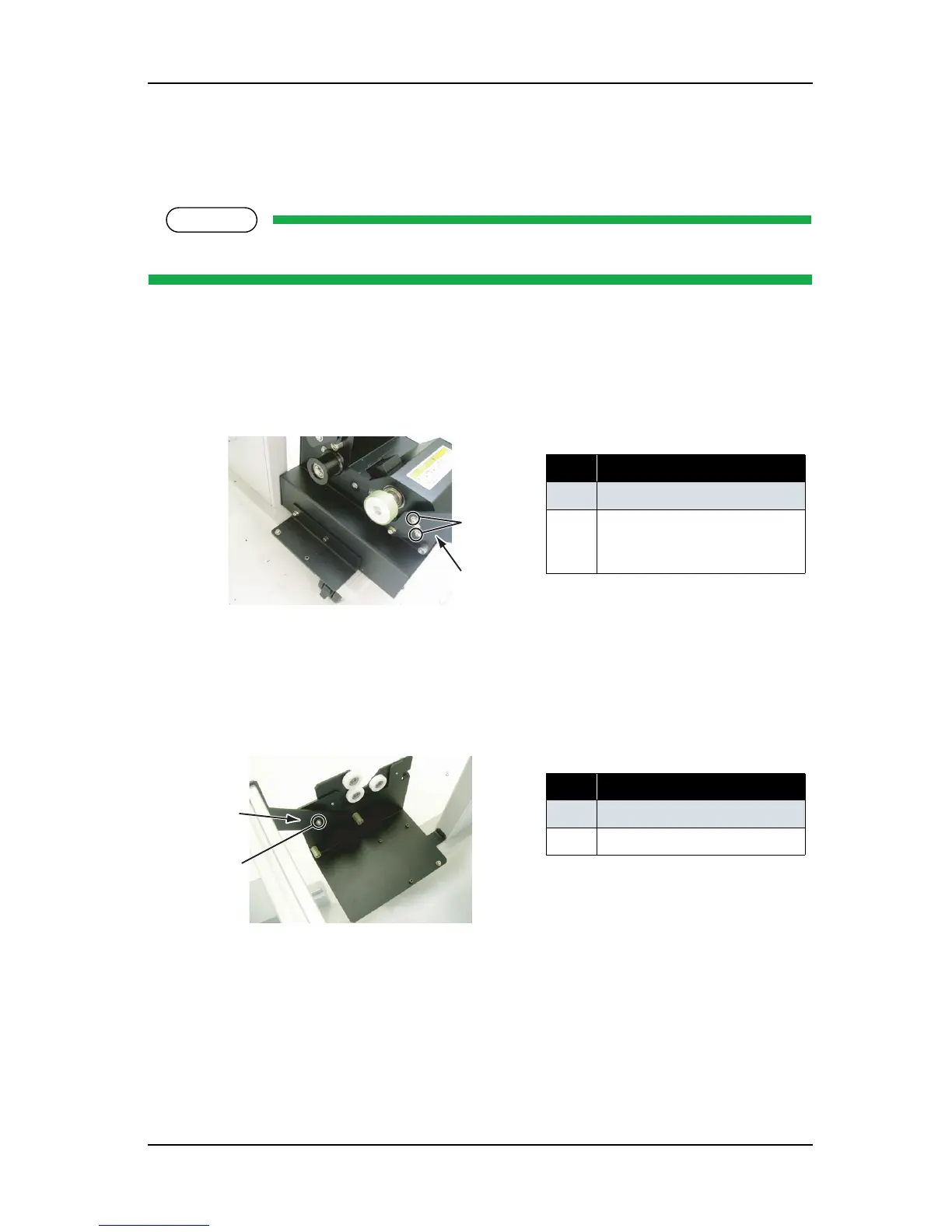

4.12 Replacing Take Up Unit
This section describes the procedure to replace the Take Up unit.
NOTE
Have two or more people to replace the part of take up unit.
4.12.1 Removing Tension Arm
1. Remove the two screws (hexagon socket pan flat head M4 × 8) retaining tension arm R.
2. Remove the tension arm L from tension fulcrum shaft.
3. Remove the tension arm.
4. To reassemble the unit, reverse the removal procedure.
表 4-119
No. Part name
1
Tension arm R
2 Screw that retains the Tension
arm R (hexagon socket pan flat
head M4
× 8)
表 4-120
No. Part name
1
Tension arm L
2 Tension fulcrum shaft
1
2
1
2
