MUTOH ValueJet User Manual

ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-78
5. Attach the maintenance base 1 to where it is.
6. To reassemble the unit, reverse the removal procedure.
4.7.3 Replacing Cleaner Head (Cleaning Wiper)
NOTE
Before replacing the cleaner head, remove the following covers.
• R side cover: "4.2.1 Removing R Side Cover" p.4-6

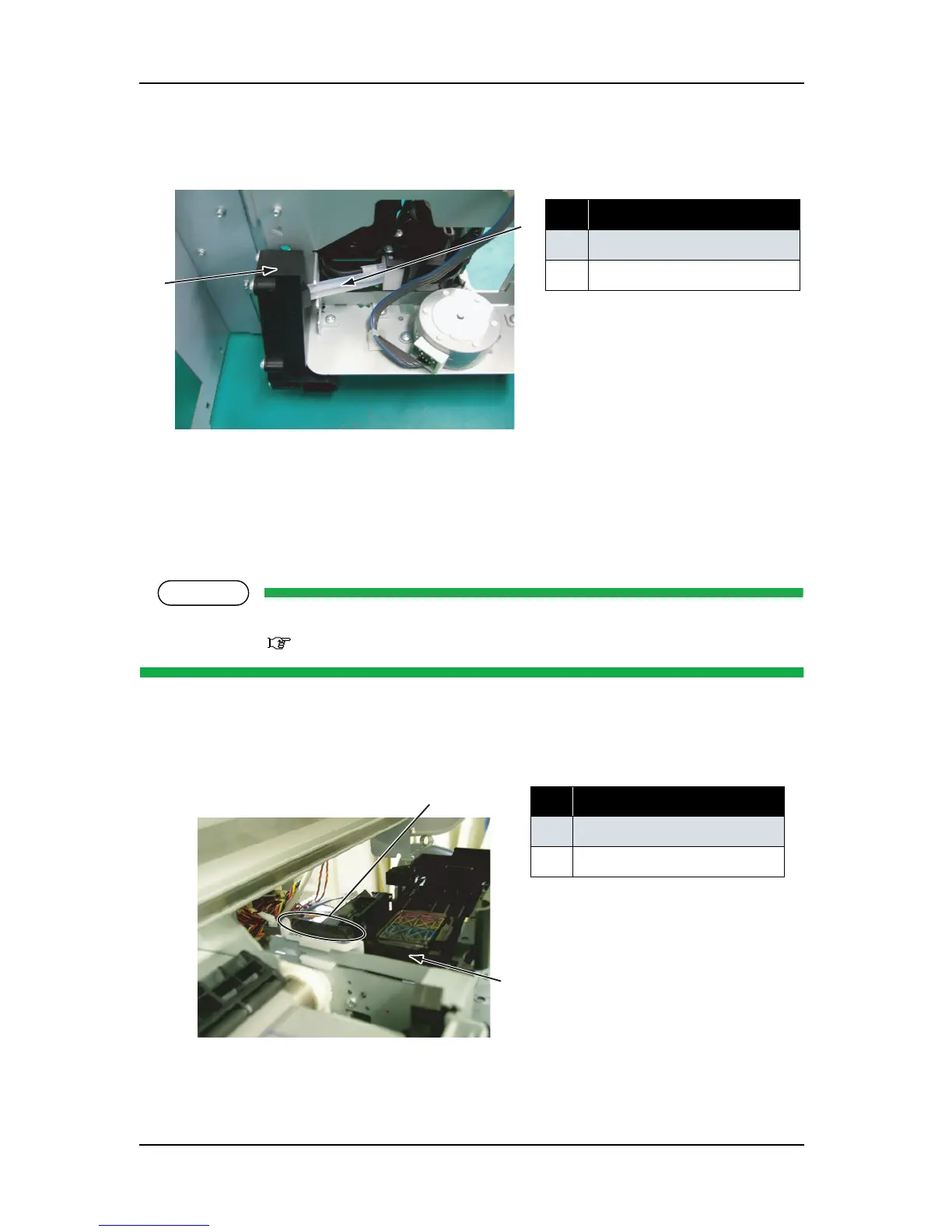

1. Remove the cleaner head from the cleaner head by using tweezers, and lift it from the holder upward.
表 4-89
No. Part name
1 Tube
2
Drain guide 2
表 4-90
No. Part name
1 Pump cap assembly
2
Cleaning wiper
1

1
2
