MUTOH ValueJet User Manual

ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-118

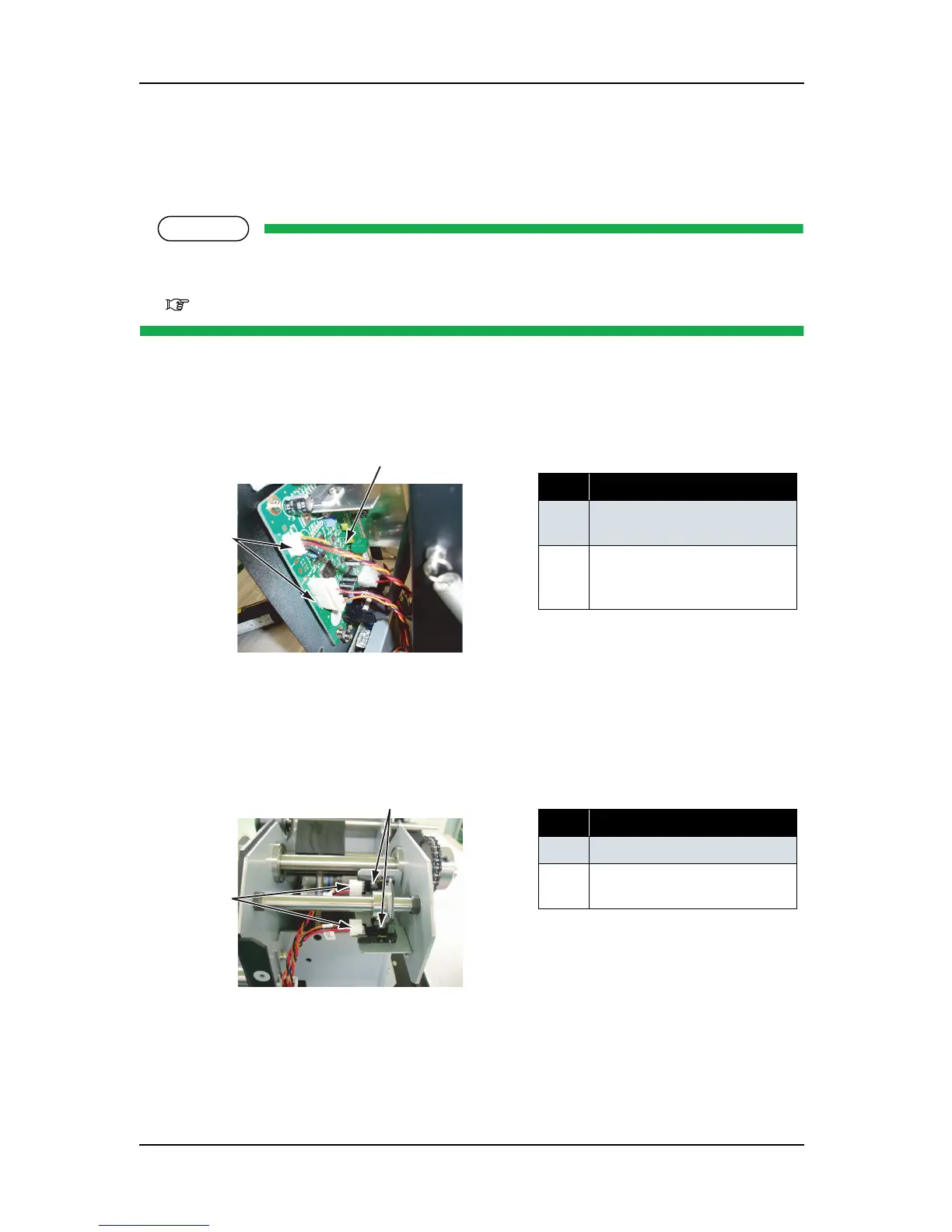

4.12.6 Replacing CR_HP Sensor, Lever Sensor
(1) Replacing W_ON Sensor Relay Assembly, W_OFF Sensor Relay Assembly
NOTE
Remove the screws that retains the board chassis before replacing W_ON sensor relay assembly or
W_OFF sensor relay assembly.
"(1) Removing Board Chassis" p.4-109
1. Remove the cable of the W_ON sensor relay assembly and W_OFF sensor relay assembly from the
connector to the VJ take up unit CNT board assembly.
2. Detach the W_ON sensor relay assembly and the W_OFF sensor relay assembly from the CR_HP sensor
and the lever sensor.
3. Replace the W_ON sensor relay assembly and W_OFF sensor relay assembly
4. To reassemble the unit, reverse the removal procedure.
表 4-144
No. Part name
1 VJ take up unit CNT board
assembly
2 Cable of W_ON sensor relay
assembly and W_OFF sensor
relay assembly
表 4-145
No. Part name
1 CR_HP sensor, lever sensor
2 W_ON sensor relay assembly,
W_OFF sensor relay assembly
1
2
1
2
